Home >> Jaguar >> 2011 >> XF (X250) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connectors >> C11-A - C23-L >> C23-G

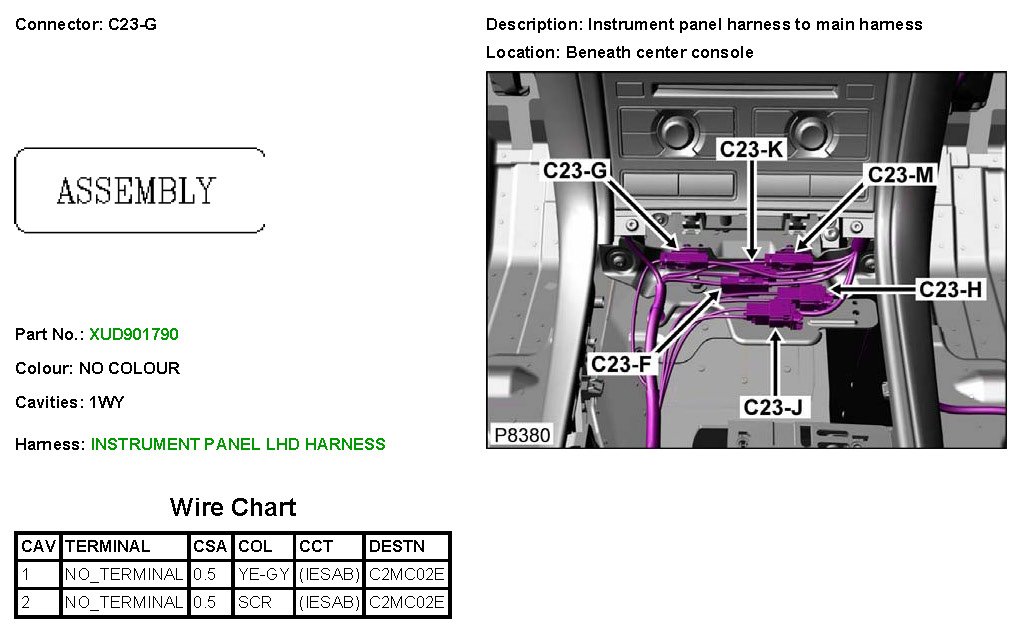

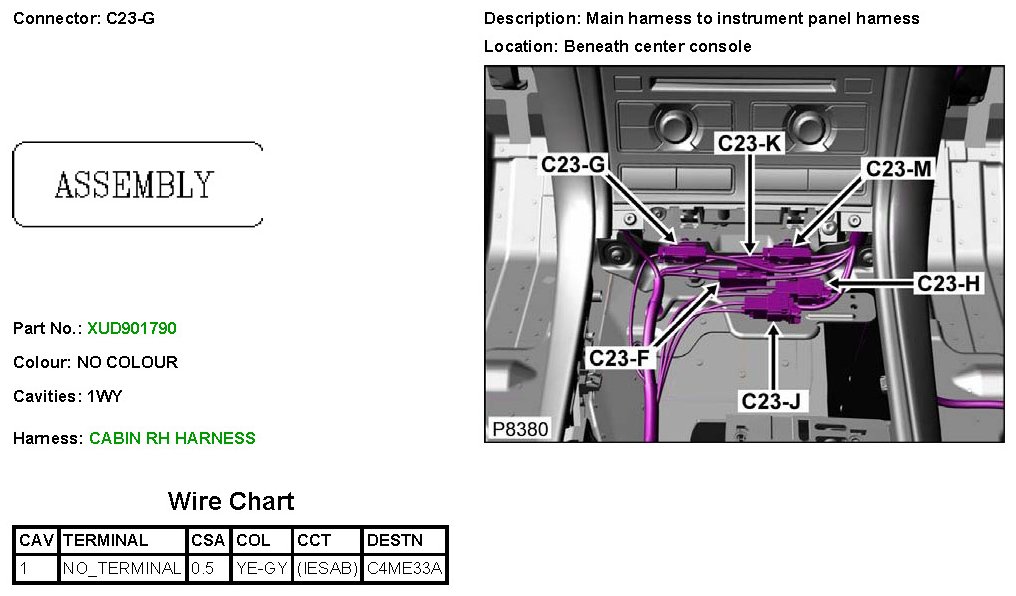

C23-G

C23-G

C23-G:

C23-G:

C23-G:
