Home
>>
Jaguar
>>
2011
>>
XF (X250) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C3A-A - C3HS01A
>>

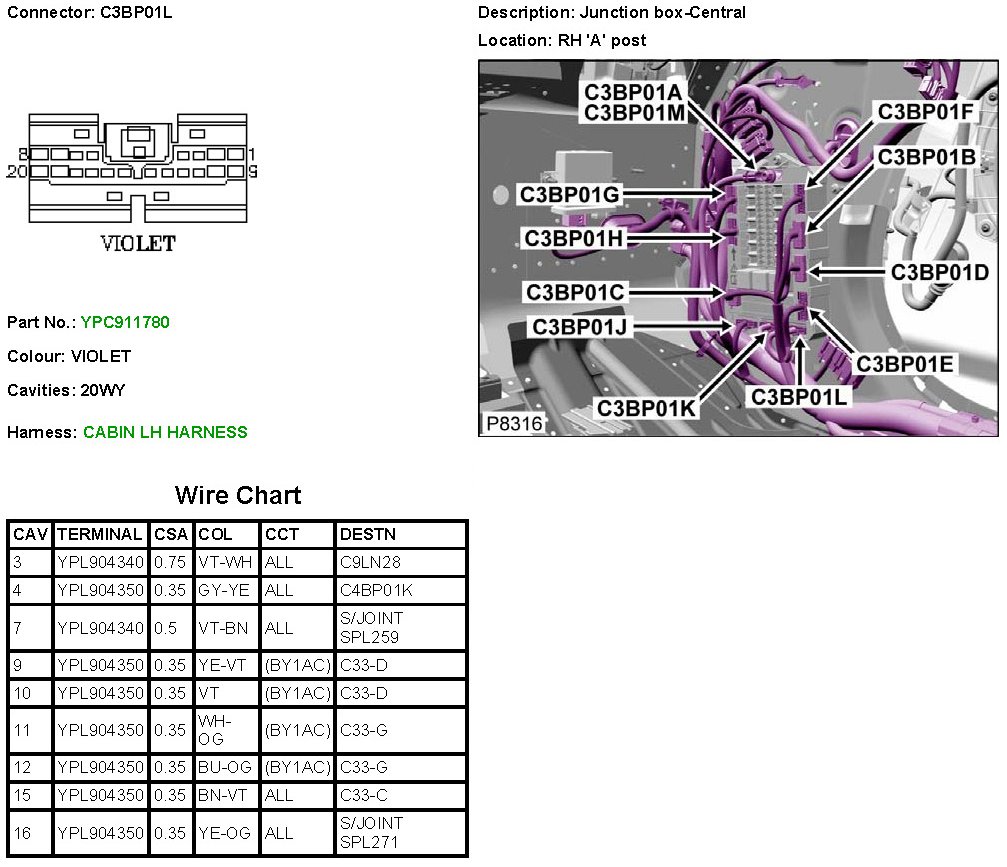

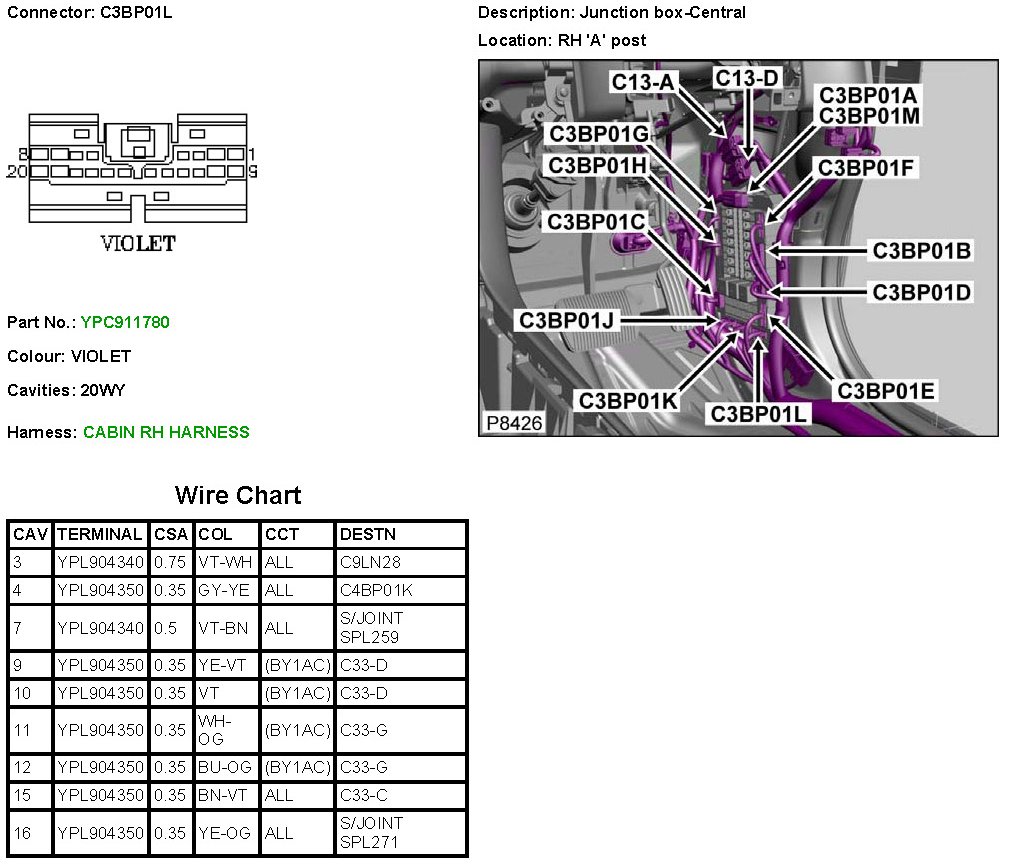

C3BP01L
C3BP01L
C3BP01L
C3BP01L:
C3BP01L:
