Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XF (X250) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C43-A - IL012
>>

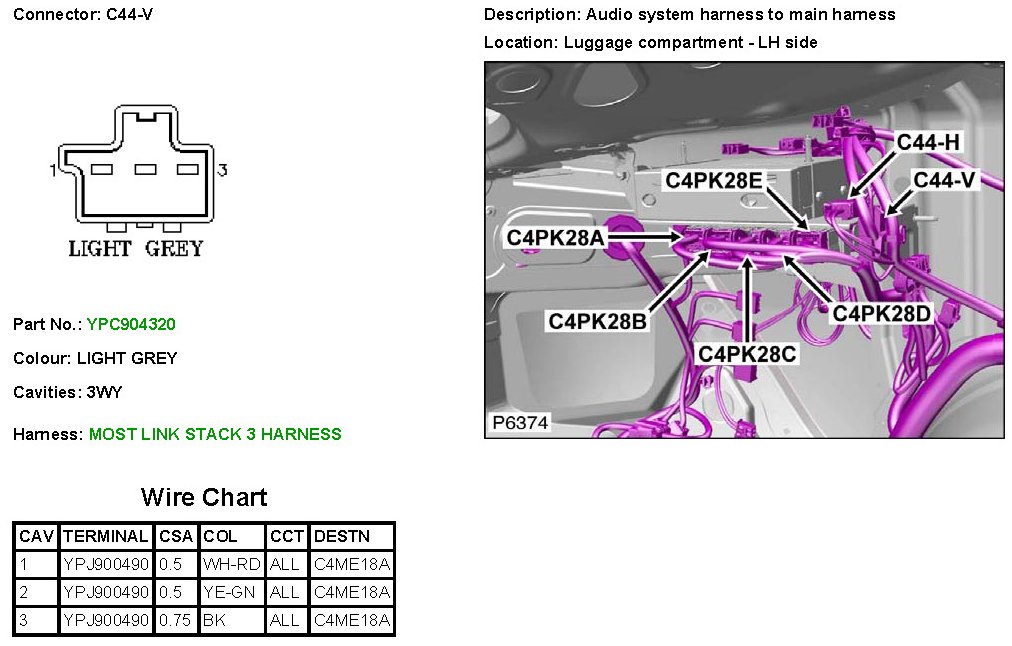

C44-V

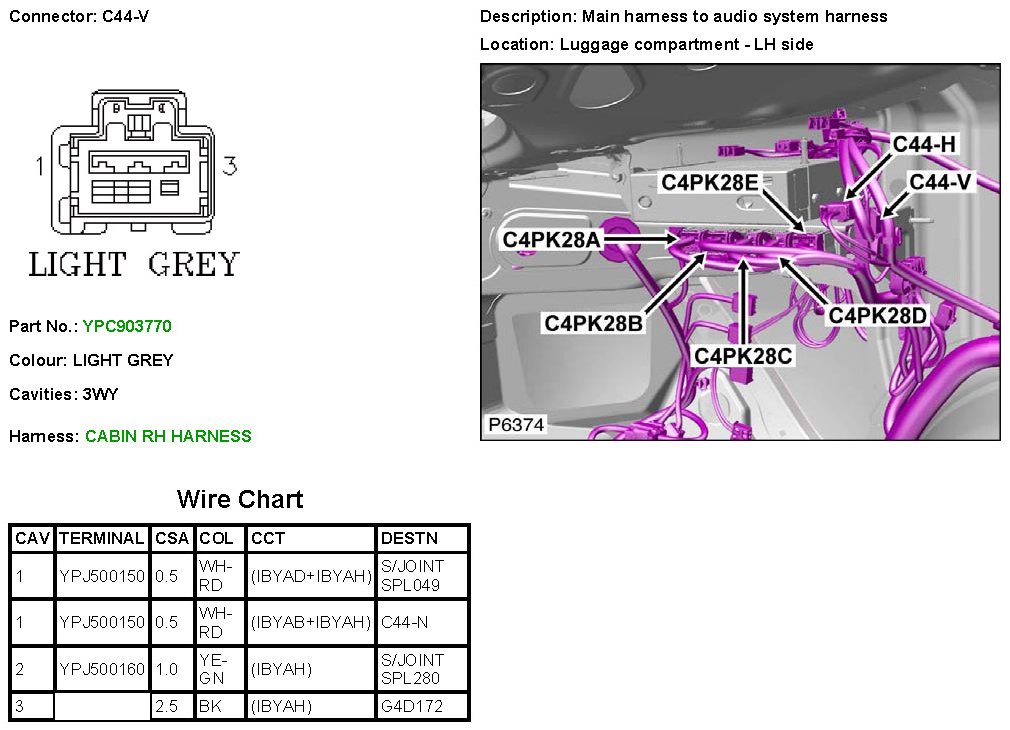

C44-V

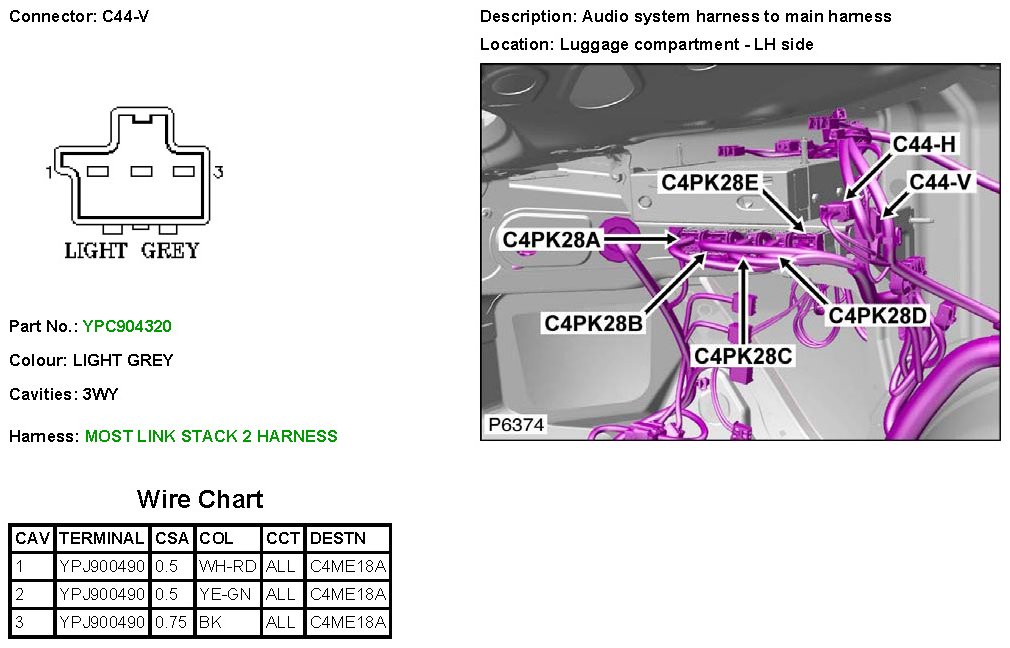

C44-V
C44-V:
C44-V:
C44-V:
C44-V:
C44-V:
