Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XF (X250) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C4BF10A - C4DC05A
>>

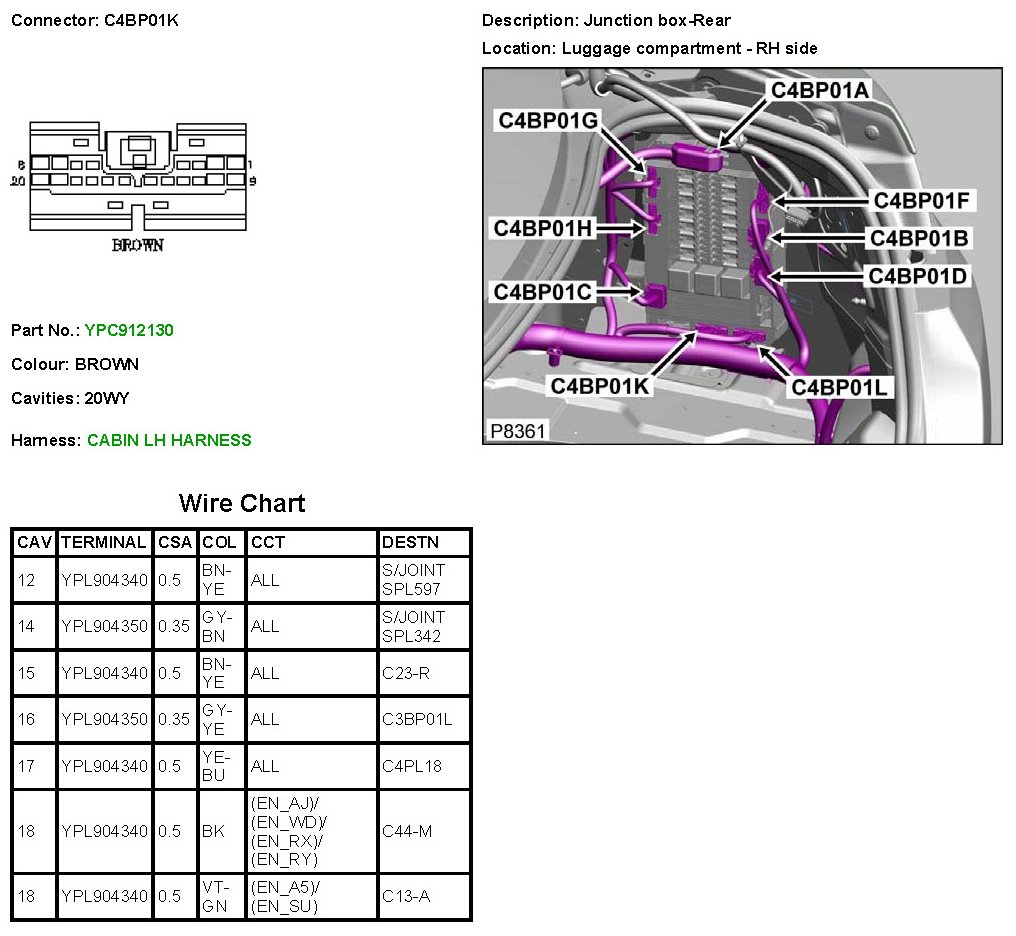

C4BP01K
C4BP01K
C4BP01K
C4BP01K:
C4BP01K:
