Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XF (X250) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

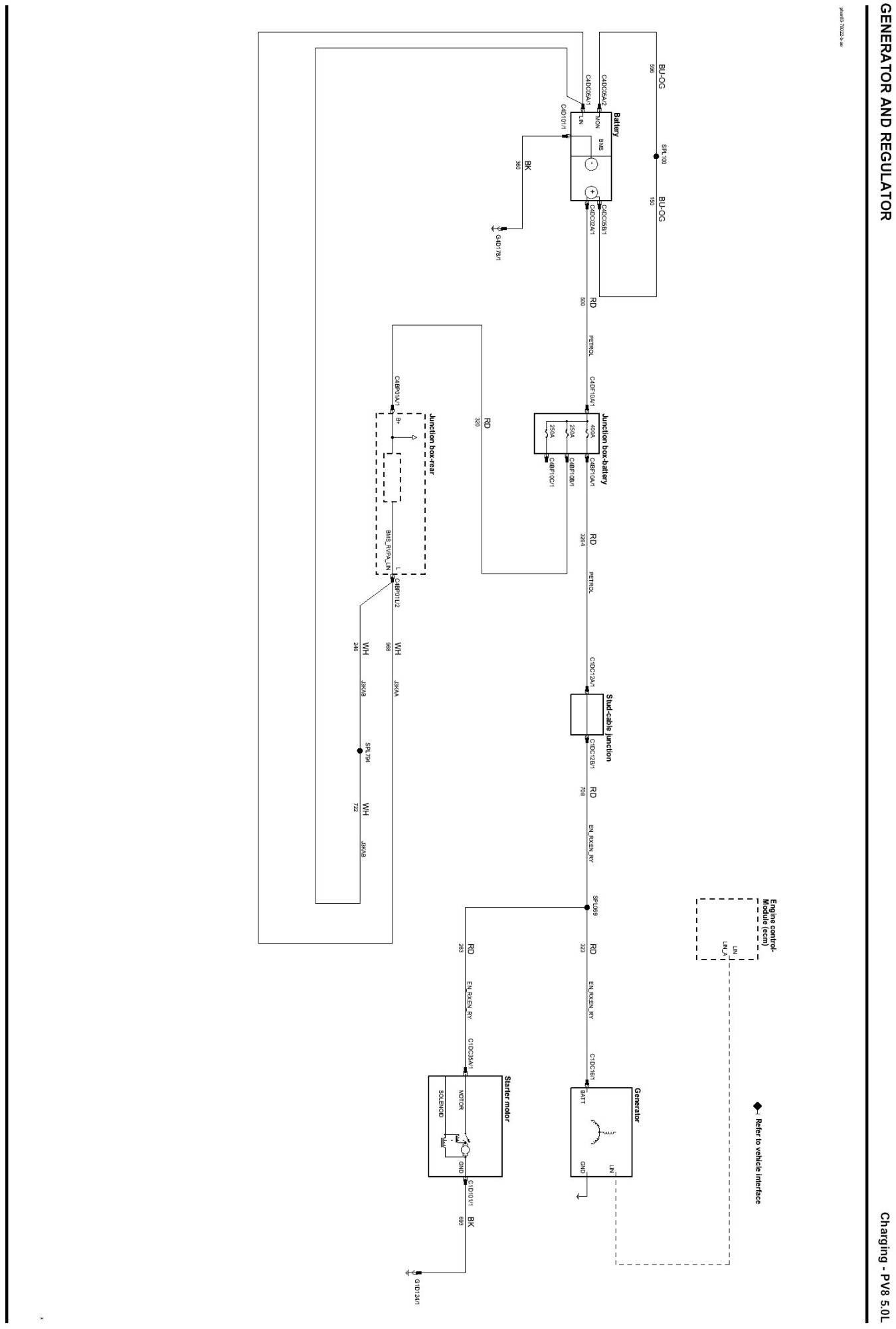

Charging - PV8 5.0L
Charging:
