Home >> Jaguar >> 2011 >> XF (X250) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry >> Keyless Entry - Antennae

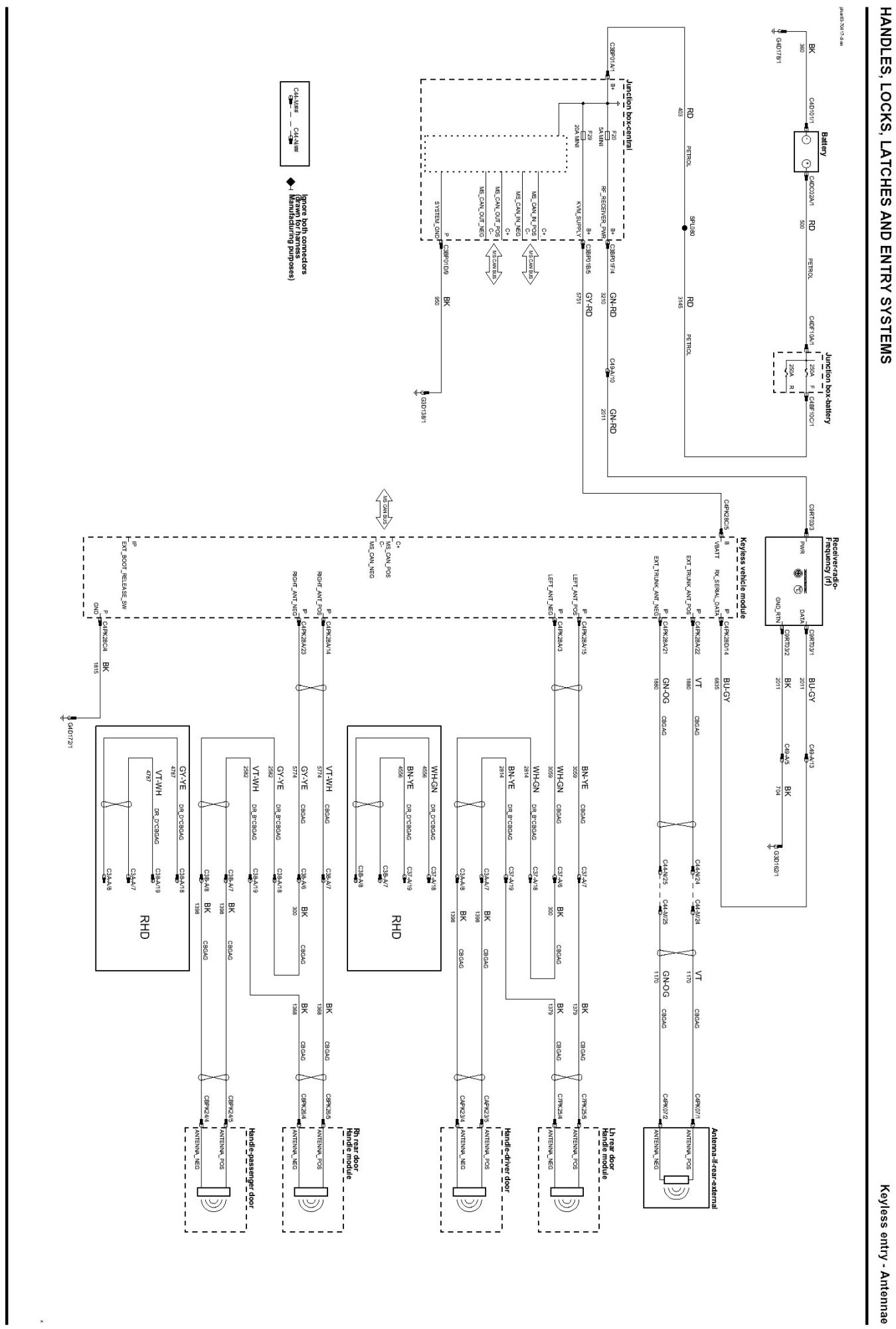

Keyless Entry - Antennae



Keyless Entry - Antennae


Keyless Entry - Antennae:
