Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C2ME03A-C2R224
>>

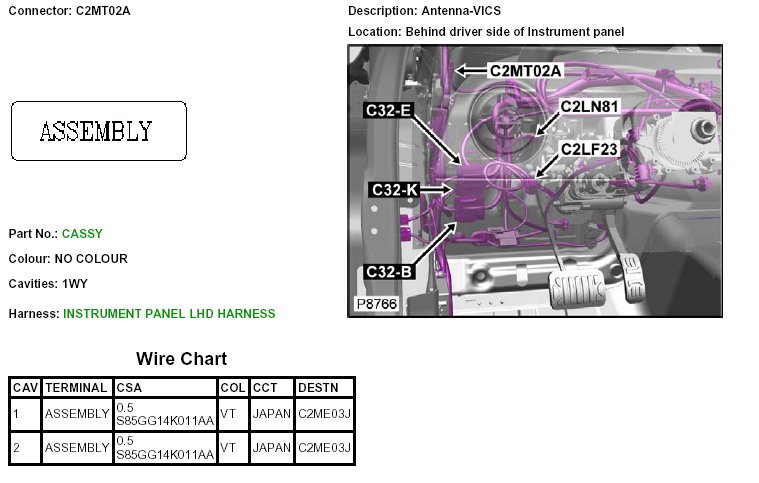

C2MT02A
C2MT02A
C2MT02A
C2MT02A:
