Home
>>
Jaguar
>>
2011
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C32-A-C33-Z
>>

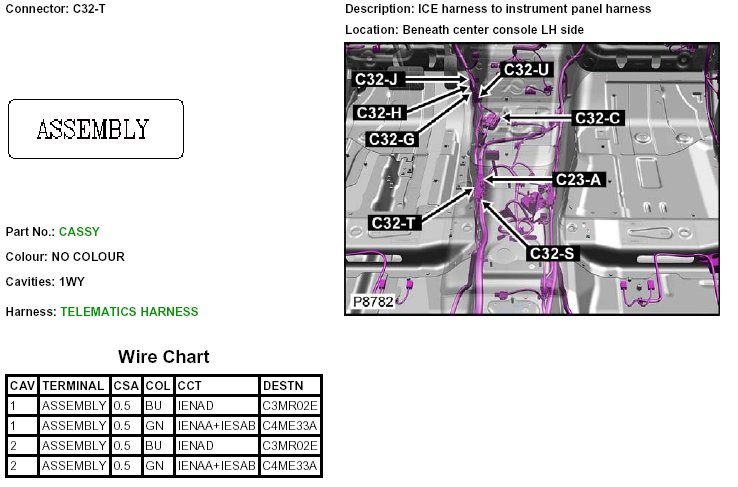

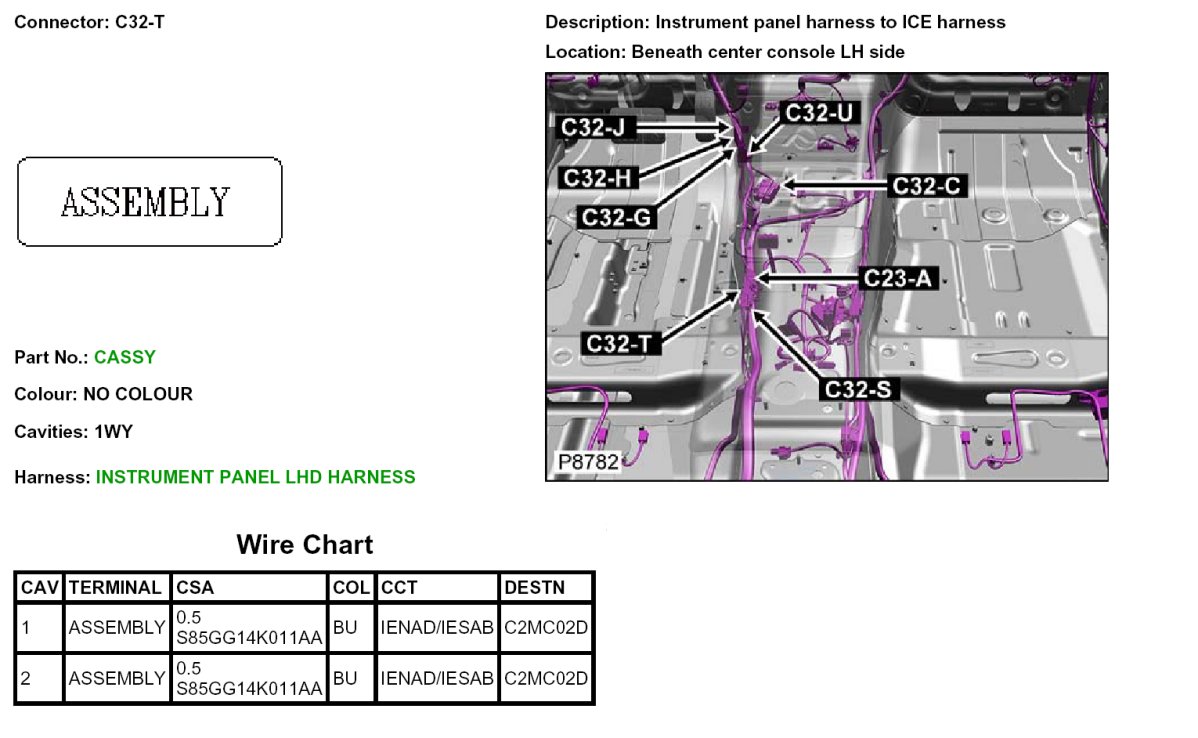

C32-T
C32-T
C32-T
C32-T:
C32-T:
