Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C32-A-C33-Z
>>
C33-F
C33-F
C33-F

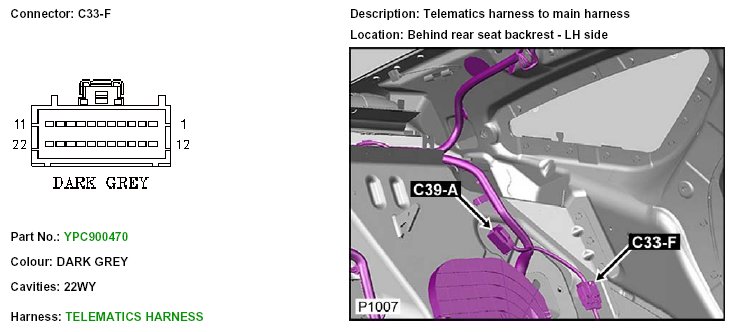

C33-F Part 1:

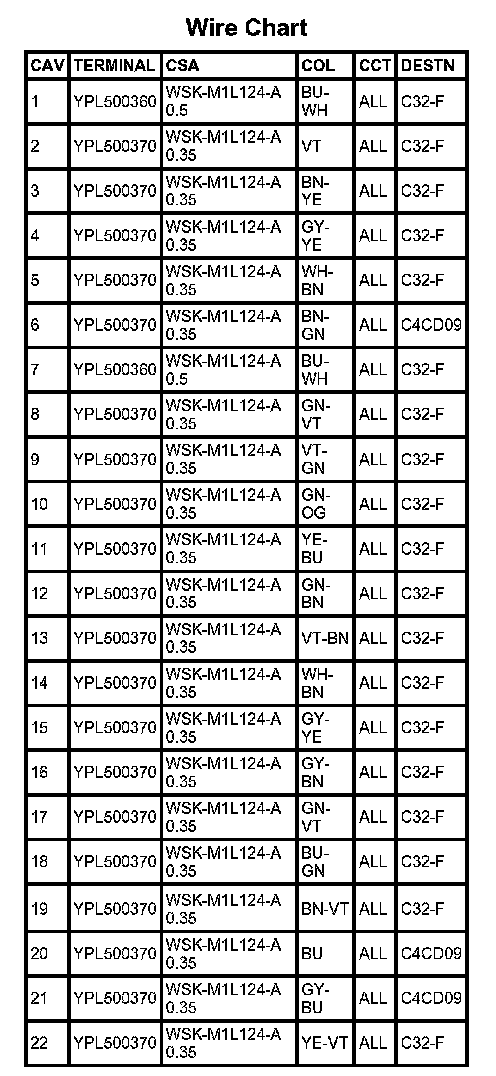

C33-F Part 2:
