Home >> Jaguar >> 2011 >> XJ (X351) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C3A-A-C3HS06B >> C3A-B

C3A-B



C3A-B

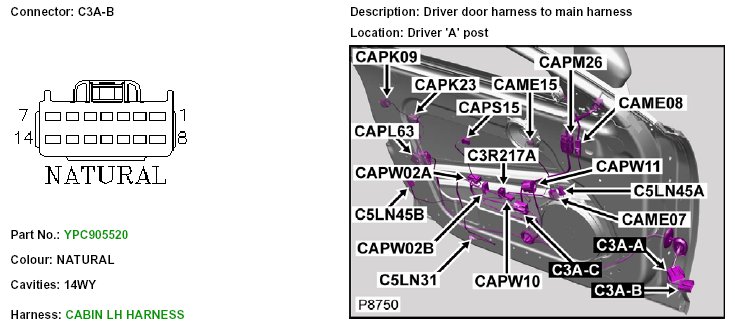

C3A-B Part 1:

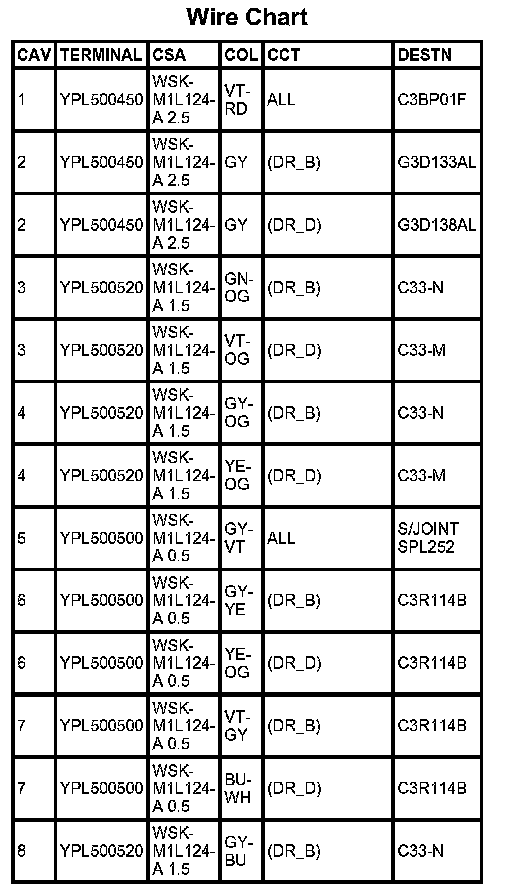

C3A-B Part 2:

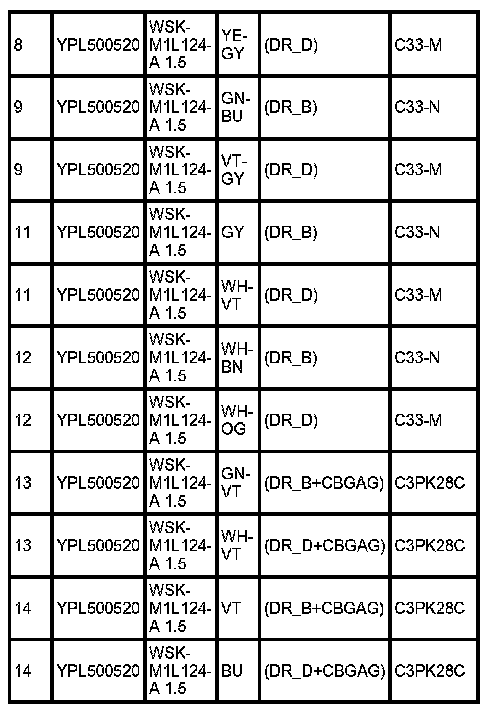

C3A-B Part 3:

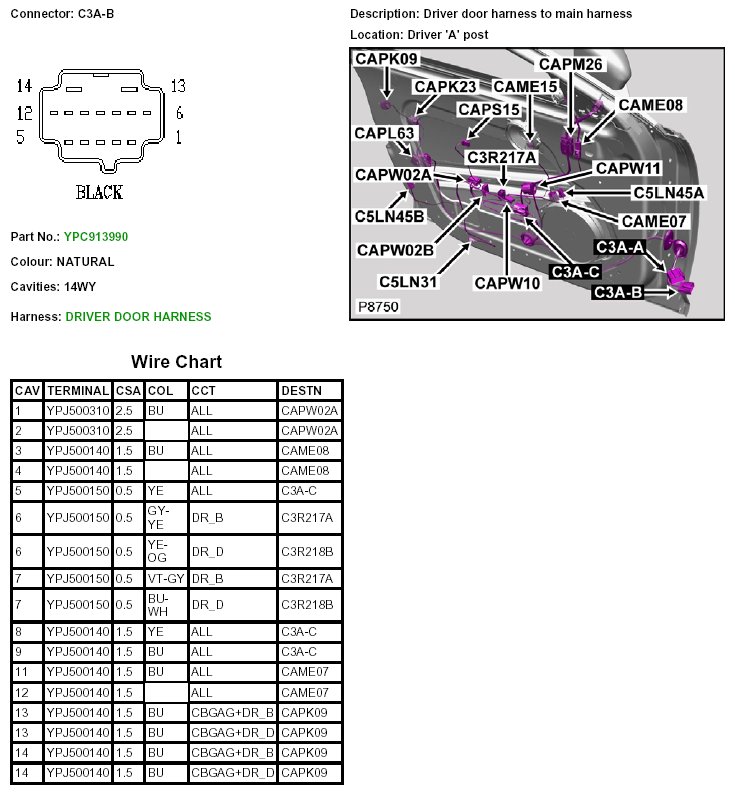

C3A-B:
