C3PS32A



C3PS32A

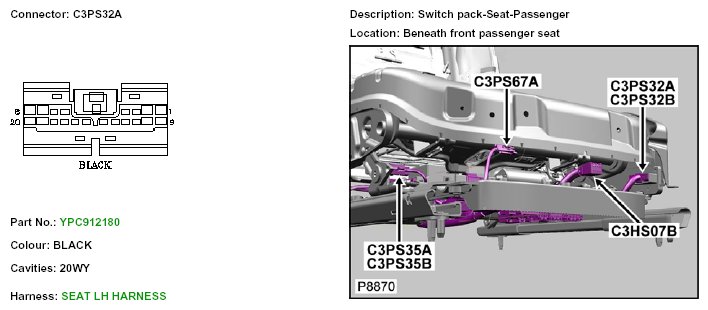

C3PS32A Part 1:

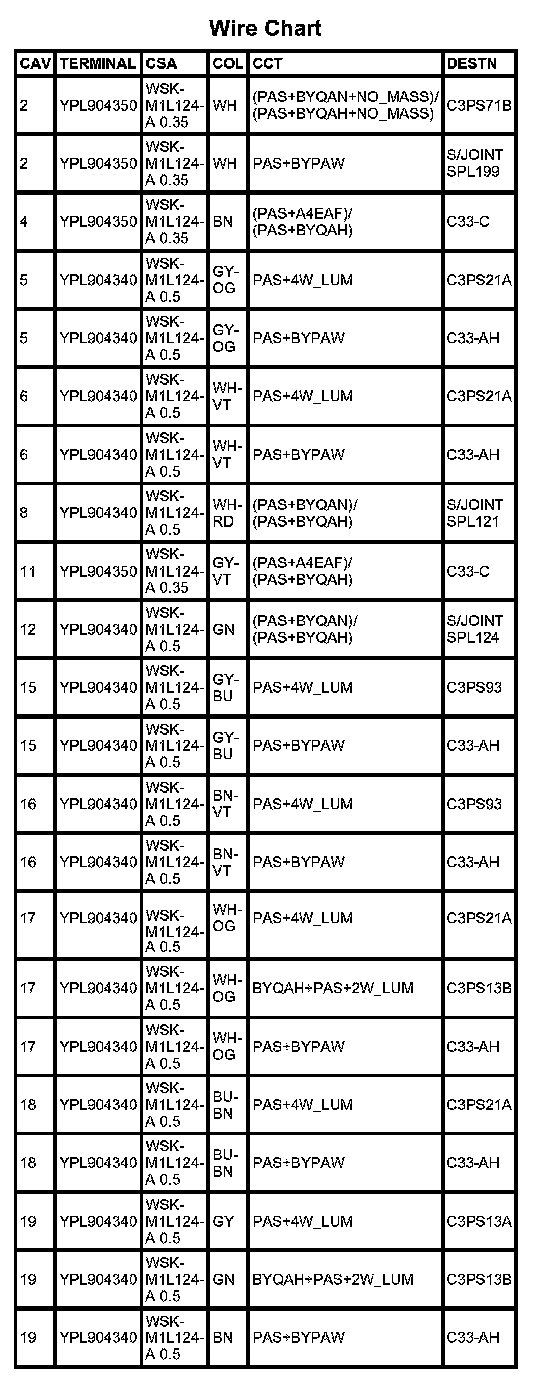

C3PS32A Part 2:

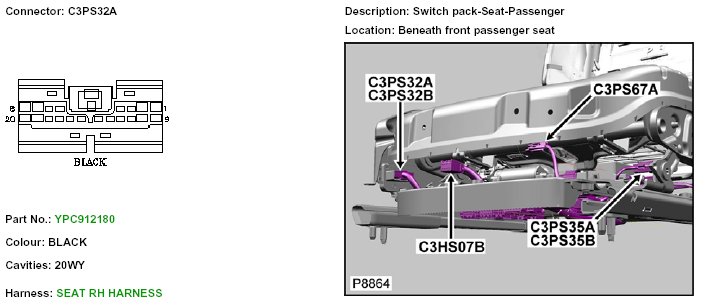

C3PS32A Part 1:

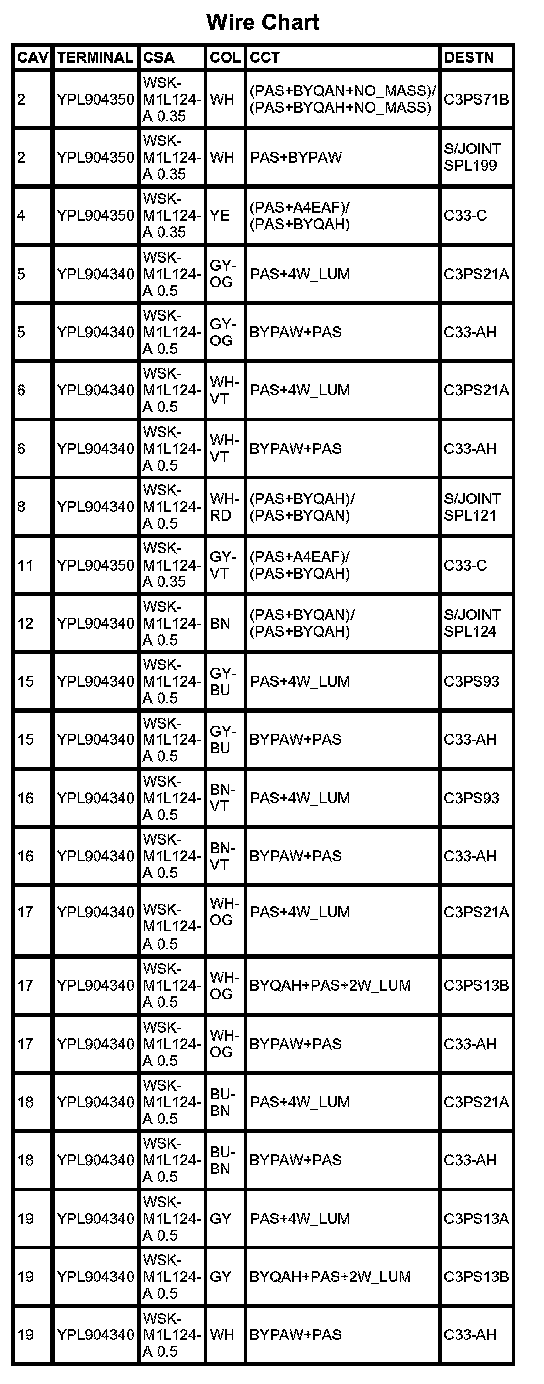

C3PS32A Part 2:




C3PS32A Part 1:

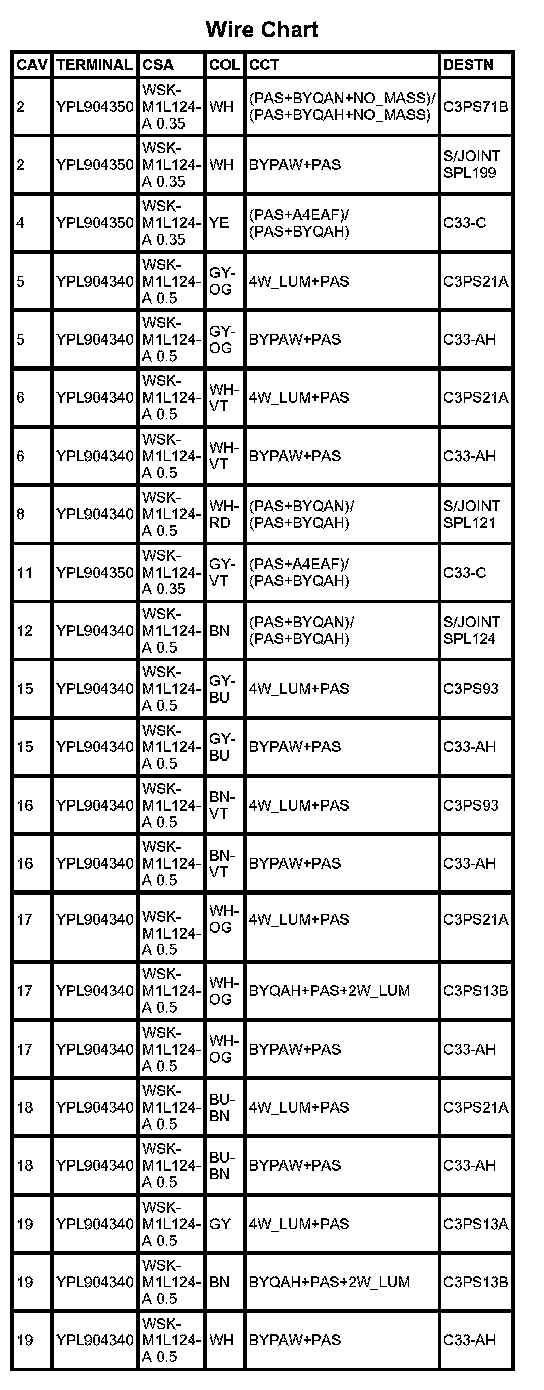

C3PS32A Part 2:




C3PS32A Part 1:

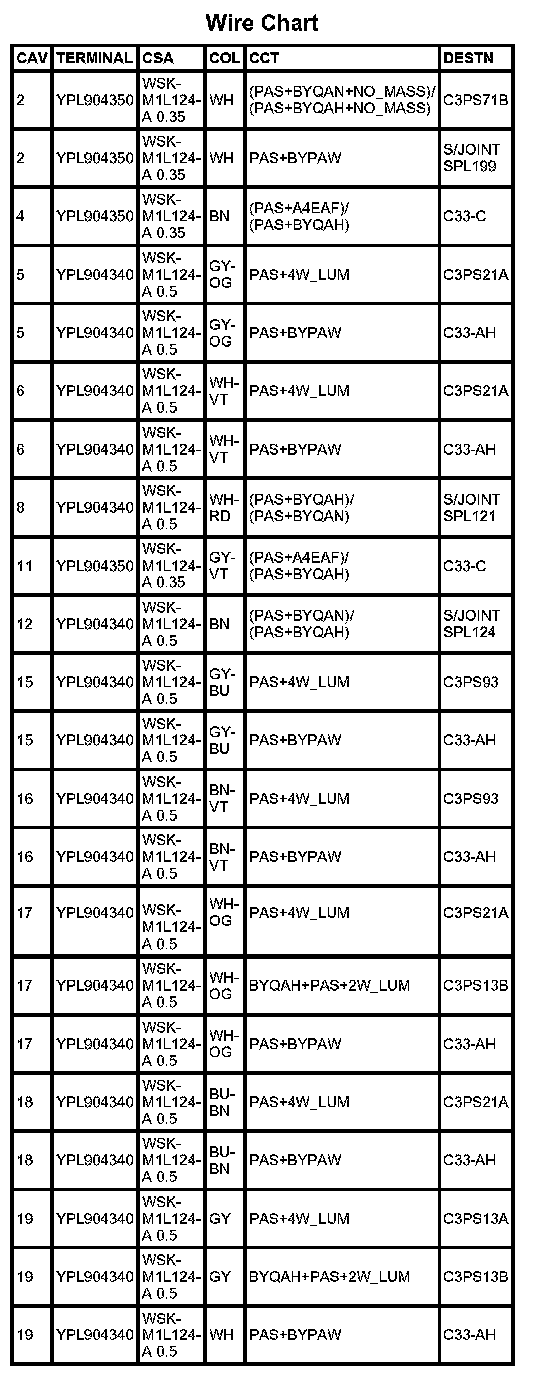

C3PS32A Part 2:
