Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C3PS21-C3PS151A
>>

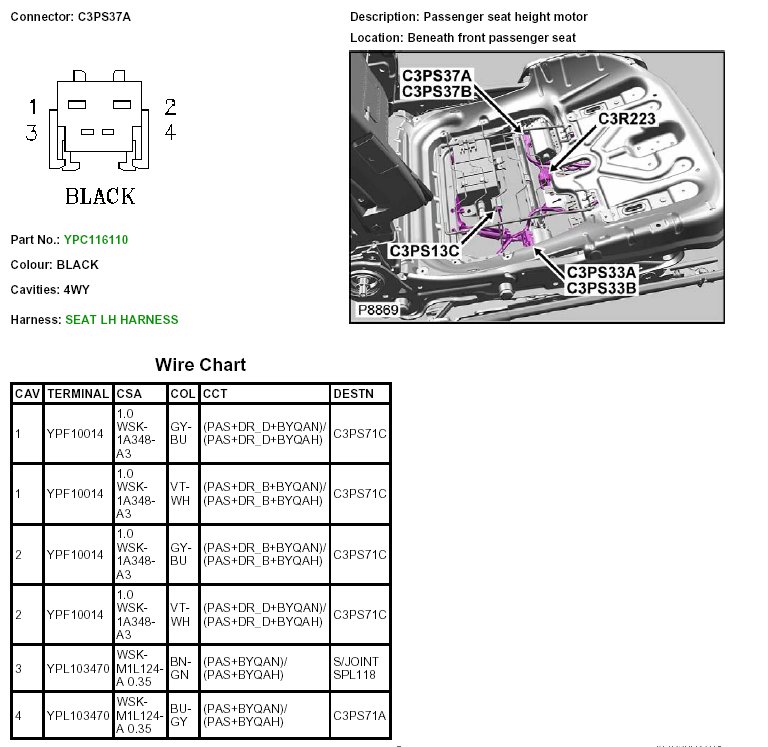

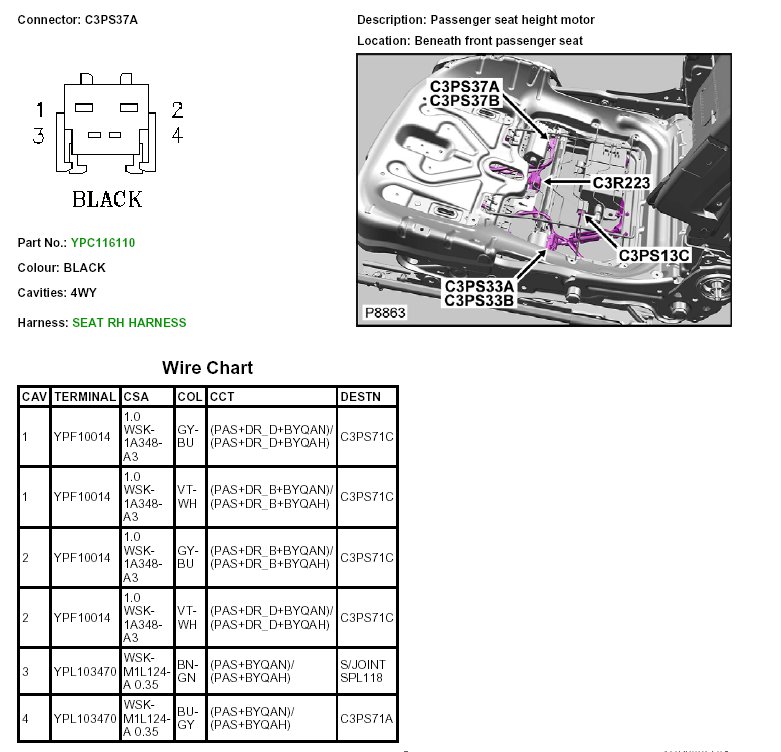

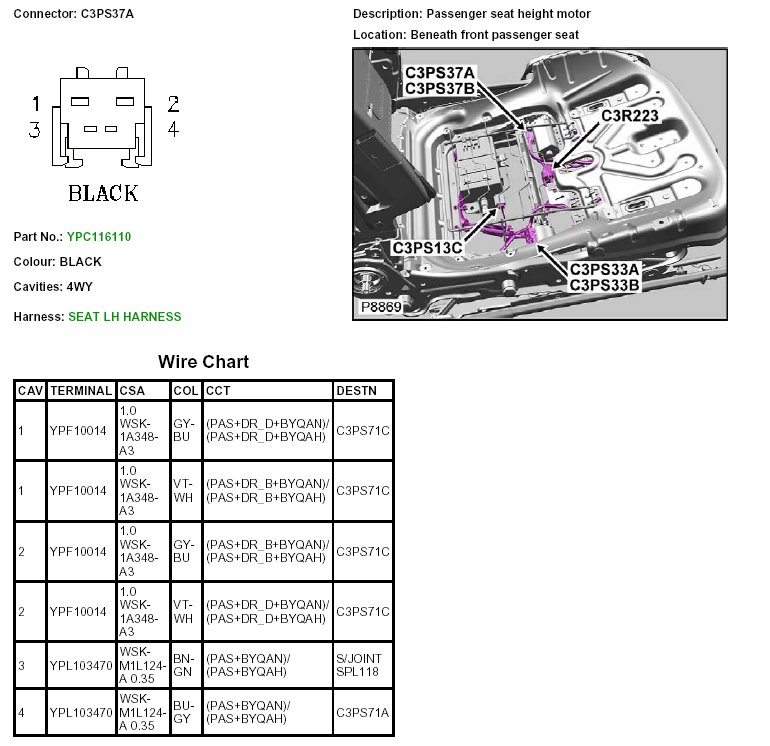

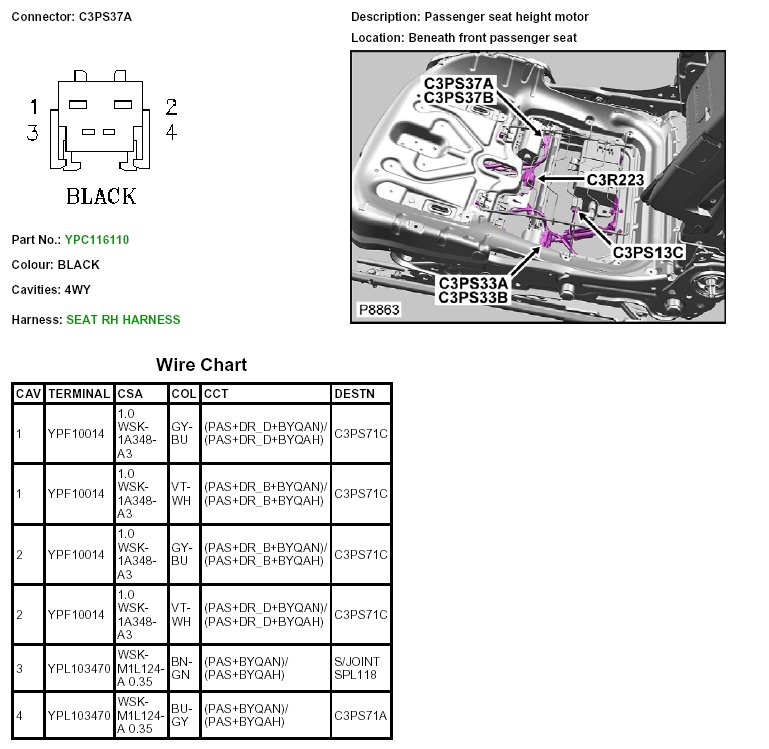

C3PS37A
C3PS37A
C3PS37A
C3PS37A:
C3PS37A:
C3PS37A:
C3PS37A:
