Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
G4D108AS-G9D149
>>
G4D172AL
G4D172AL
G4D172AL

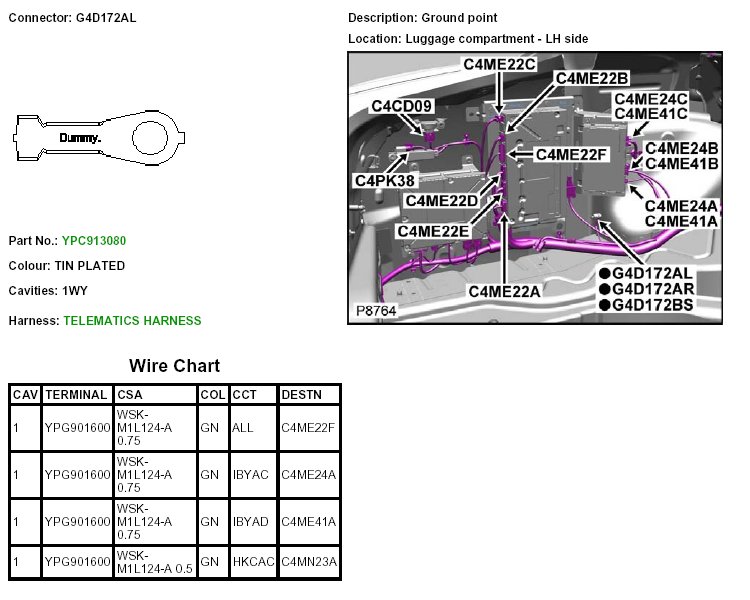

G4D172AL:
