C11-A-C31-F
>>

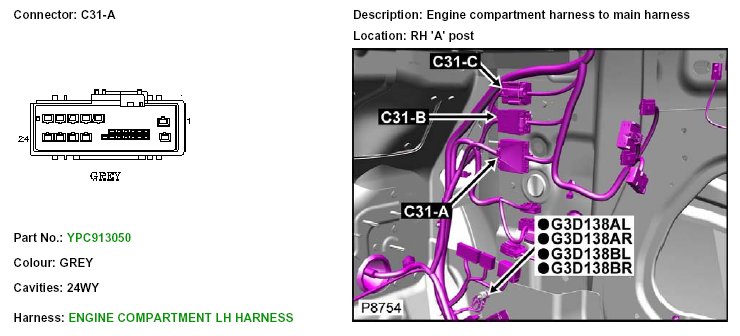

C31-A
C31-A
C31-A

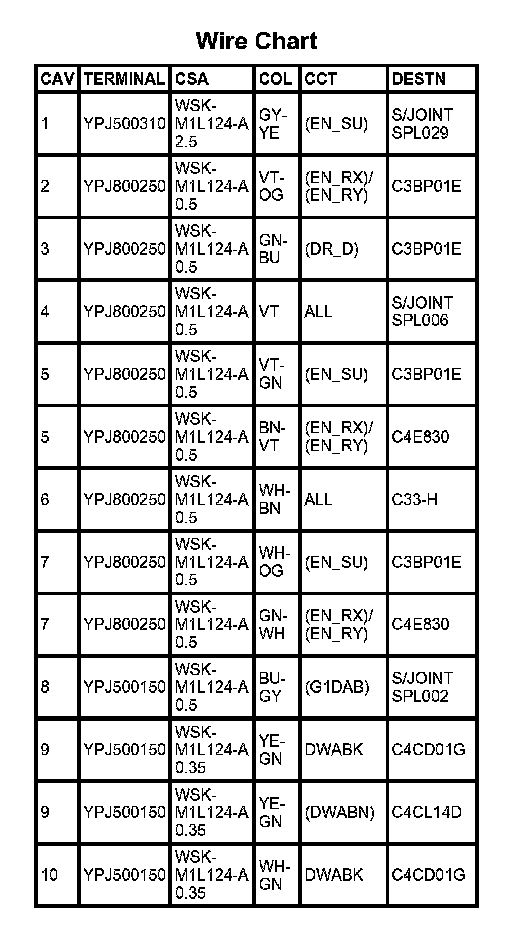

C31-A Part 1:

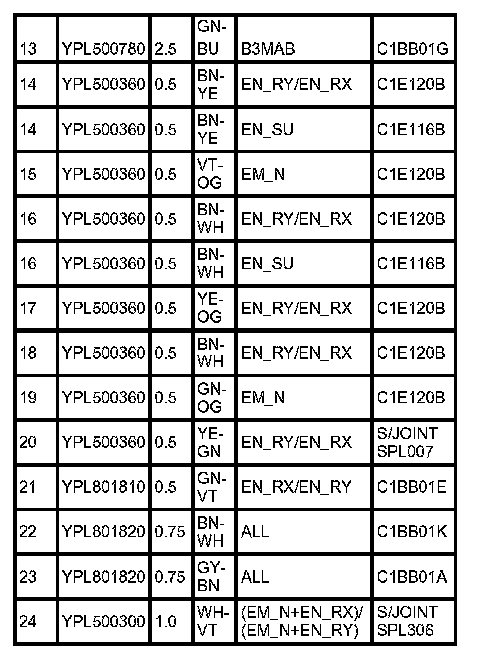

C31-A Part 2:
C31-A Part 3:

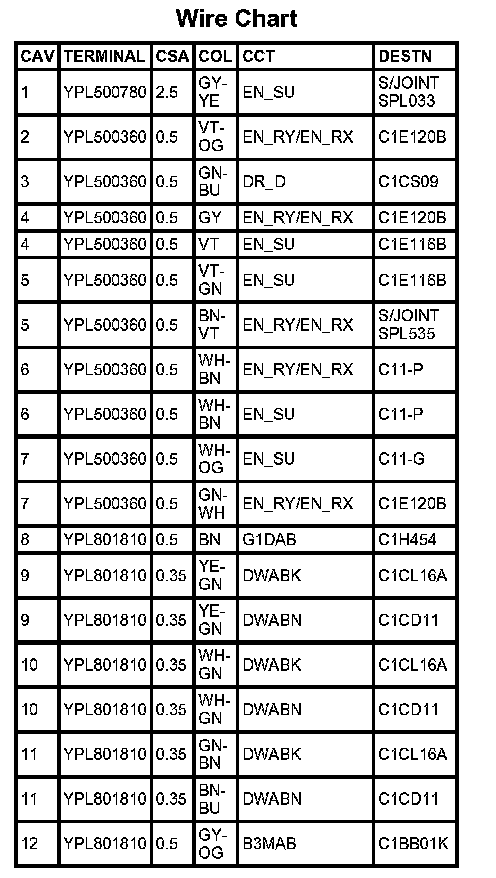

C31-A Part 1:

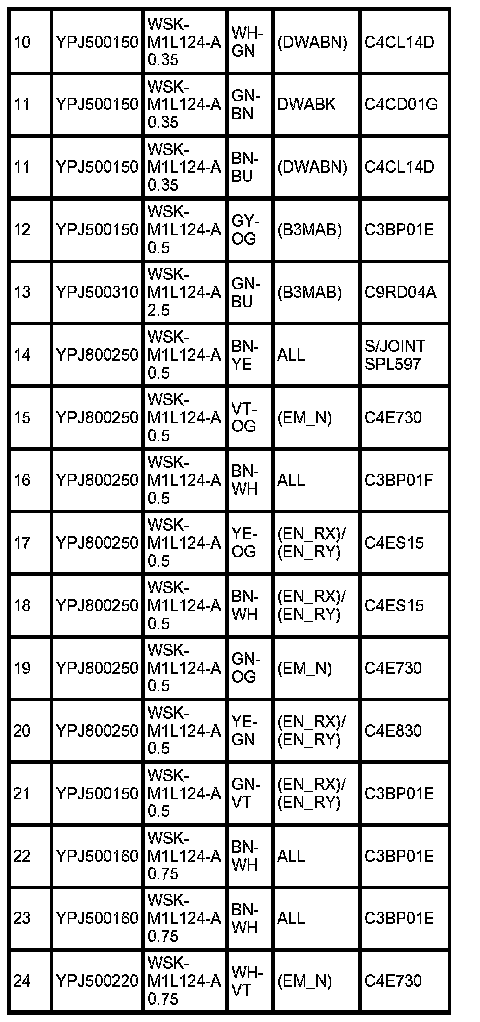

C31-A Part 2:
C31-A Part 3:
