Operation CHARM: Car repair manuals for everyone.

Home >> Jaguar >> 2011 >> XJ (X351) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connectors >> C37-A-C99-A >> C37-C

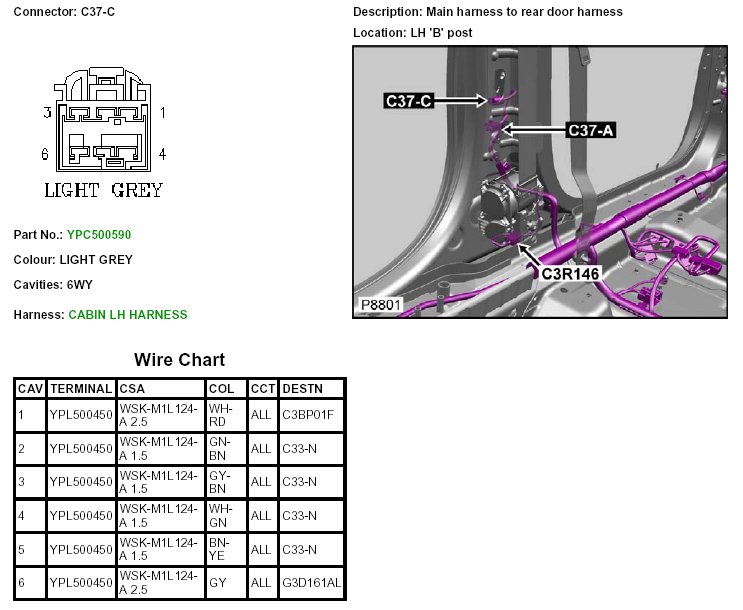

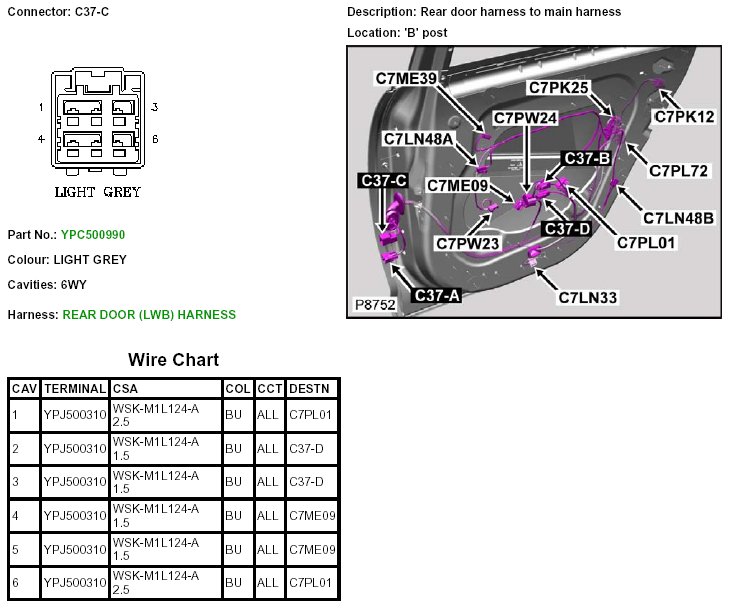

C37-C

C37-C

C37-C:

C37-C:

C37-C:
