Home >> Jaguar >> 2011 >> XJ (X351) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connectors >> C37-A-C99-A >> C39-A

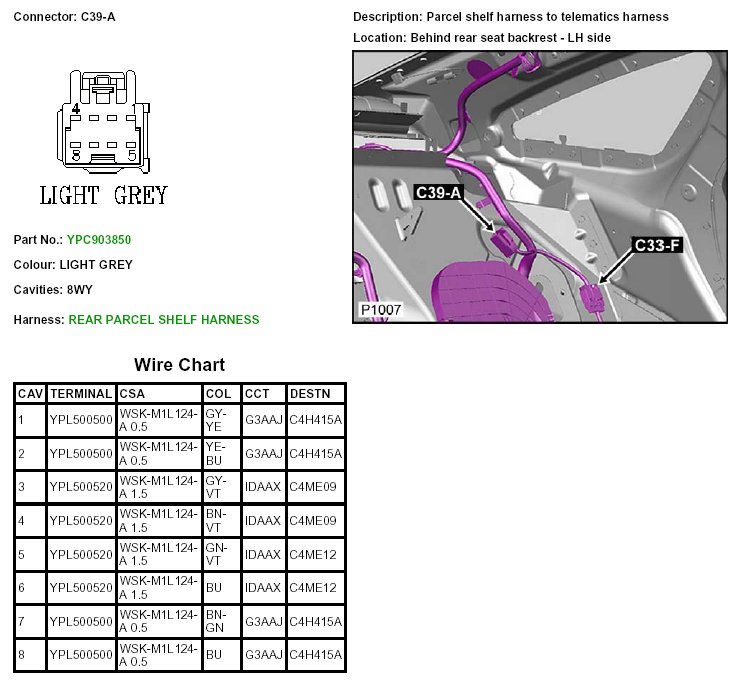

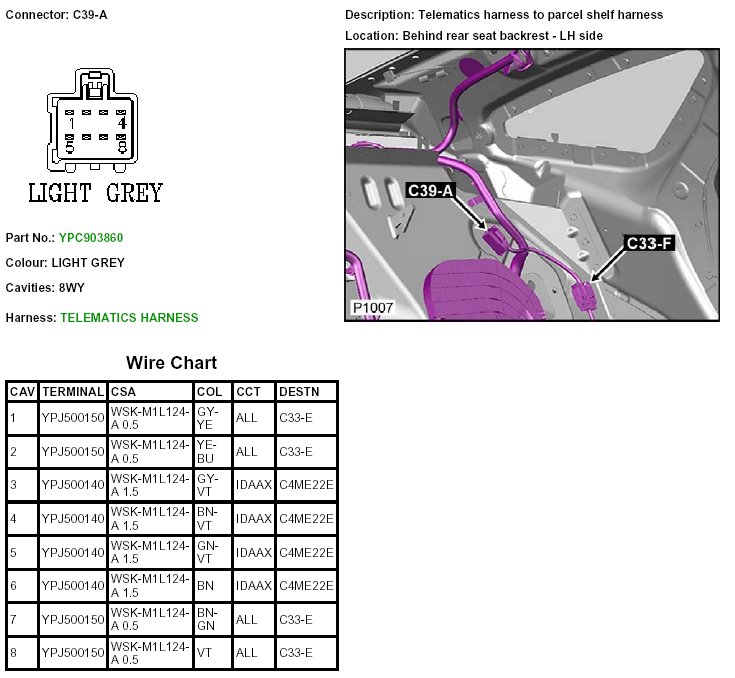

C39-A

C39-A

C39-A:

C39-A:
