Home >> Jaguar >> 2011 >> XJ (X351) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connectors >> C37-A-C99-A >> C44-E

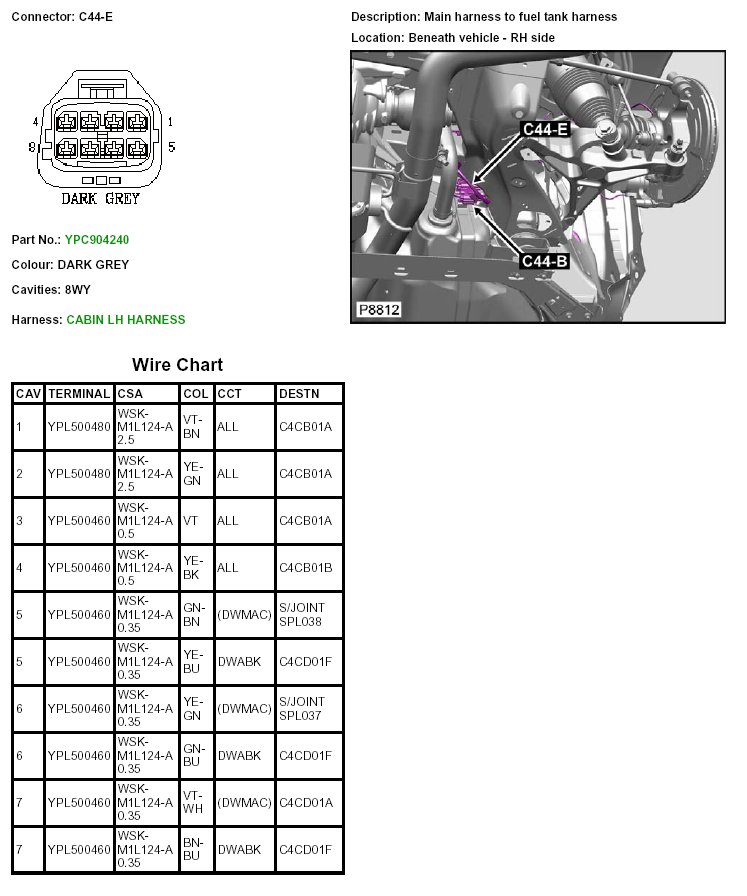

C44-E



C44-E

C44-E:




C44-E:
