C3A-A-C3HS06B
>>

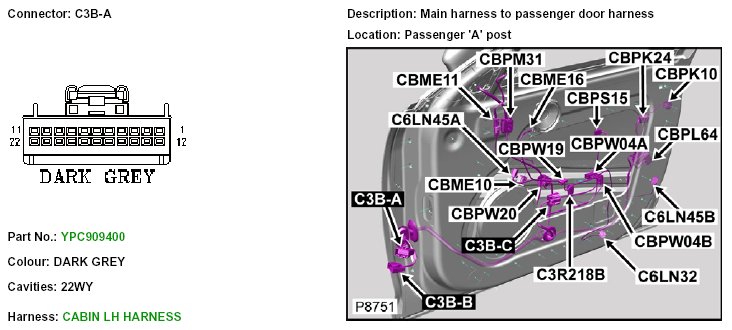

C3B-A
C3B-A

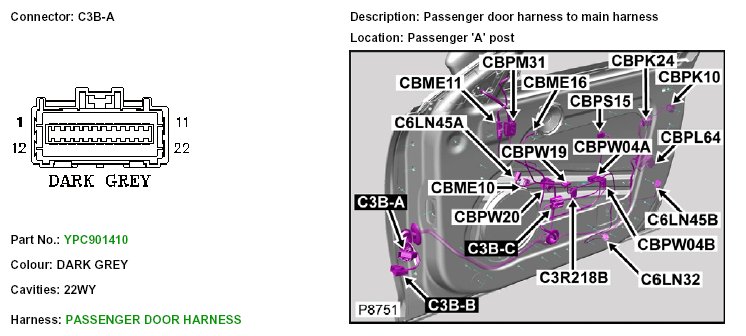

C3B-A
C3B-A Part 1:

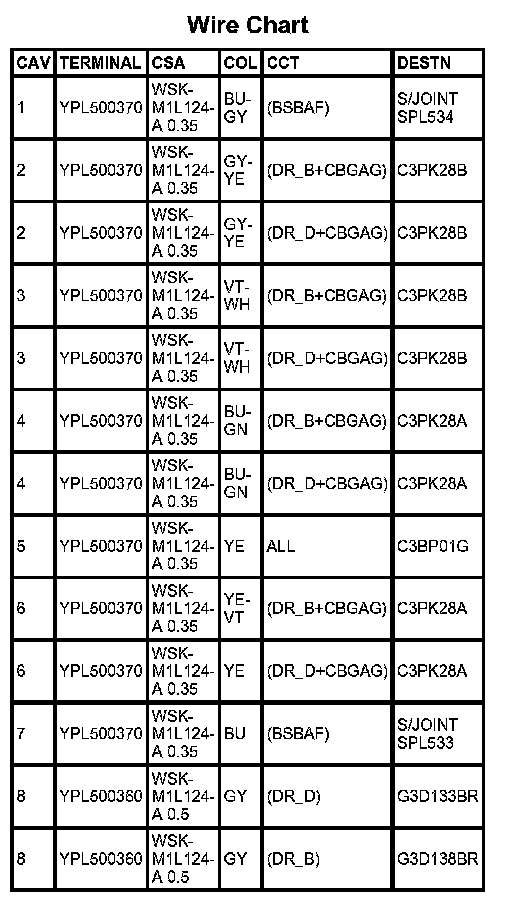

C3B-A Part 2:

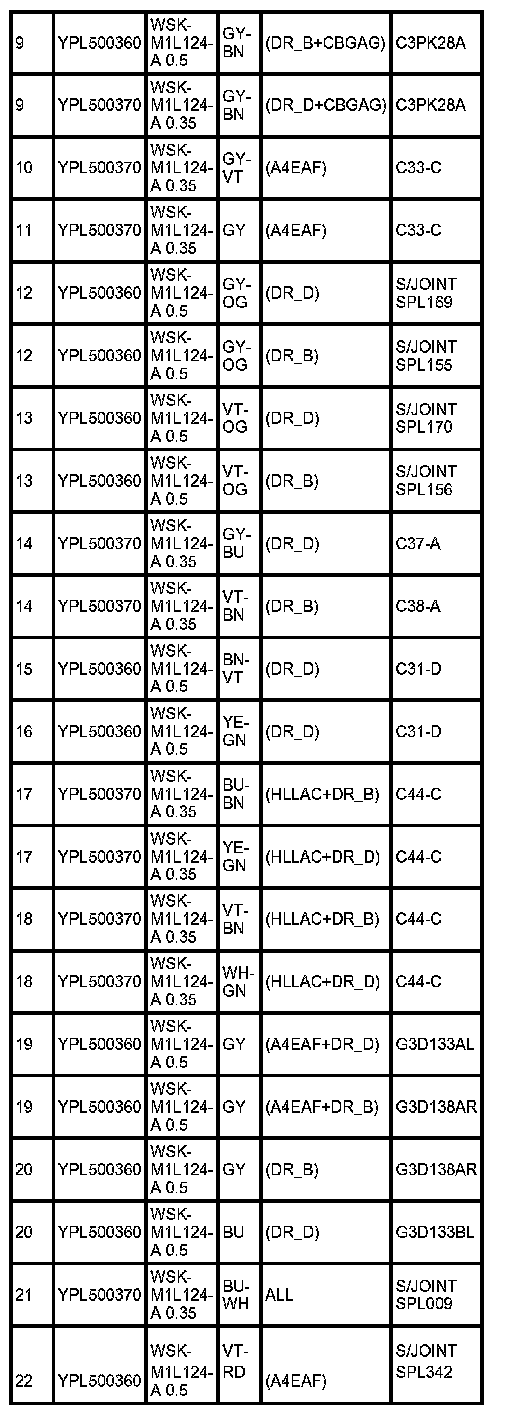

C3B-A Part 3:
C3B-A Part 1:

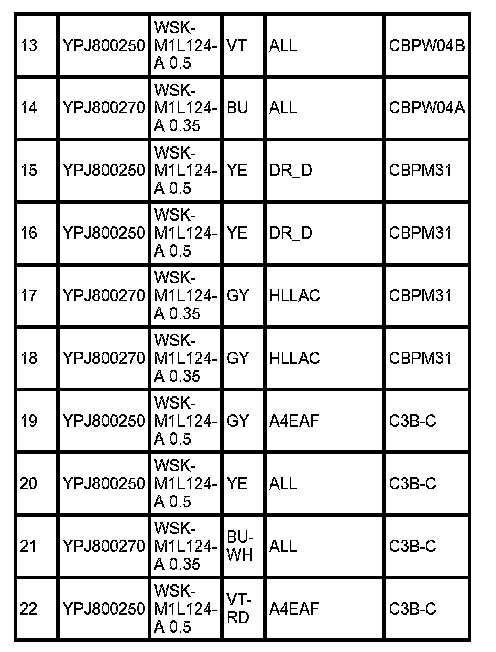

C3B-A Part 2:
C3B-A Part 3:
