C3A-A-C3HS06B
>>
C3B-B
C3B-B
C3B-B

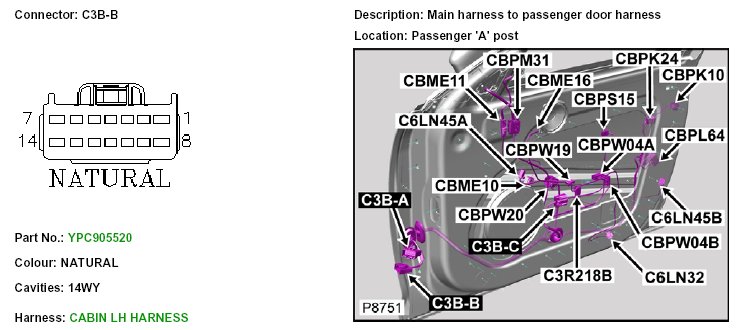

C3B-B Part 1:

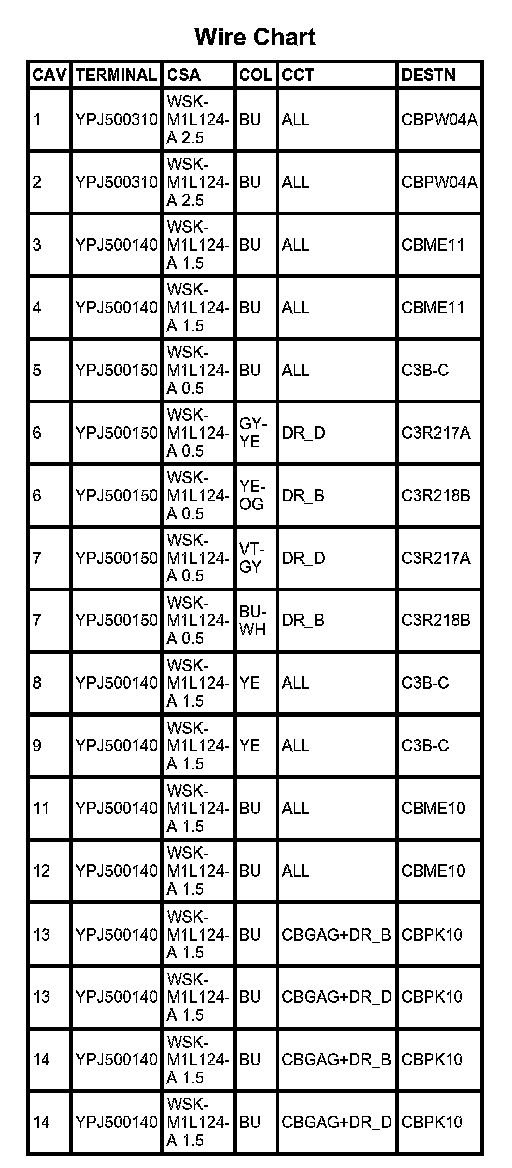

C3B-B Part 2:
C3B-B Part 3:

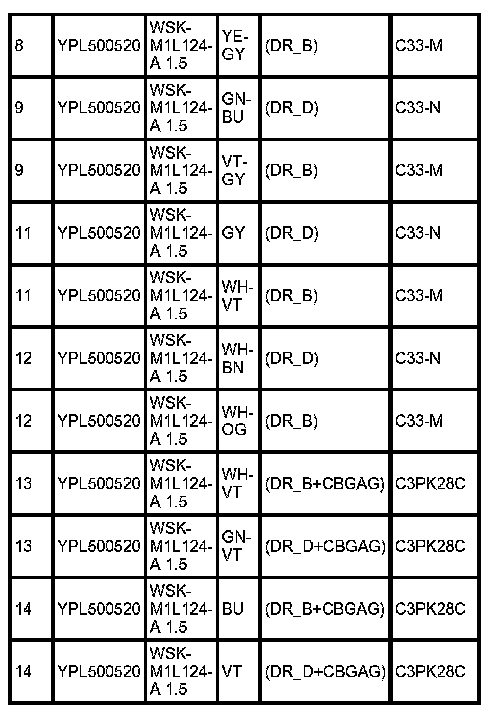

C3B-B Part 1:
C3B-B Part 2:
