Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>

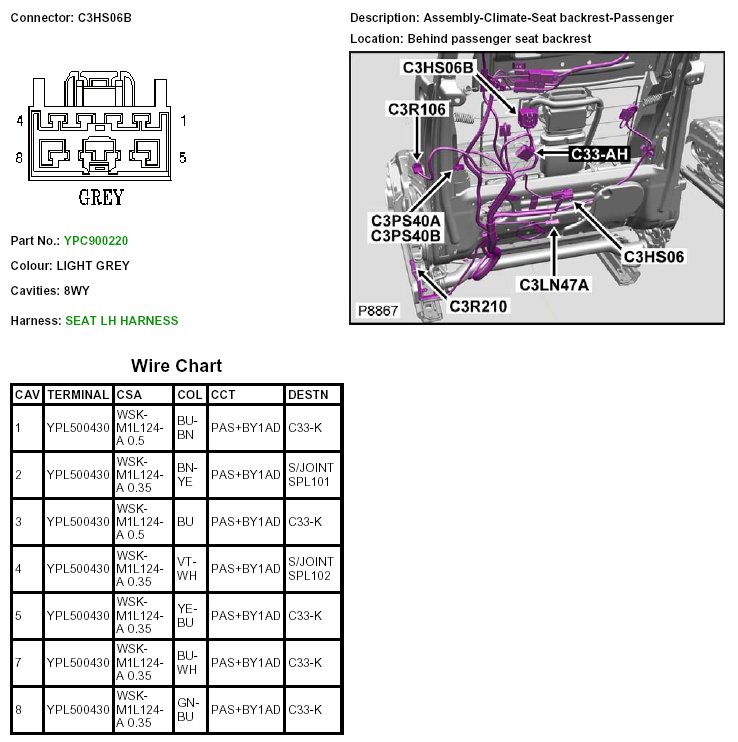

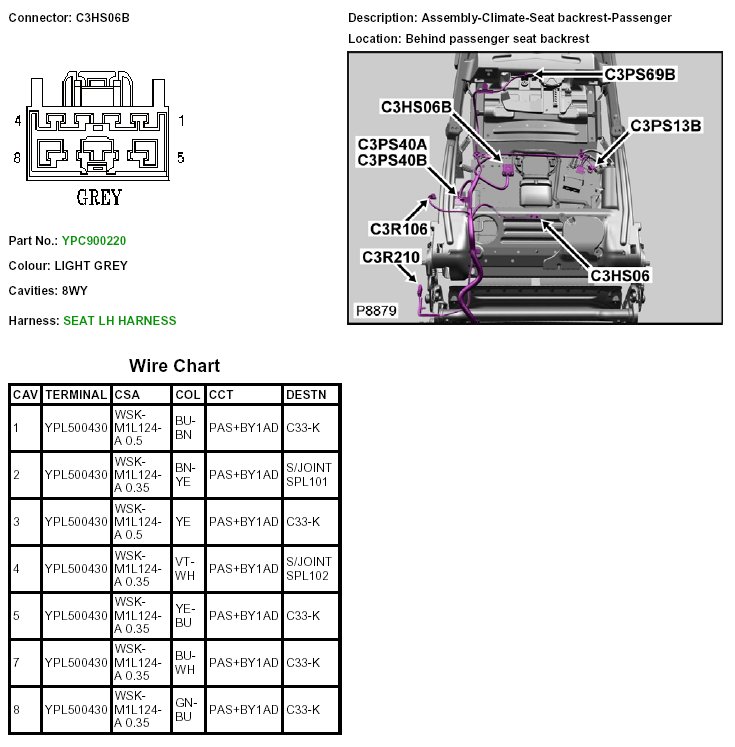

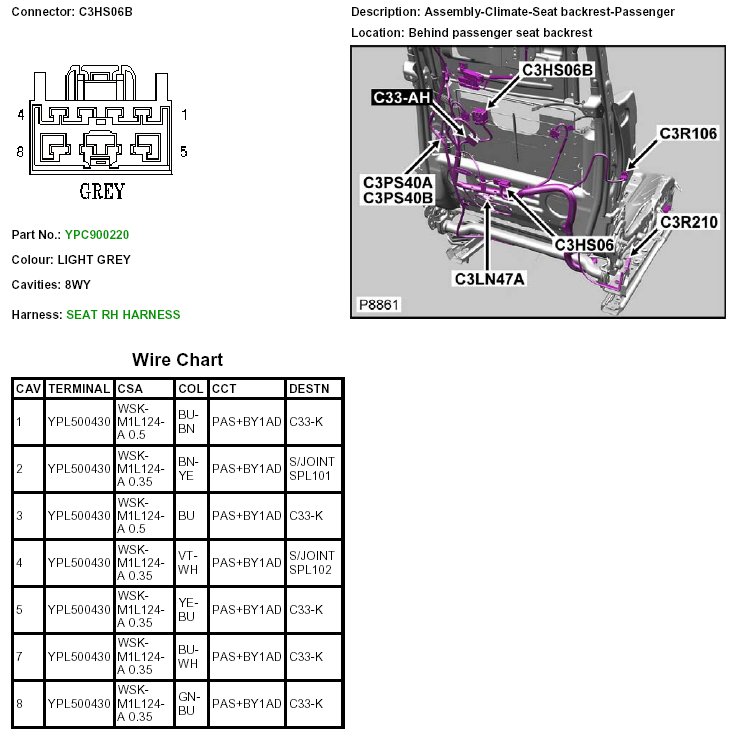

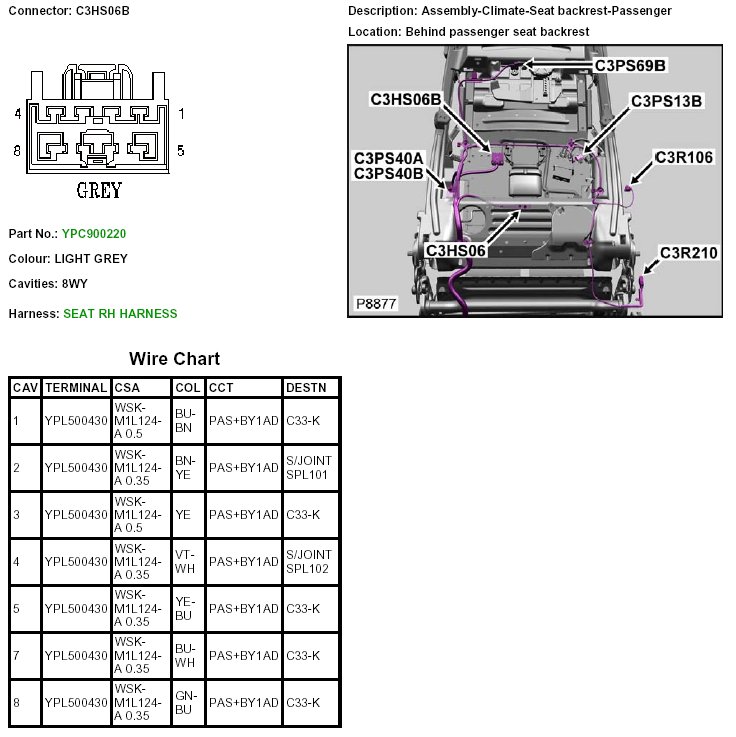

C3A-A-C3HS06B
>>
C3HS06B
C3HS06B
C3HS06B
C3HS06B:
C3HS06B:
C3HS06B:
C3HS06B:
