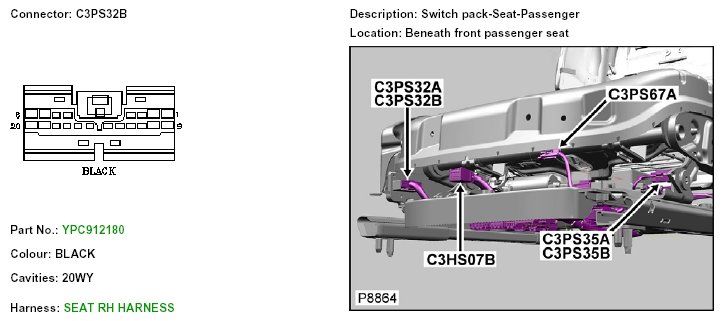

C3PS32B



C3PS32B

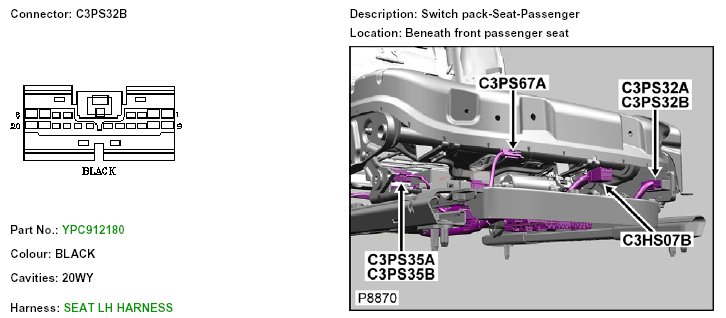

C3PS32B Part 1:

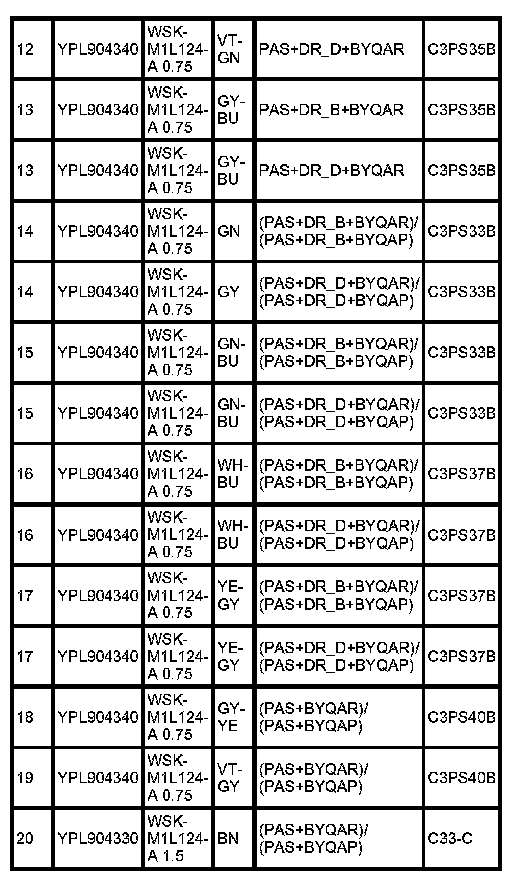

C3PS32B Part 2:




C3PS32B Part 3:

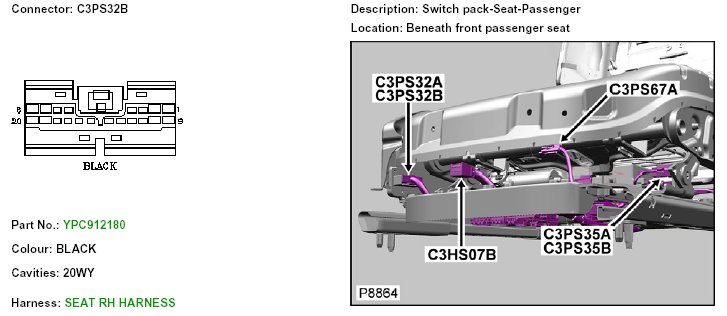

C3PS32B Part 1:




C3PS32B Part 2:




C3PS32B Part 3:

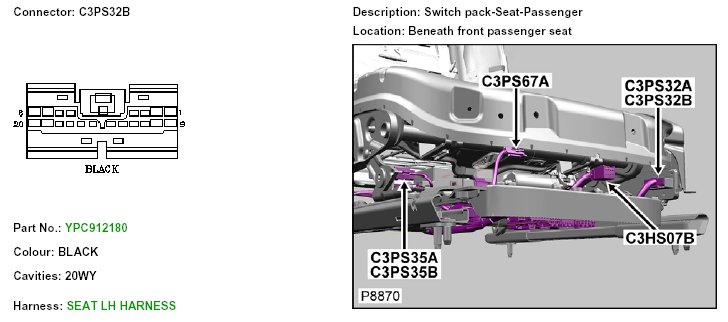

C3PS32B Part 1:




C3PS32B Part 2:




C3PS32B Part 3:




C3PS32B Part 1:




C3PS32B Part 2:




C3PS32B Part 3:
