Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C3PS21-C3PS151A
>>

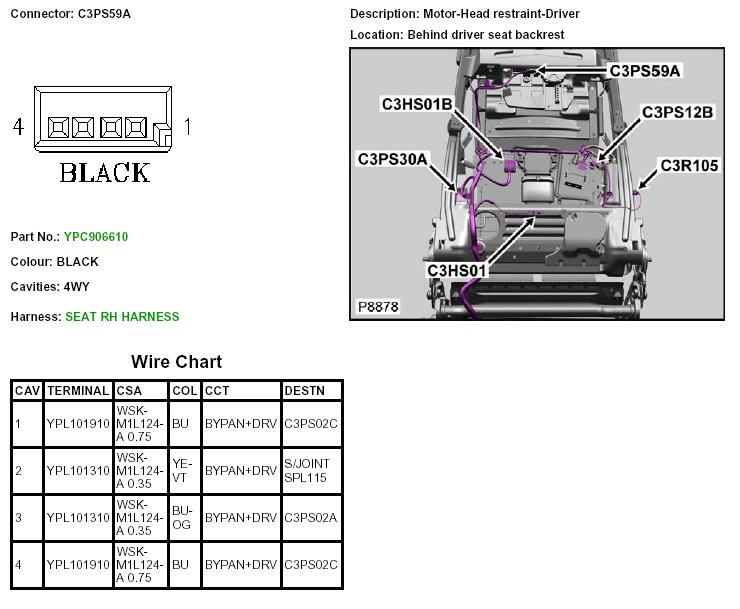

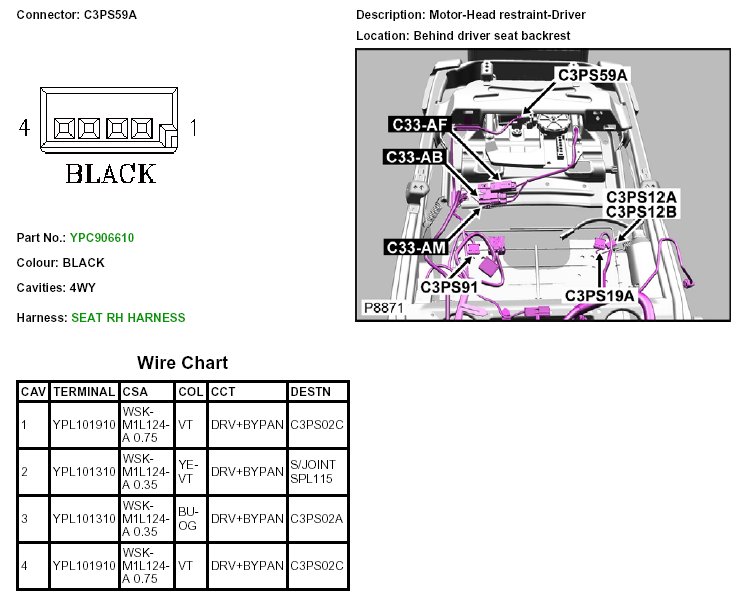

C3PS59A
C3PS59A
C3PS59A
C3PS59A:
C3PS59A:
C3PS59A:
