Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C4BF01B-C4BR01E
>>

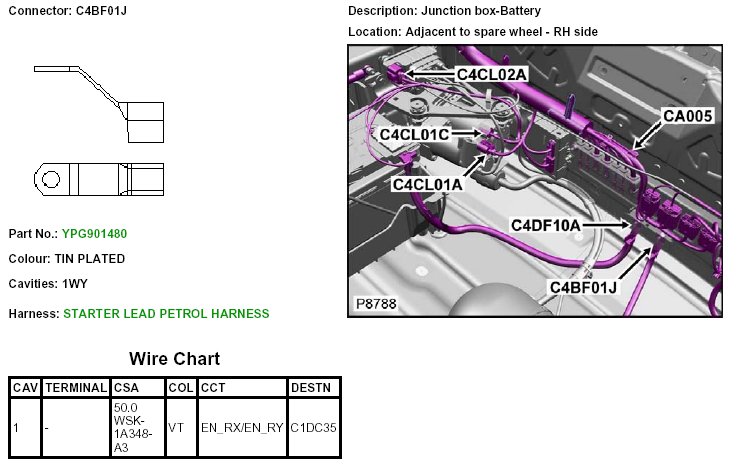

C4BF01J
C4BF01J
C4BF01J

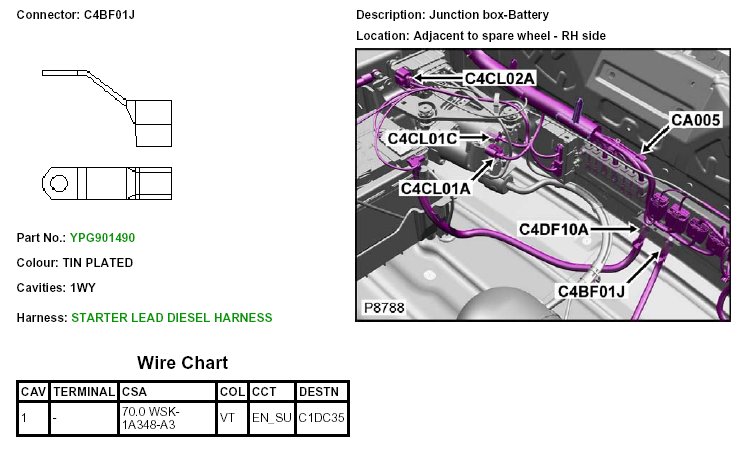

C4BF01J:
C4BF01J:
