Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C4CA04-C4CMC09
>>
C4CD01F
C4CD01F
C4CD01F

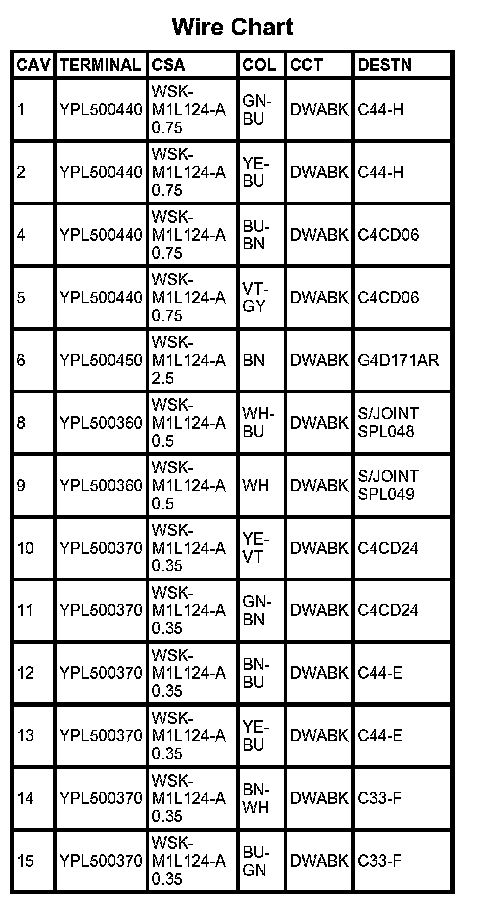

C4CD01F Part 1:

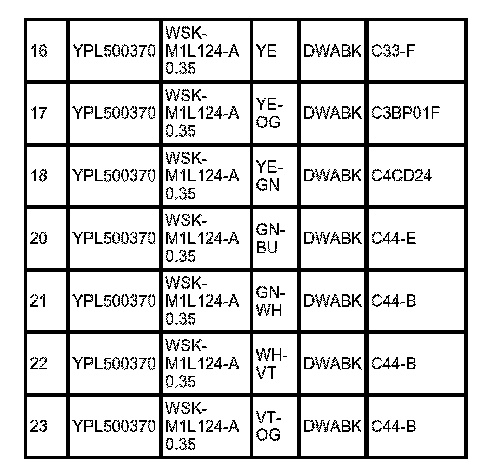

C4CD01F Part 2:

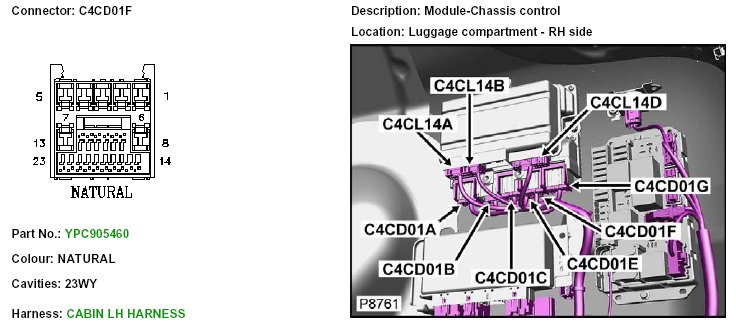

C4CD01F Part 3:
