Home >> Jaguar >> 2011 >> XJ (X351) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Collision Avoidance and Parking Assist Systems >> Front

Front



Front

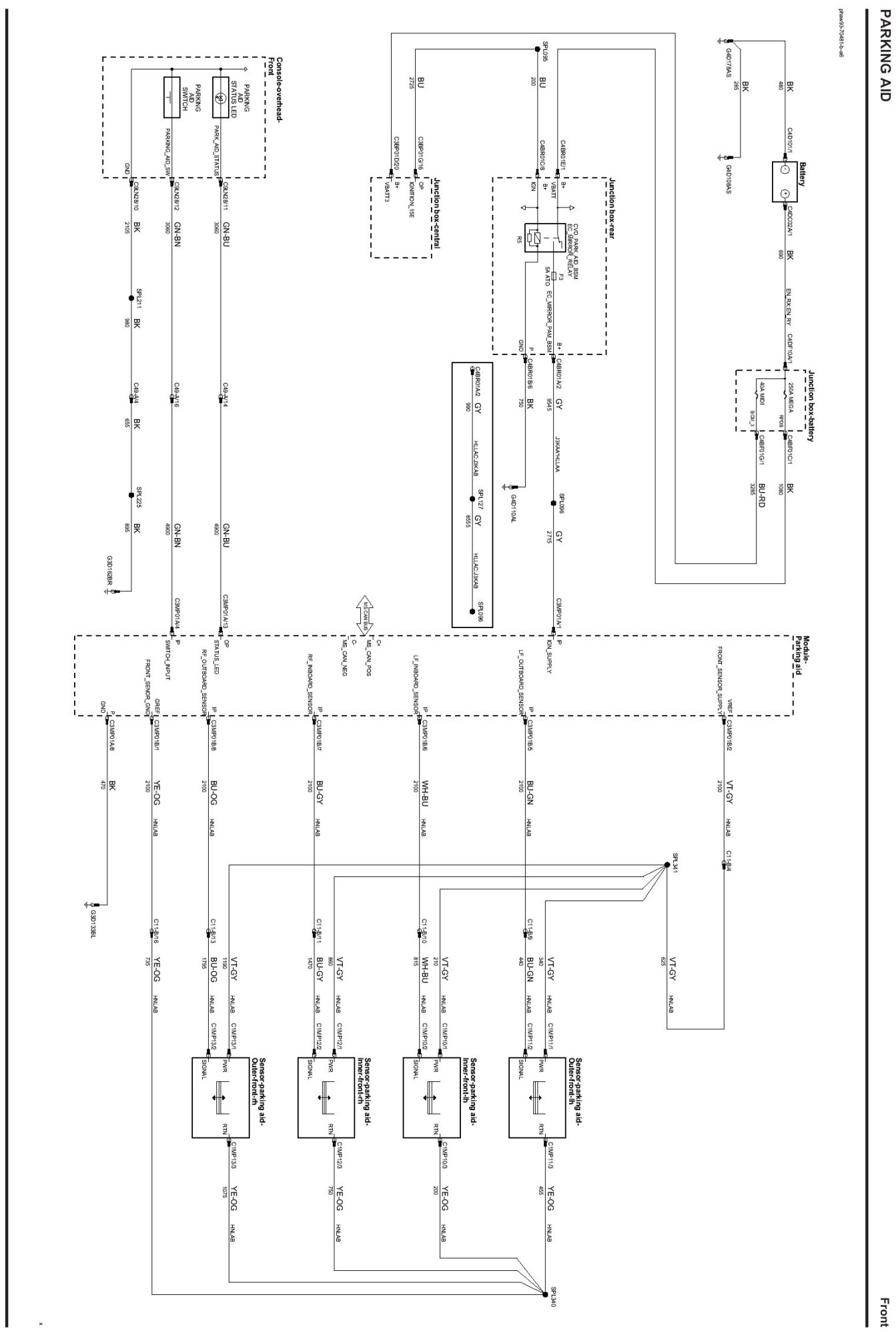

Front Parking Aid:
