Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Collision Avoidance and Parking Assist Systems
>>
Rear
Rear
Rear

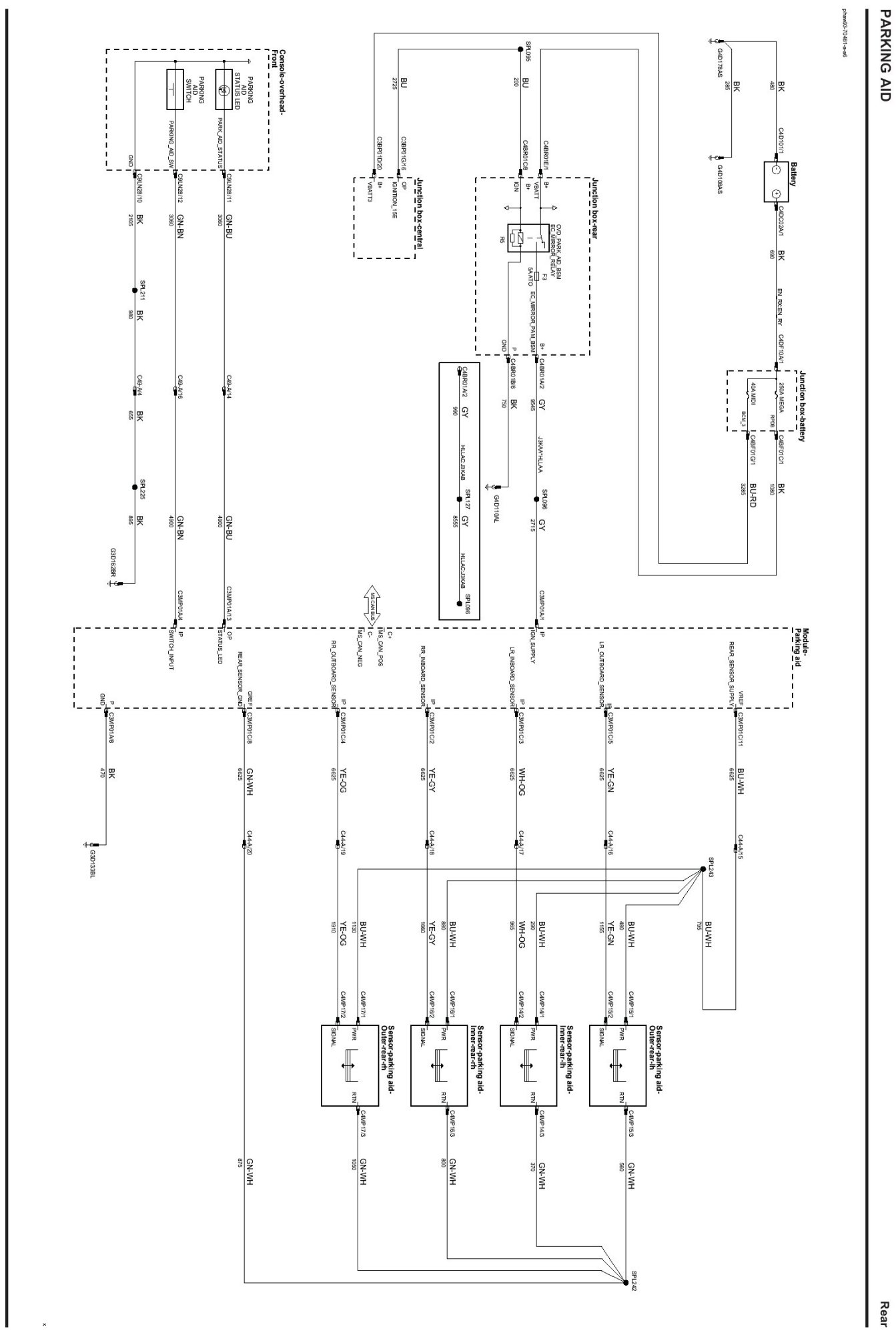

Rear Parking Aid:
