Switch Pack - Instrument Panel (Center)

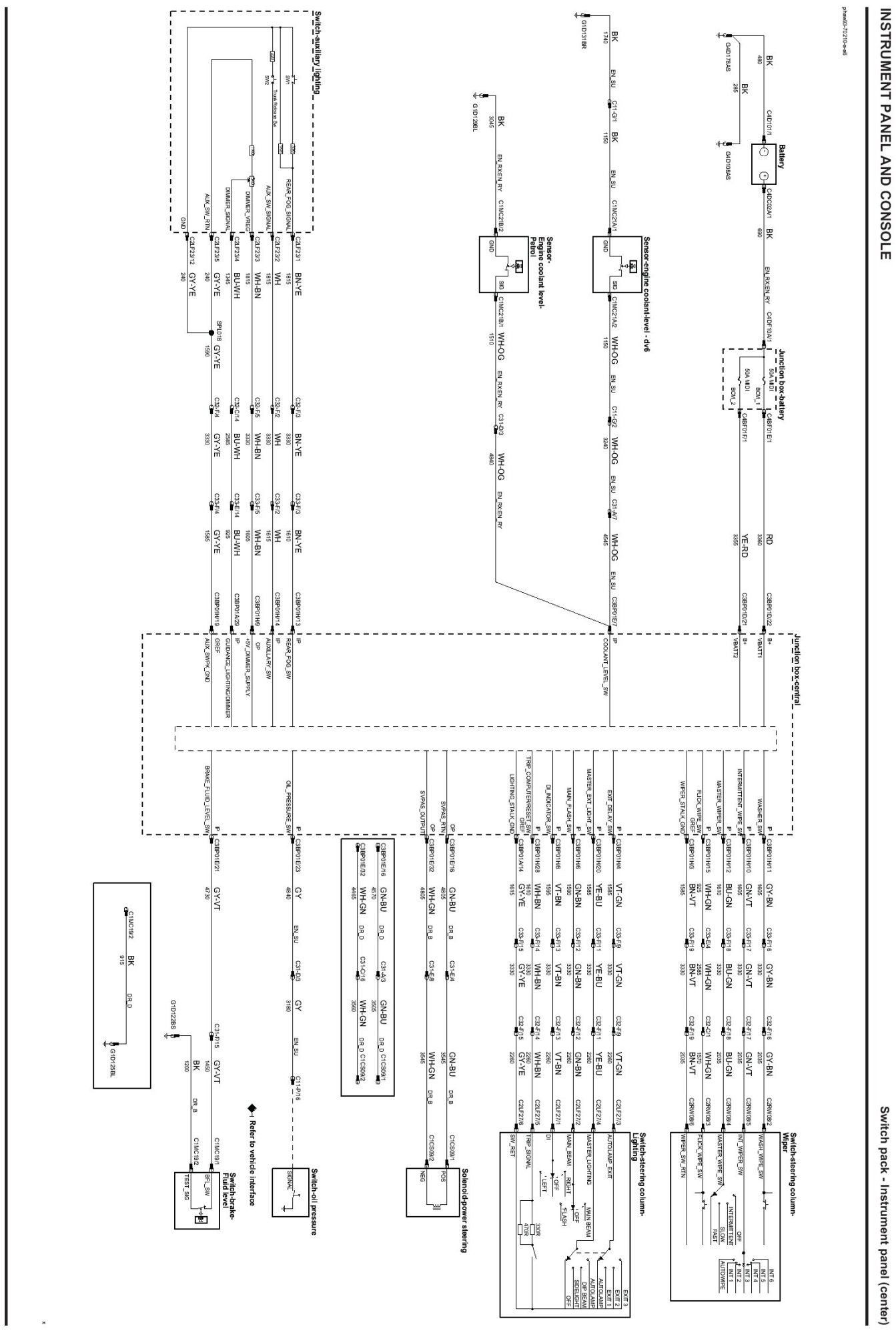

Switch Pack - Instrument Panel (Center) (Part 1):

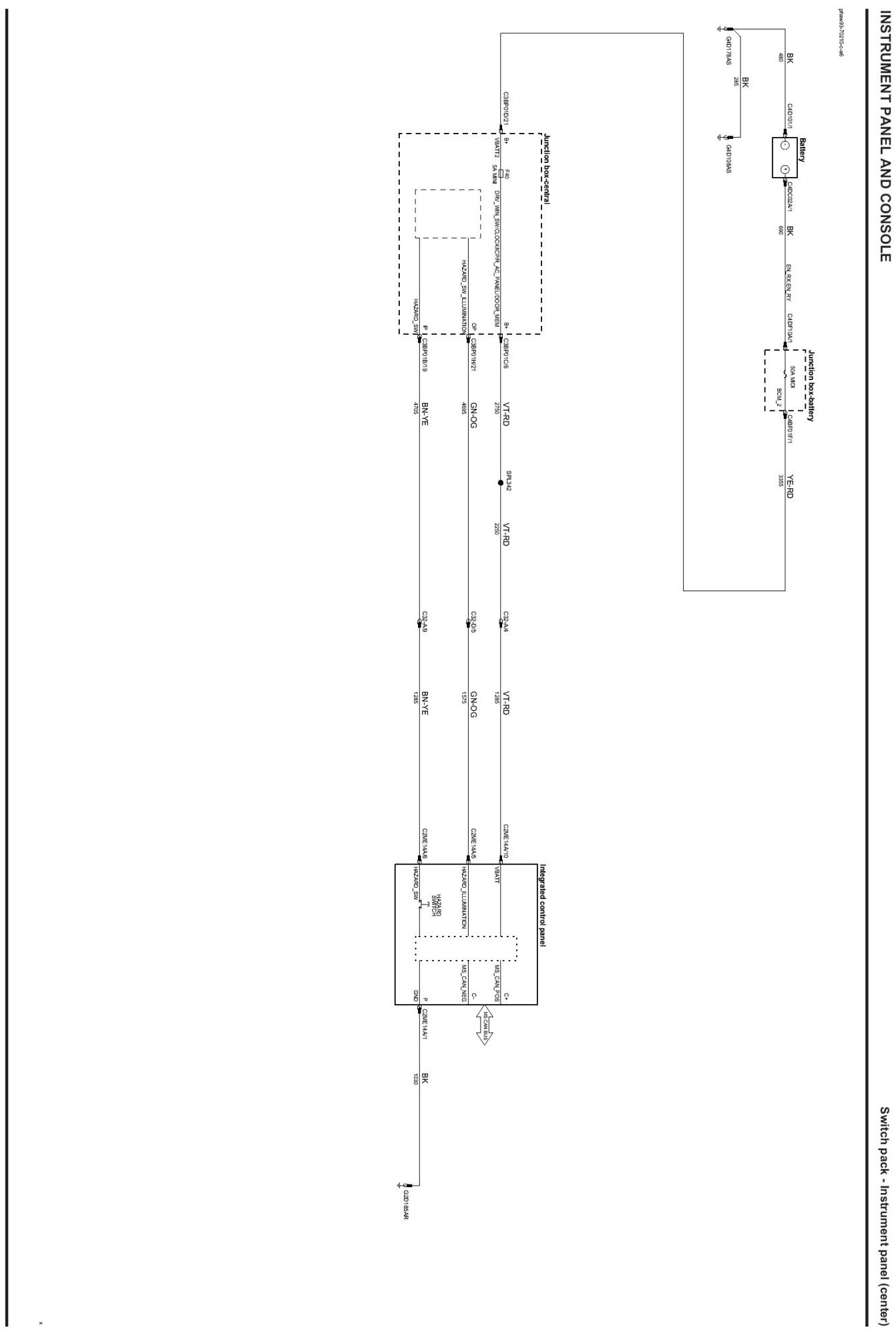

Switch Pack - Instrument Panel (Center) (Part 2):
