Jaguar
>>
2011
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Suspension Control ( Automatic - Electronic )
>>
Air Suspension
Air Suspension
Air
Suspension

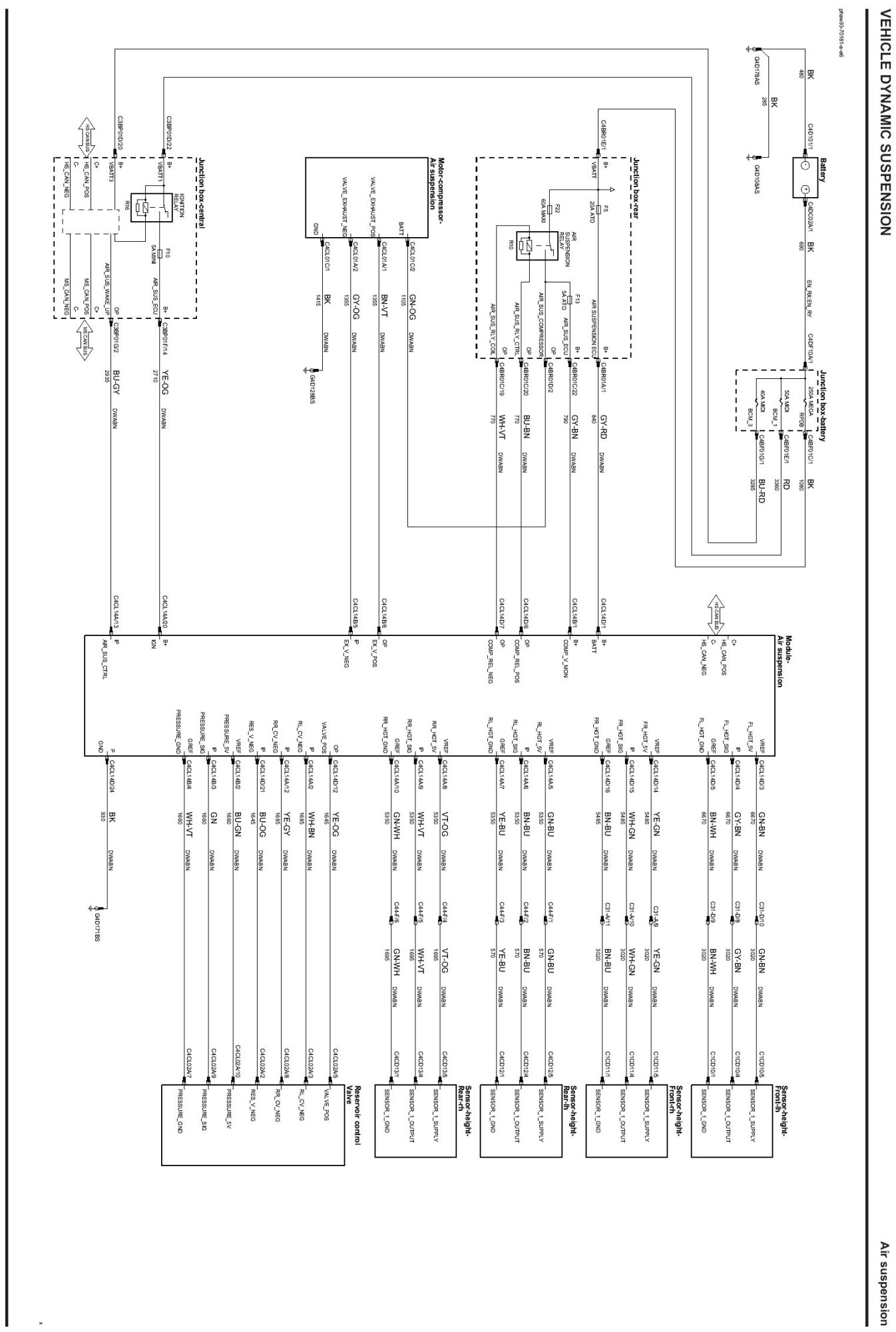

Air Suspension:
