Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Suspension Control ( Automatic - Electronic )
>>
Air Suspension With CVD
Air Suspension With CVD
Air
Suspension
With CVD

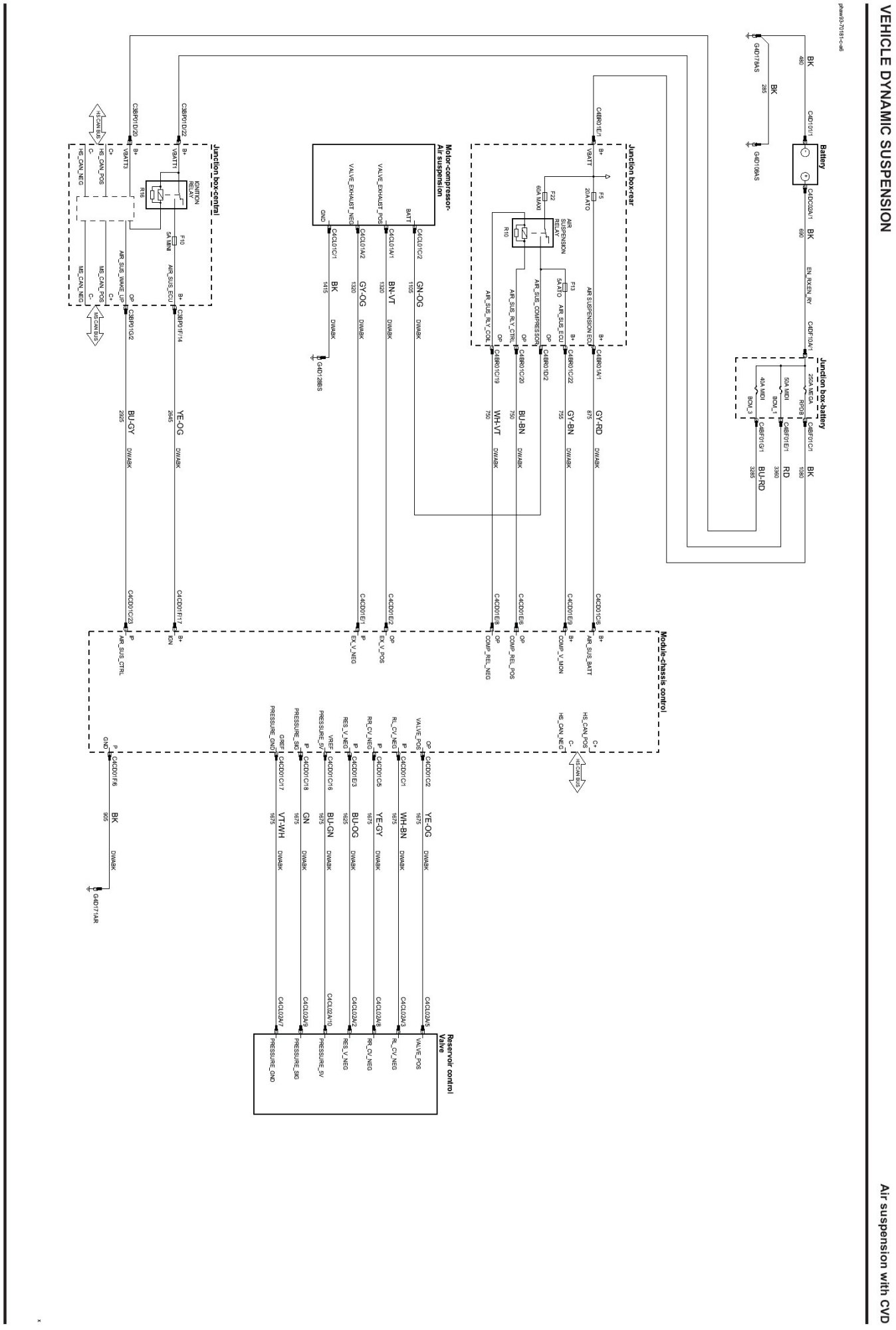

Air Suspension With CVD (Part 1):

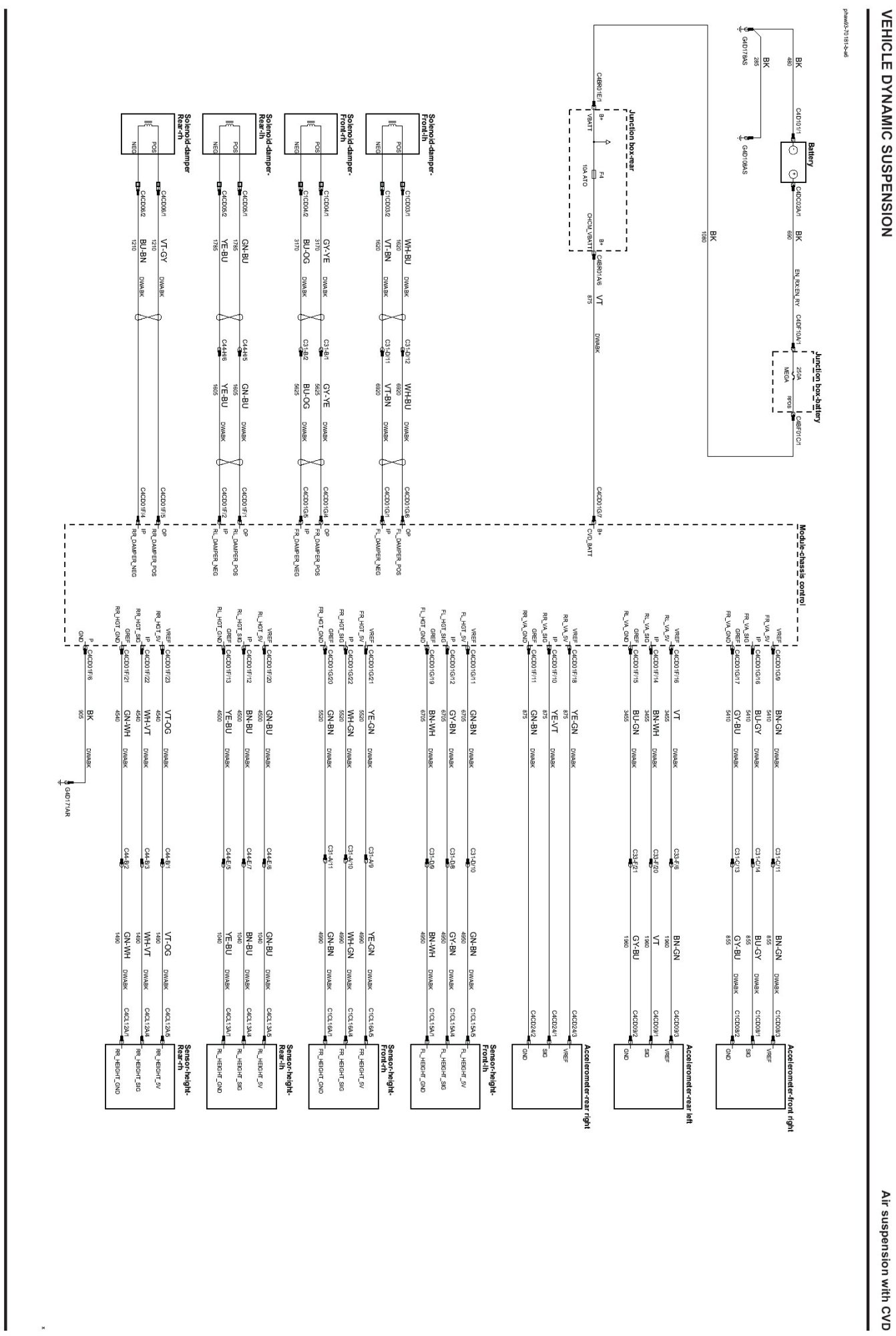

Air Suspension With CVD (Part 2):
