Climate Control
Climate Control

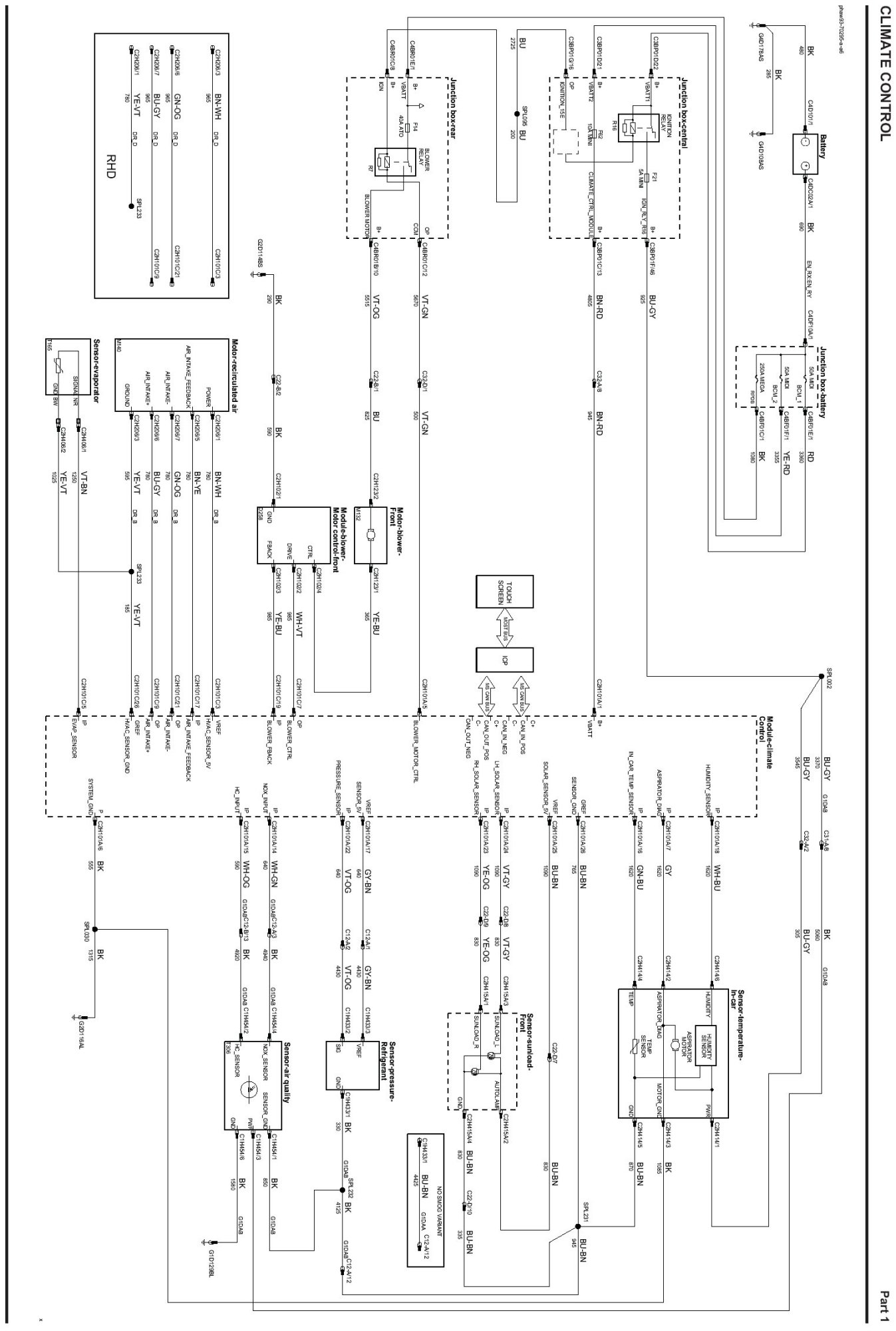

Climate Control (Part 1):

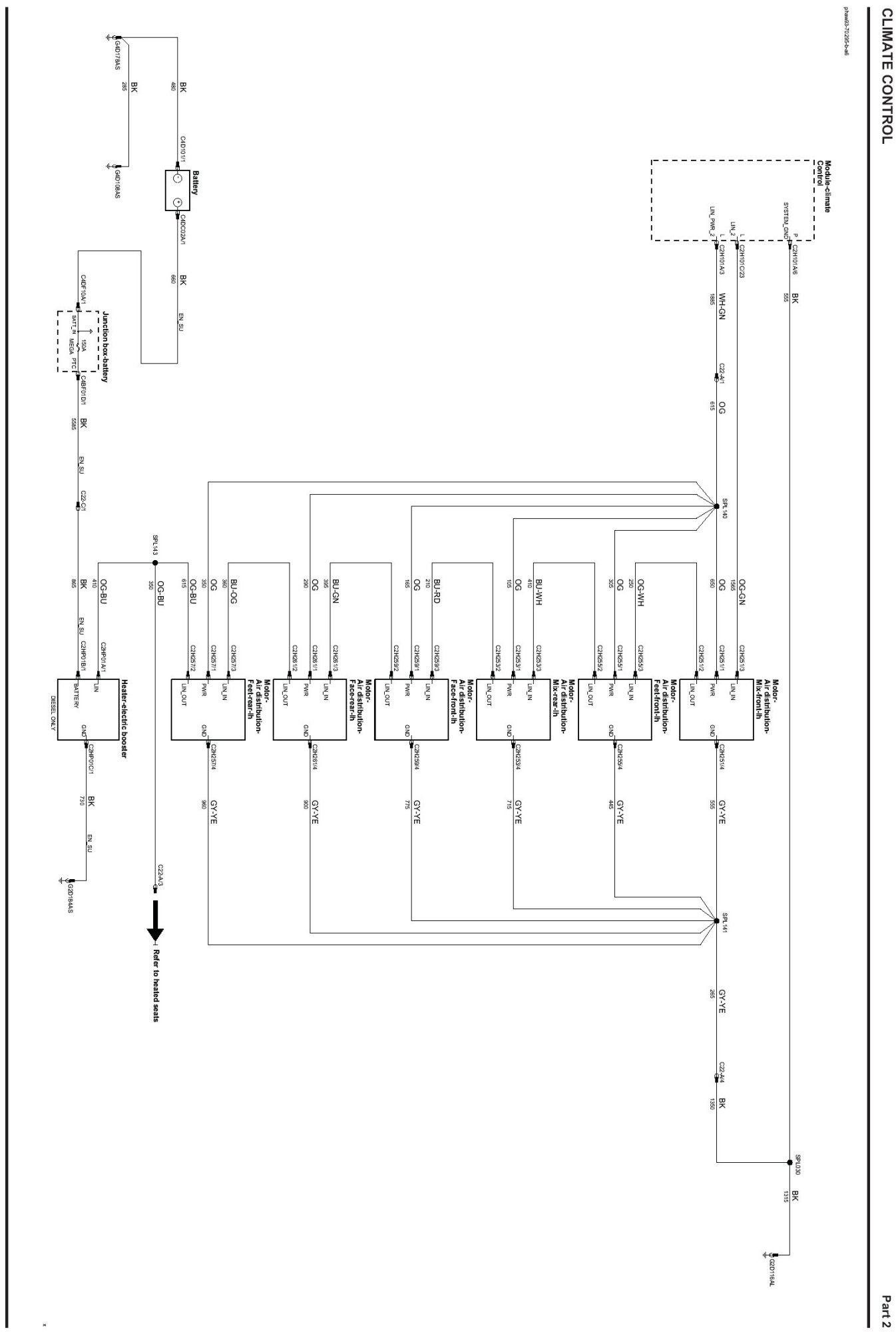

Climate Control (Part 2):
Climate Control (Part 3):

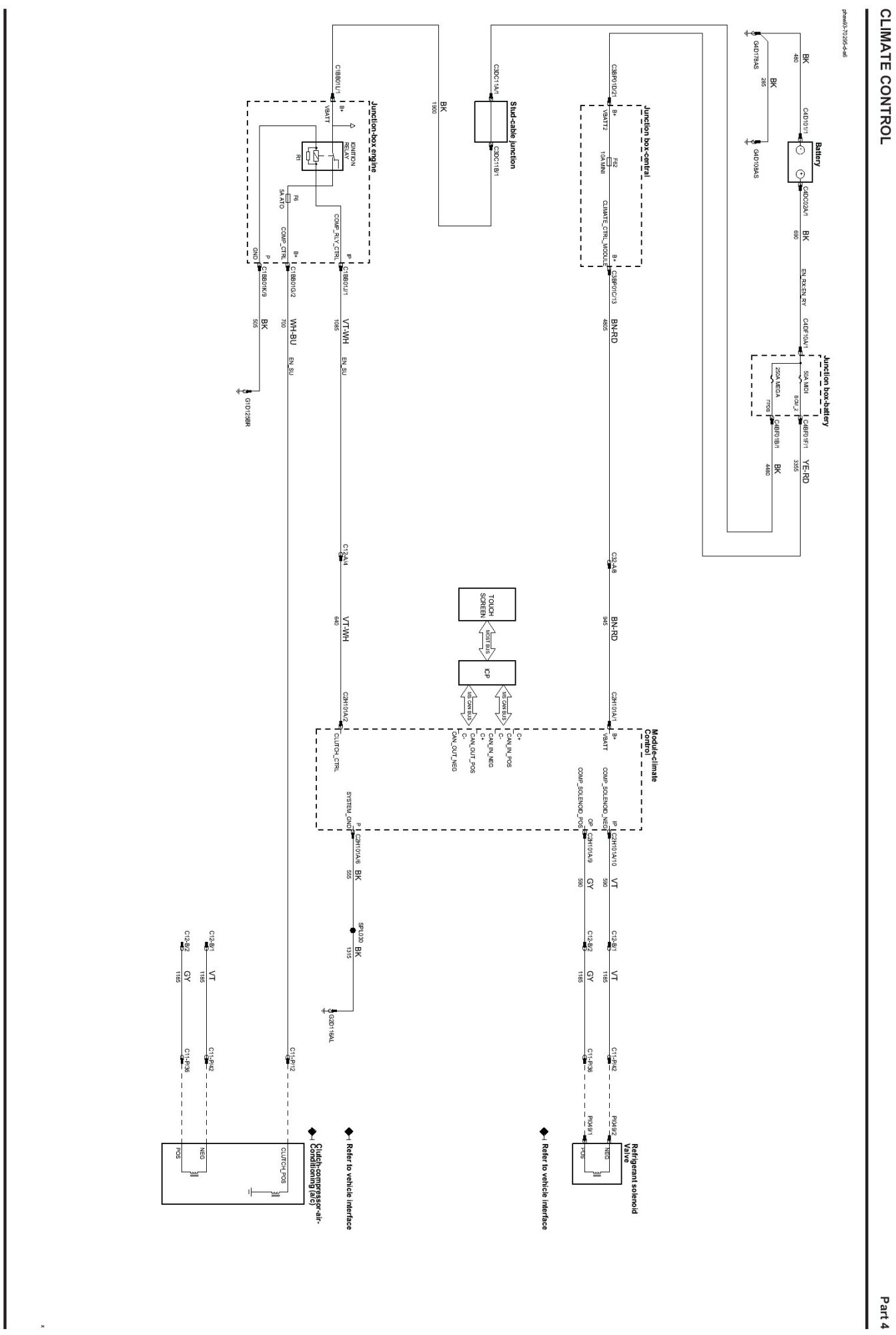

Climate Control (Part 4):
