Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

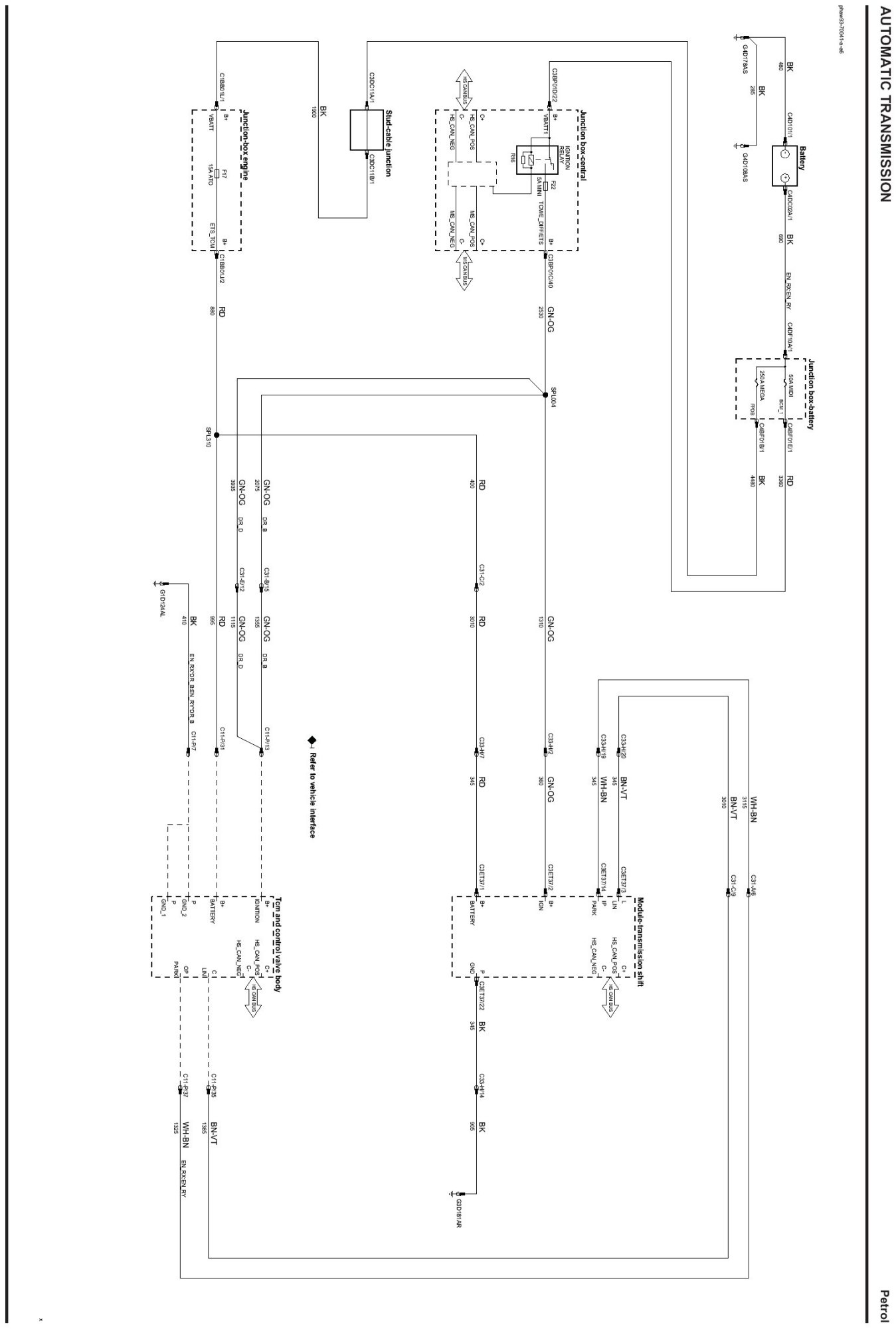

Automatic Transmission - Petrol
Automatic Transmission:
