Exterior Mirror

Exterior Mirror

Removal
1 Remove the front door trim panel. For additional information, refer to Front Door Trim Panel Service and Repair

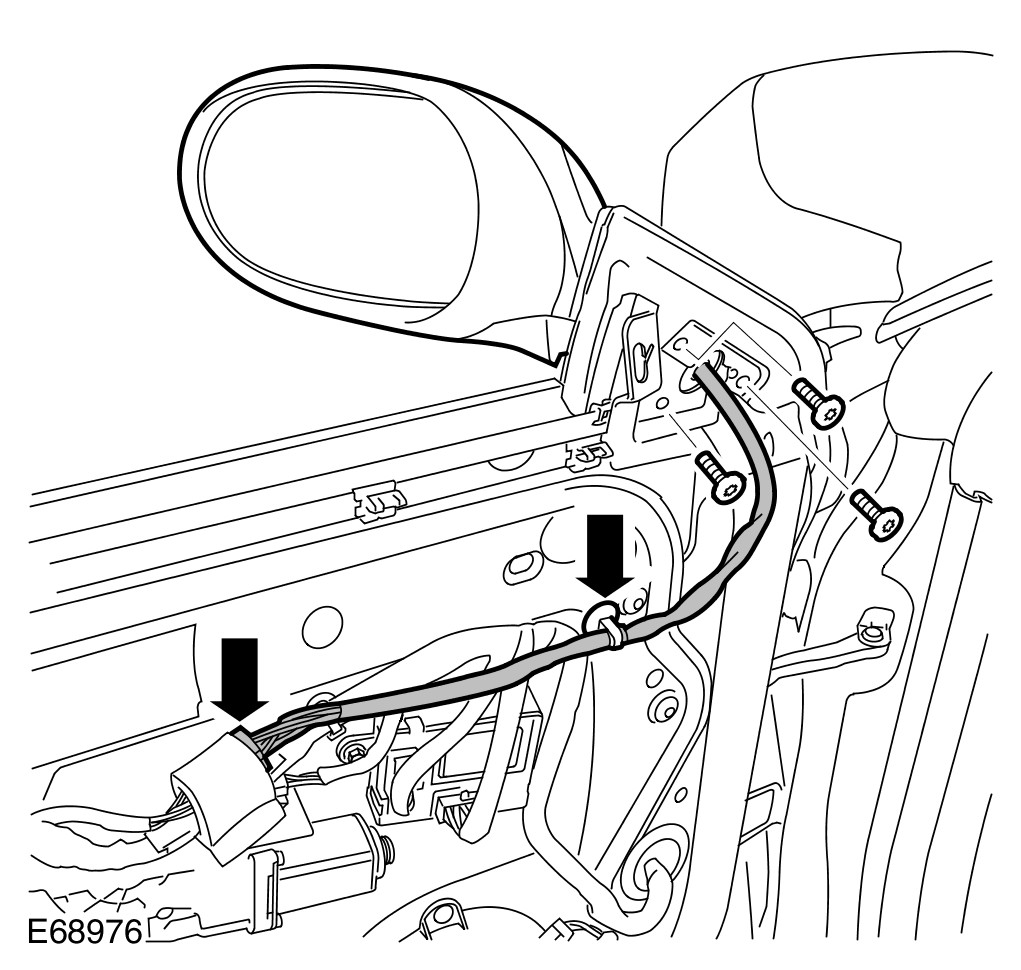

2 Remove the exterior mirror.
- Disconnect the 2 electrical connectors.
- Release the 2 wiring harness clips.
- Remove the 3 Torx bolts.

Installation
1 Install the exterior mirror.
- Tighten the Torx bolts to 10 Nm (7 lb.ft).
- Secure the wiring harness in the clips.
- Connect the electrical connectors.
2 Install the front door trim panel. For additional information, refer to Front Door Trim Panel Service and Repair
