Parking Brake System: Description and Operation
Parking Brake

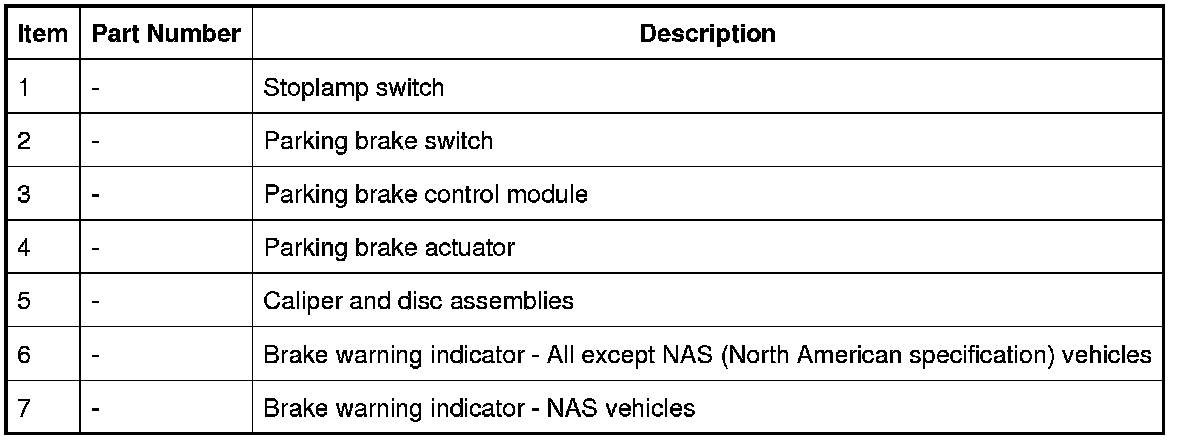

COMPONENT LOCATION
INTRODUCTION
The parking brake is an electrically actuated system that operates on the rear brake calipers. Two cables are connected to the rear brake calipers, and act directly on the same pistons used for normal, hydraulic rear brake actuation. For additional information, refer to Rear Disc Brake Rear Disc Brake
The parking brake is controlled by the parking brake control module. In response to commands from the driver through the parking brake switch, the module controls operation of the parking brake actuator. The actuator adjusts the tension of the brake cables to apply and release the rear brake calipers.
Features of the parking brake include:
- Manual apply
- Manual release
- Automatic apply
- Automatic release.
For more information on parking brake operation, refer to the Owner's Handbook.
PARKING BRAKE SWITCH

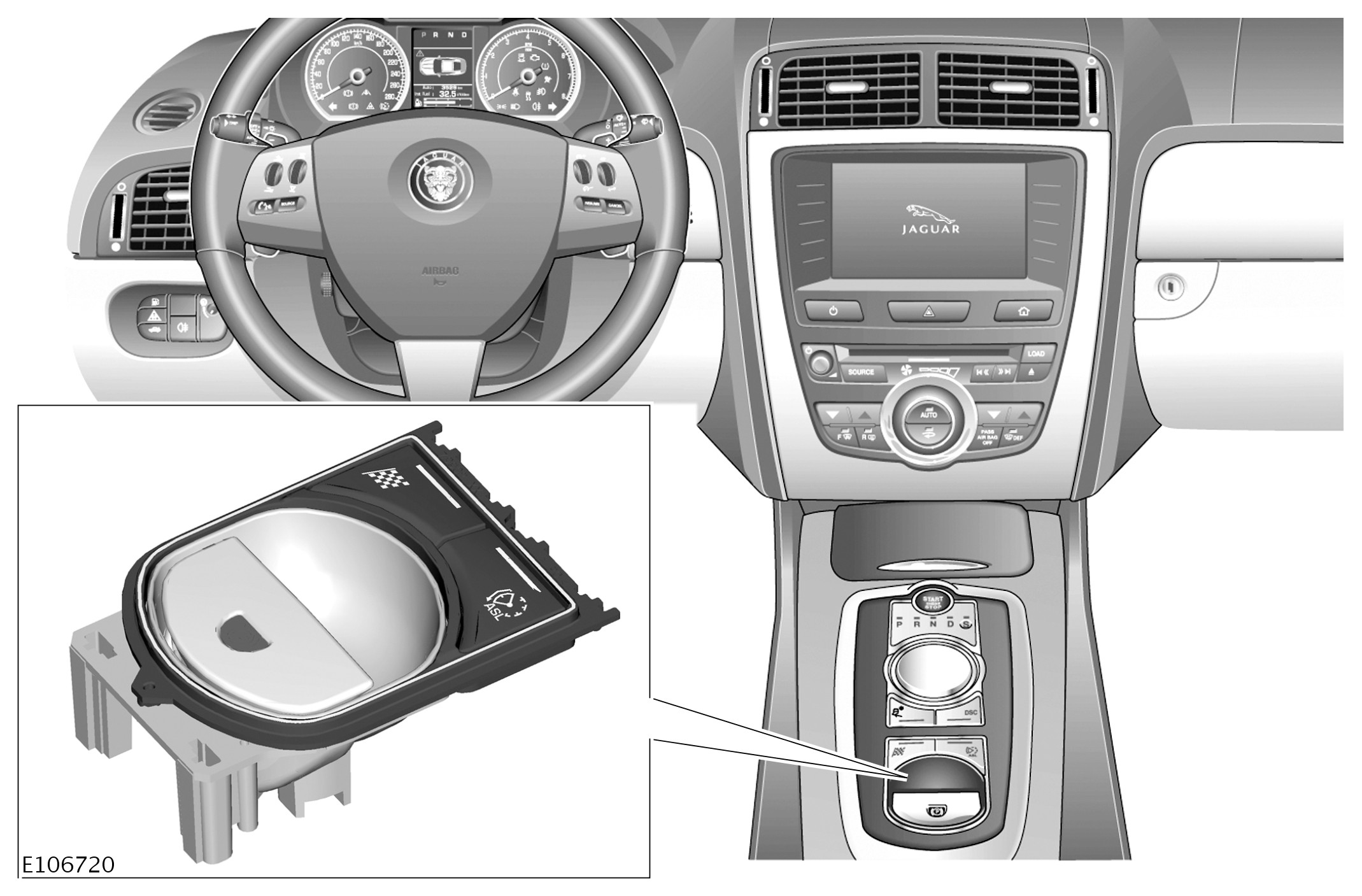

The parking brake switch is mounted in the floor console, rearward of the gear selector. The switch has three states:
- Apply: When the switch is pulled up to apply the parking brake
- Release: When the switch is pushed down to release the parking brake
- Neutral: The central default position. The switch returns to this position regardless of parking brake status.
The parking brake switch contains a pair of microswitches for both the apply and release actions. The parking brake control module provides an individual hardwired electrical feed to each of the 4 mircoswitches plus a single ground connection, allowing it to constantly monitor switch status.
PARKING BRAKE CONTROL MODULE
The parking brake control module is mounted behind the auxiliary junction box and is connected to the vehicles electrical wiring by two multiplugs. The control module is also connected to the high speed CAN (controller area network) bus, allowing it to communicate with other vehicle systems.
The control module monitors the condition of the parking brake switch through a series of hardwired electrical connections and controls operation of the parking brake actuator accordingly.
PARKING BRAKE ACTUATOR
The parking brake actuator is mounted on the rear cross beam, underneath the vehicle. Operation of the actuator is controlled by the control module in response to parking brake switch requests from the driver.
A hall sensor is located within the actuator and provides positional information back to the control module. The principle function of the hall sensor is to ensure the actuator fully releases the parking brake when a static release request is made. The signal provided by the hall sensor is compared to configuration information contained within the control module software to determine when a full release has been carried out.
Further information on the hall sensor can be found in the 'Principles of Operation' section below.
STOPLAMP SWITCH
The stoplamp switch is mounted on the brake pedal bracket. One of the prerequisites for releasing the parking brake is that the foot brake is applied. The parking brake control module is able to determine the position of the footbrake by monitoring the status of the stoplamp switch via a hardwired electrical connection.
The stoplamp switch also forms part of the ABS (anti-lock brake system) and the speed control system. For additional information, refer to Speed Control Description and Operation
INSTRUMENT CLUSTER
Depending on market specification, the instrument cluster may contain a red and an amber brake warning indicator, or only a red brake warning indicator. The functionality of the warning indicators is shown in the table below.
If a parking brake failure warning indicator is active, the message 'CANNOT APPLY PARK BRAKE' or 'PARK BRAKE FAULT' will also appear in the instrument cluster message center. If the vehicle is moving with the parking brake applied, the message 'PARK BRAKE ON' will appear in the message center accompanied by a chime from the instrument cluster. For additional information, refer to Information and Message Center
NOTE:
NAS vehicles utilize different instrument cluster symbols and brake warning indicators.
CONTROL DIAGRAM
NOTE:
A = Hardwired; D = High speed CAN (controller area network) bus
PRINCIPLES OF OPERATION
Static Apply
The parking brake control module receives a vehicle speed signal from the ABS (anti-lock brake system) module on the high speed CAN (controller area network) bus. If the parking brake switch is pulled to the 'Apply' position and vehicle speed is less than 2 mph (3 km/h), the control module will instigate its 'Static Apply' mode and drive the actuator to apply full parking brake force to the rear wheels.
The parking brake control module monitors the current drawn by the actuator and compares this to information held within its configuration software to determine when full braking force has been applied.
Dynamic Apply
There are two 'Dynamic Apply' modes; low speed dynamic and high speed dynamic. The low speed dynamic mode operates at speeds between 2 mph (3 km/h) and 20 mph (32 km/h). The high speed dynamic mode operates at speeds above 20 mph (32 km/h)
If the parking brake switch is pulled up to the 'Apply' position and vehicle speed is within the low speed dynamic range, the control module drives the actuator to apply full parking brake force to the rear wheels.
If the parking brake switch is pulled up to the 'Apply' position and vehicle speed is within the high speed dynamic range, the control module will apply braking force to the rear wheels at a slower rate until full braking load is reached or the switch is released. The rate with which braking force is applied is controlled by the control module, which monitors both current drawn by the actuator and positional information from the actuator hall sensor and compares this to information held within its configuration software.
Drive Away Release
The parking brake control module will initiate its 'Drive Away Release' function and automatically release the parking brake if the following conditions are detected:
- The engine is running
- D (drive), or R (reverse) is selected
- Positive throttle movement is detected
The control module receives messages of gear selector lever position and throttle angle over the high speed CAN (controller area network) bus from the gear selector module and the ECM (engine control module) respectively.
Release from Park
The parking brake control module will initiate its 'Release from Park' function and automatically release the parking brake if the gear selector is moved from P (park) to any position except N (neutral).
NOTE:
A 'between gears' positioning of the gear selector level will not initiate 'Release from Park'.
Repairs
Before carrying out any work on the parking brake system, the Jaguar approved diagnostic tester must be connected and the 'parking brake unjam' routine run. The routine can be found in the 'Vehicle Configuration' area, under the 'Set-up and Configuration' menu. After any work has been carried out on the parking brake, the system will require resetting.
CAUTION: Do not use the 'Emergency Release' tool to allow work to be carried out on the parking brake. Work can only be carried out on the parking brake system after the 'parking brake unjam' routine has been run.
Resetting
If the electrical supply is disconnected from the parking brake control module, the actuator will loose its position memory. On battery re-connection and ignition on, 'APPLY FOOT AND PARK BRAKE' will be displayed in the instrument cluster message center indicating the parking brake requires resetting. To reset the parking brake, press and hold the foot brake. While holding the foot brake in position, move the parking brake switch to the 'Apply' position.
Operating Voltages
The control module will only operate the actuator if the power supply from the battery is between 9 V and 16 V. At any voltage within this range, the actuator is able to fully tighten and release the brake cables. If the power supply falls outside of the range, a fault code is stored in the parking brake control module and can be retrieved using a Jaguar approved diagnostic tester. For additional information, refer to Parking Brake Testing and Inspection
