Fog/Driving Lamp: Adjustments

Front Fog Lamp Adjustment
1 Align the beam setting equipment to one fog lamp.
2
NOTE:
The fog lamp beam should be set at 1.2% below the horizontal and parallel.
Check the fog lamp beam alignment.
3 Turn the steering on to full lock for access.




4
NOTE:
Wheel shown removed for clarity.
Release the front of the fender splash shield.
- Remove the 7 Torx bolts.
- Tie the splash shield aside.

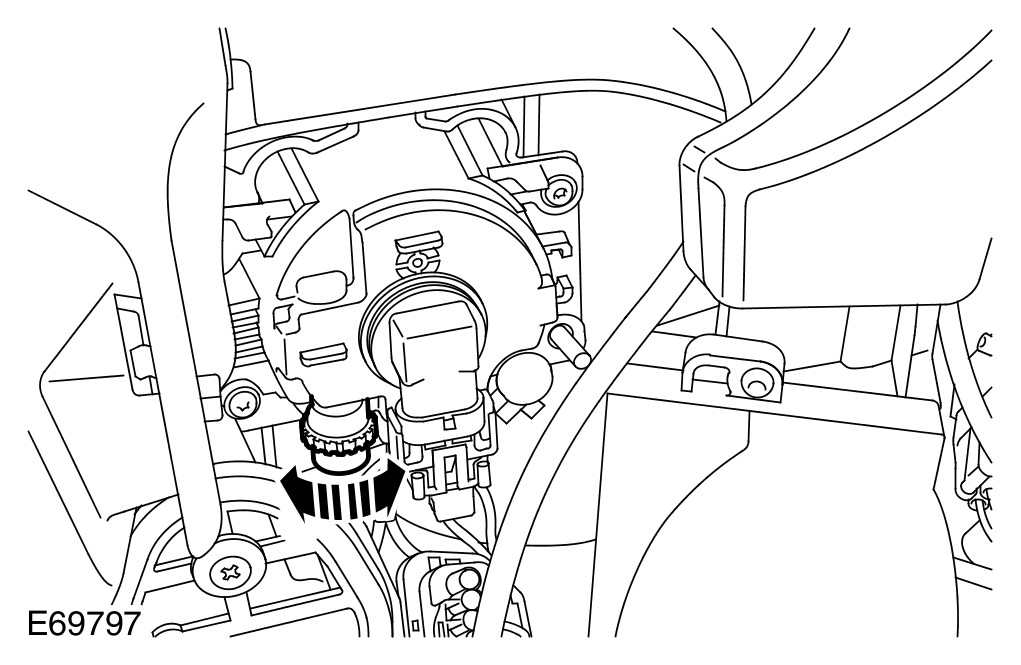

5 Adjust the fog lamp using the thumb wheel.
6 Install the fender splash shield.
- Tighten the Torx bolts.
7 To adjust the second fog lamp, repeat the above procedure.
