Antenna: Service and Repair

Antenna

Removal
1 Remove the RH rear quarter trim panel.
2 Raise the vehicle on the lift.

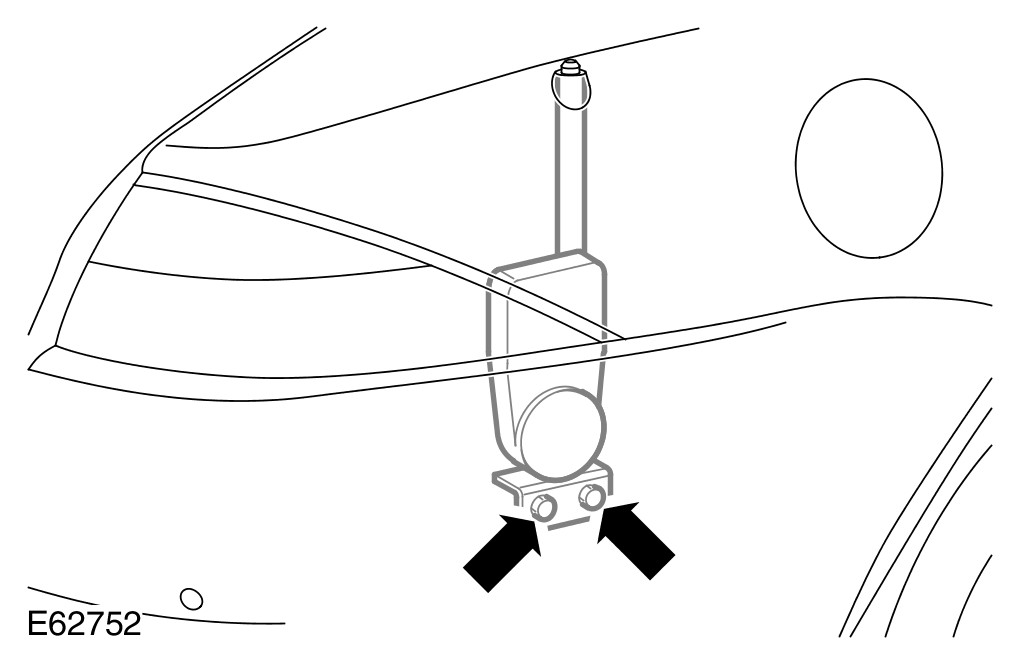

3 Release the antenna.
- Remove the 2 nuts.
4 Lower the vehicle.

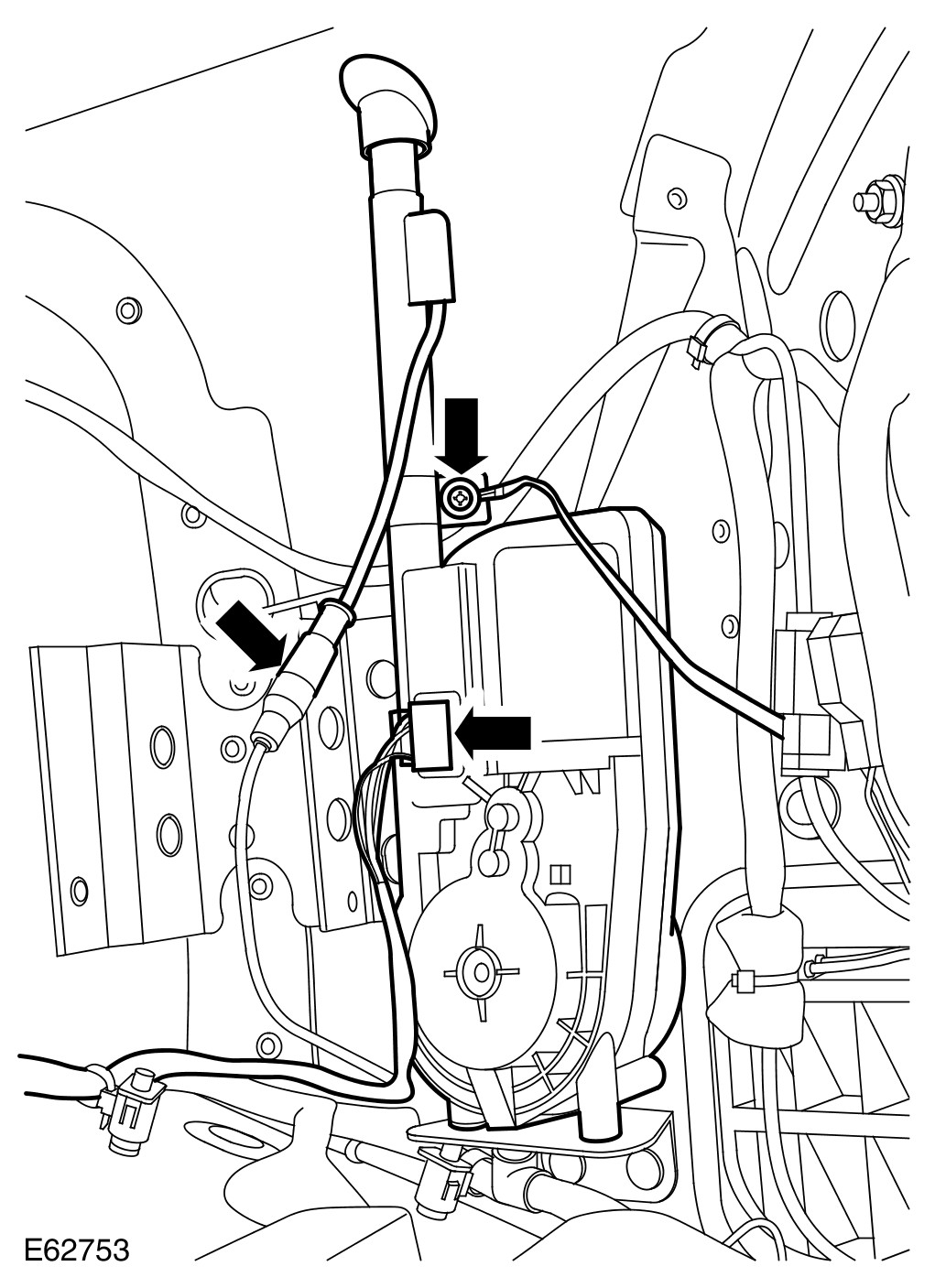

5 Remove the antenna.
- Disconnect the antenna cable.
- Disconnect the electrical connector.
- Disconnect the antenna earth strap.

Installation
1 Install the antenna.
- Connect the antenna cable.
- Connect the electrical connector.
- Connect the antenna earth strap.
2 Raise the vehicle on the lift.
3 Secure the antenna.
- Tighten the nuts to 10 Nm (7 lb.ft).
4 Lower the vehicle.
5 Install the RH rear quarter trim panel.
