Radio, Stereo, and Compact Disc: Service and Repair

Audio Unit

Removal

NOTE:
This component is easily recognized as a CD multichanger, it is however an audio module and links to the MOST.
1 Disconnect the battery ground cable. For additional information, refer to Specifications
2 Remove the navigation screen module. For additional information, refer to Navigation System Display Module Service and Repair

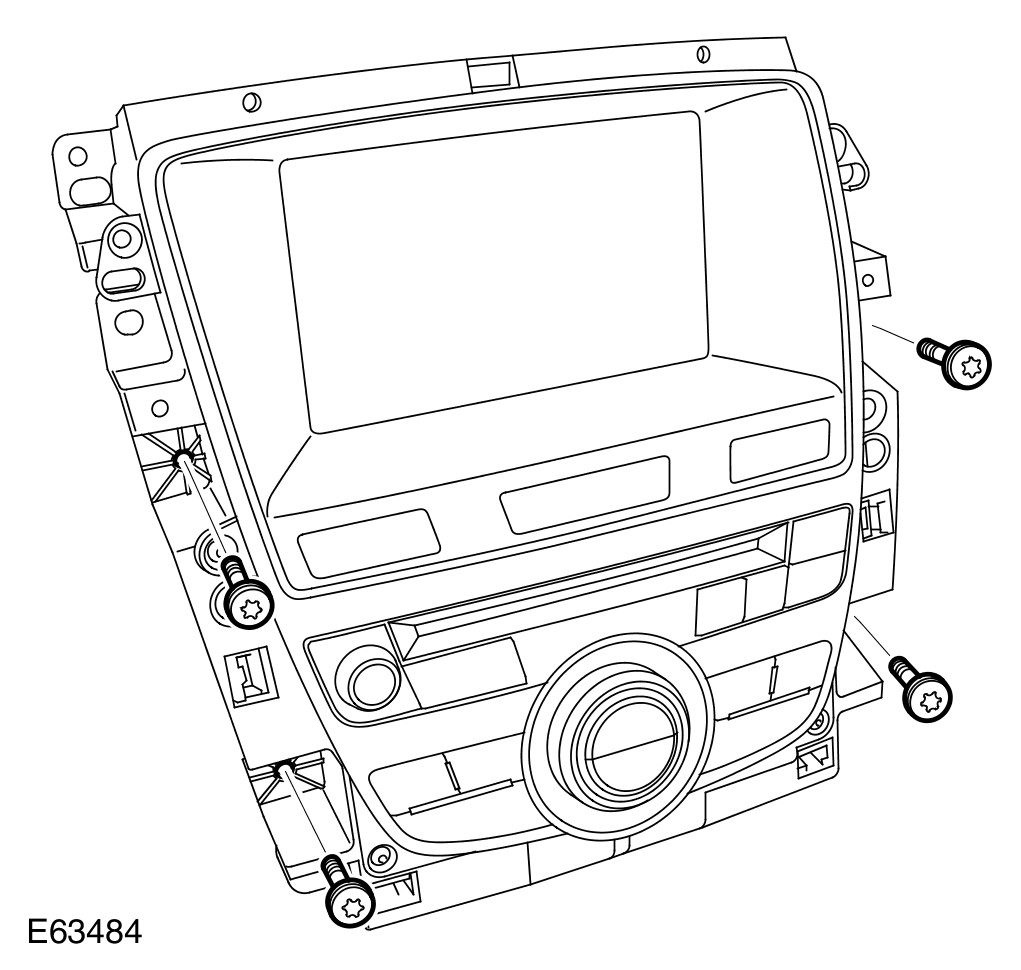

3 Release the audio/CD module and climatic control assembly.
- Remove the 4 module bracket Torx bolts.




4

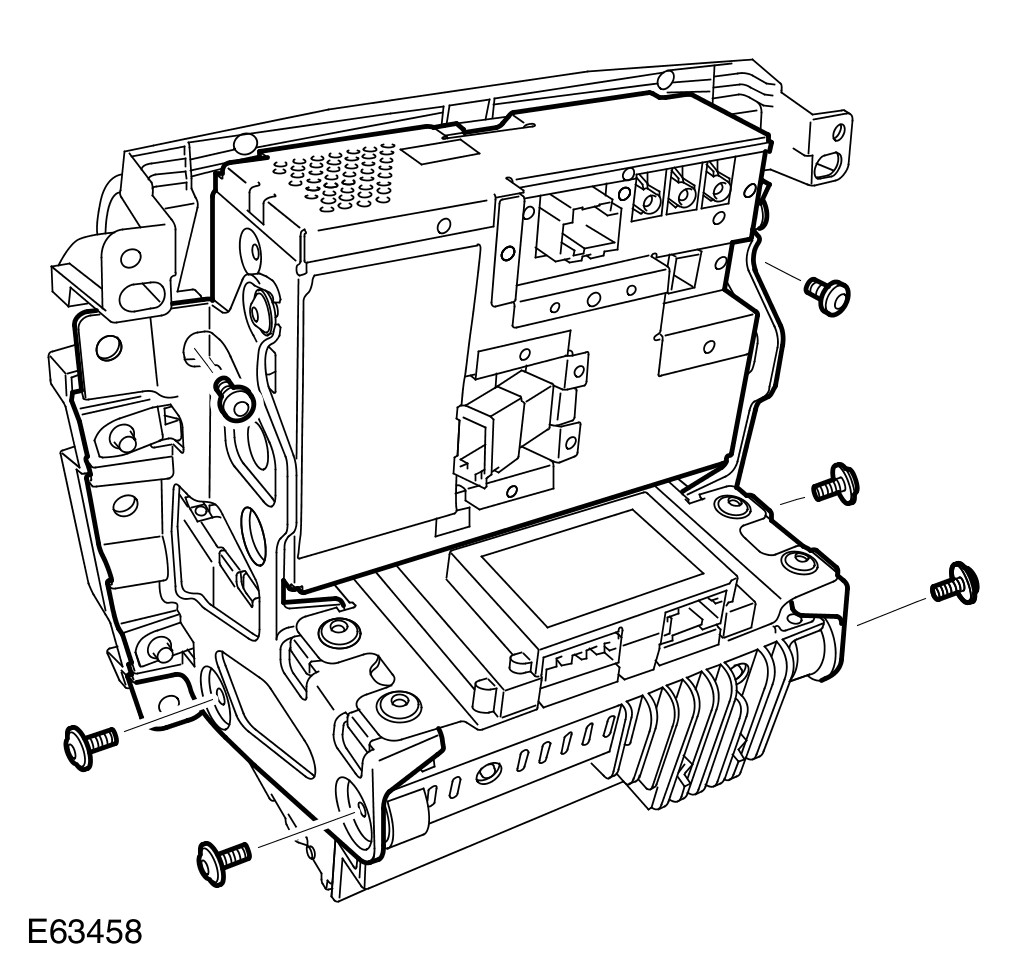

CAUTION: Care must be taken to avoid damage to the mating surfaces.
Separate the climatic control and audio/CD module from the module bracket.
- Remove 2 Torx screws securing the navigation screen to the climatic control assembly.
- Remove the 4 Torx bolts.

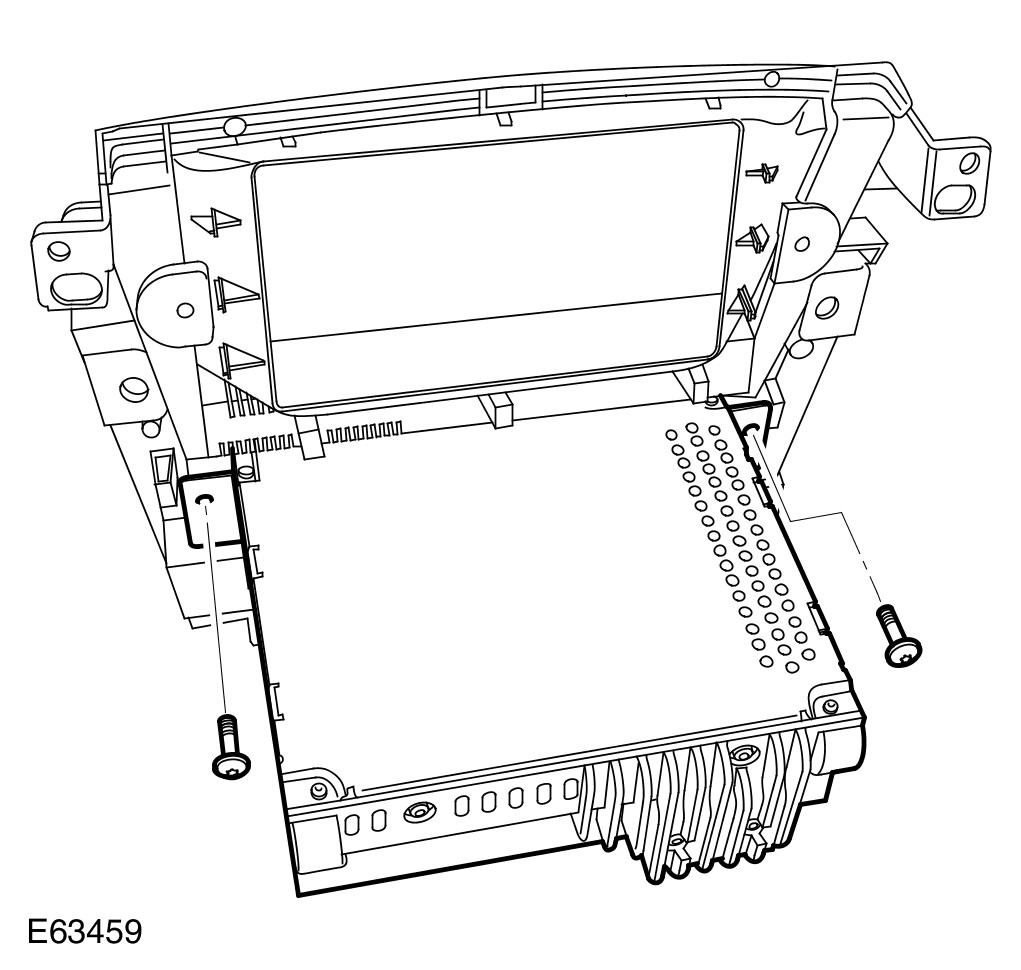

5 Remove the CD unit.
- Remove the 2 Torx screws.

Installation
1
NOTE:
Carefully check the CD access slot in the climatic control assembly is aligned to the CD unit after tightening the screws. This is a visual check only, do not attempt to probe the CD unit with a sharp object or load a CD.
Carefully install the audio/CD module to the climatic control assembly.
- Tighten the Torx screws.
2 Install the climatic control assembly and audio/CD module to the module bracket.
- Install and tighten the navigation screen Torx screws.
- Install the CD module bracket Torx bolts and tighten to 6 Nm (4 lb.ft).
- Install the climatic control assembly Torx bolts and tighten to 6 Nm (4 lb.ft).
3 Install the navigation screen module. For additional information, refer to Navigation System Display Module Service and Repair
4 Connect the battery ground cable. For additional information, refer to Specifications
5 Connect WDS to the vehicle and configure a new module.
