Doors: Service and Repair

Door

Removal
1 Remove the cover and disconnect the battery ground cable. For additional information, refer to Specifications
2 Remove the front door trim panel. For additional information, refer to Front Door Trim Panel Service and Repair

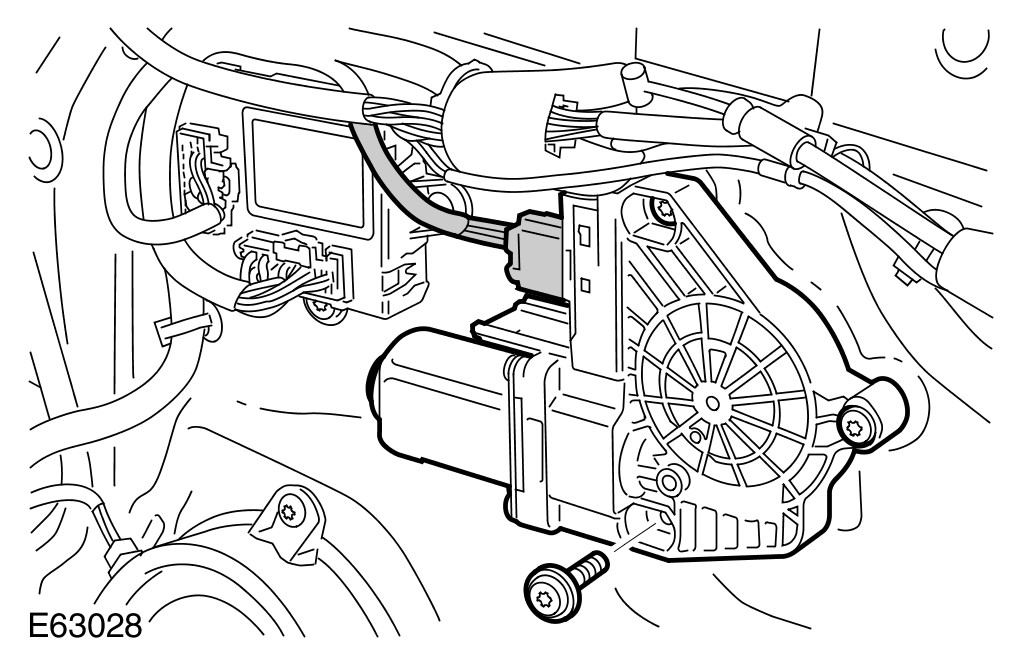

3 Remove the window regulator motor.
- Disconnect the electrical connector.
- Remove the 3 Torx screws.




4 Release the front door inner weathershield.
- Disconnect the 3 electrical connectors.
- Release the 9 wiring harness clips.

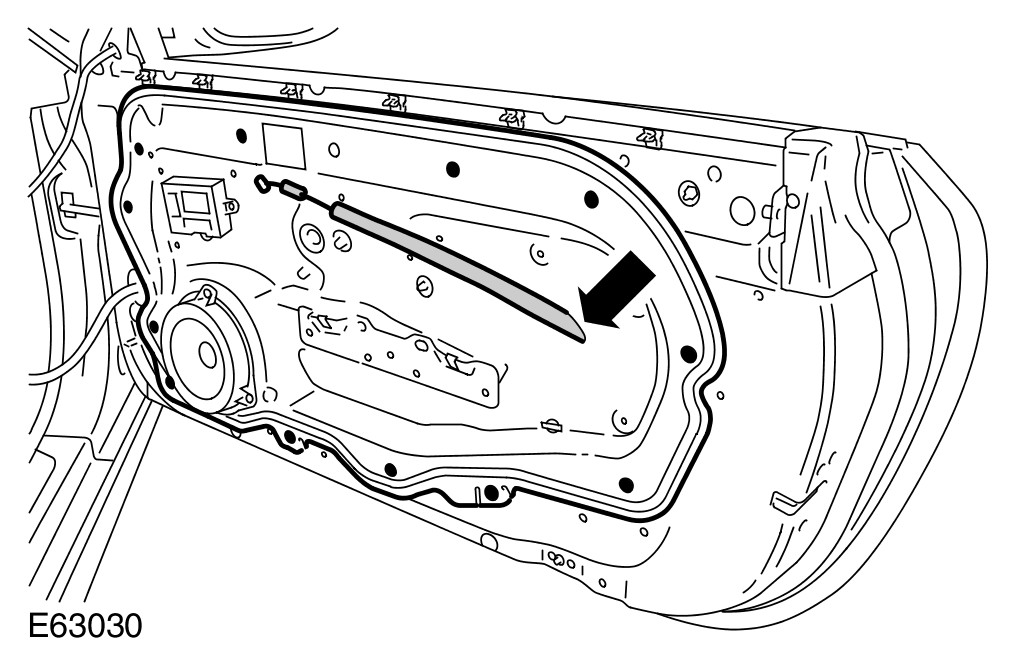

5 Remove the front door inner weathershield.
- Remove the 12 Torx bolts.
- Release the front door interior handle cable.

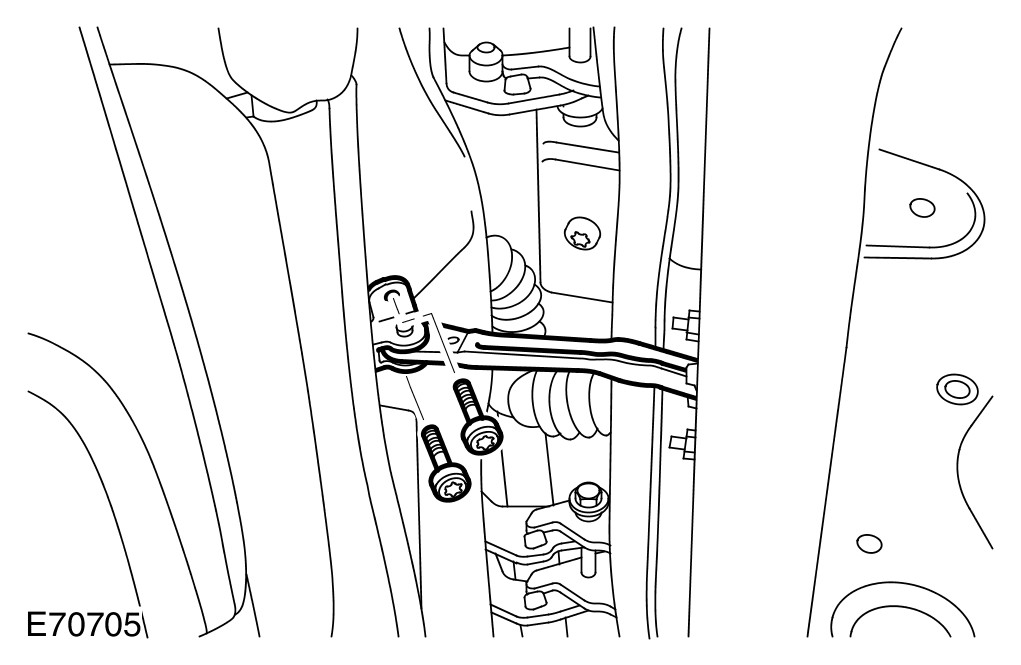

6 Release the door check strap from the body.
- Remove the 2 Torx screws.

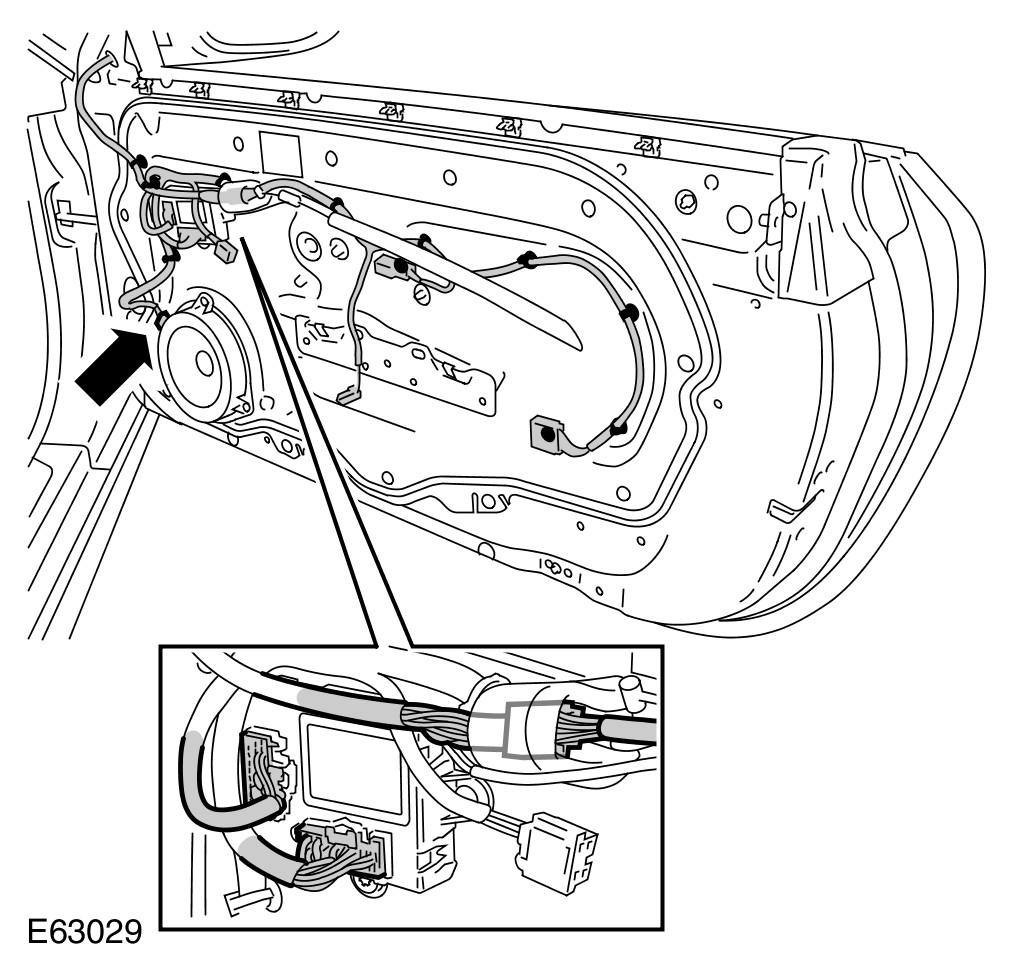

7 Release the door harness from the door.
- Release the 5 clips.
- Disconnect the 2 electrical connectors.
- Release from the locating grommet.




8
NOTE:
With assistance remove the component.
Remove the door.

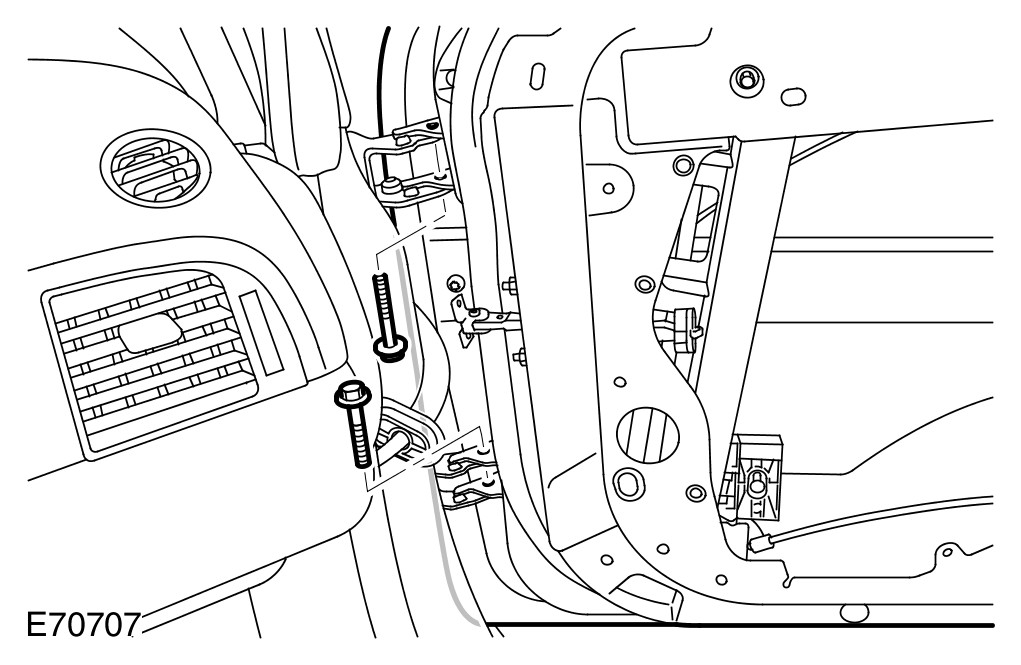

- Remove the 2 hinge bolts.

Installation
1 With assistance, install the door assembly.
- Lubricate the hinges and bolts tighten to 25 Nm (18 lb.ft).
2 Install the door wiring harness.
- Secure in the grommets.
- Connect the electrical connectors.
- Secure the clips.
3 Install the door check strap.
- Tighten the Torx screws to 10 Nm (7 lb.ft).
4 Install the front door inner weathershield.
- Attach the front door interior handle cable.
- Tighten the Torx bolt to 10 Nm (7 lb.ft).
5 Secure the front door inner weathershield.
- Secure the wiring harness clips.
- Connect the electrical connectors.
6 Install the window regulator motor.
- Install and tighten the Torx screws.
- Connect the electrical connector.
7 Install the front door trim panel. For additional information, refer to Front Door Trim Panel Service and Repair
8 Connect the battery ground cable and install the cover. For additional information, refer to Specifications
