Front End Sheet Metal Repairs
Front End Sheet Metal Repairs

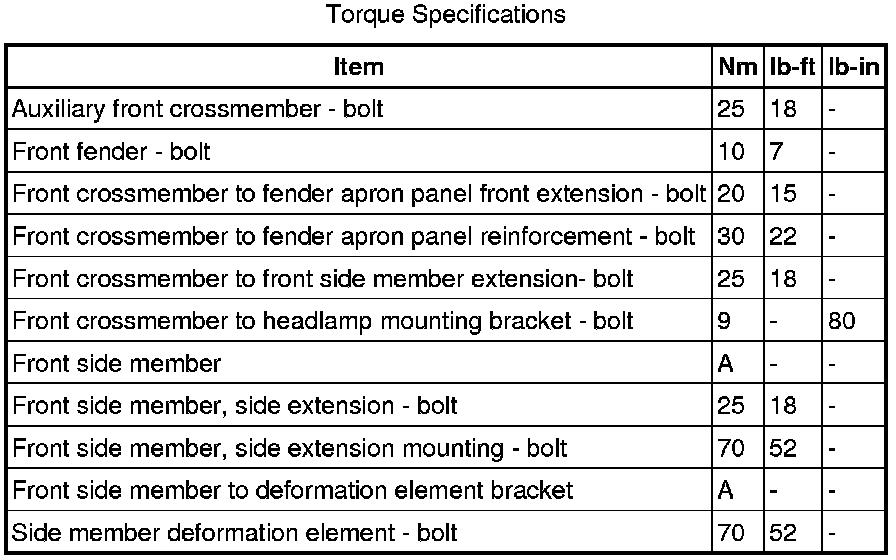

Specifications
A = refer to Removal and Installation procedure.
