PS001
PS001
PS001

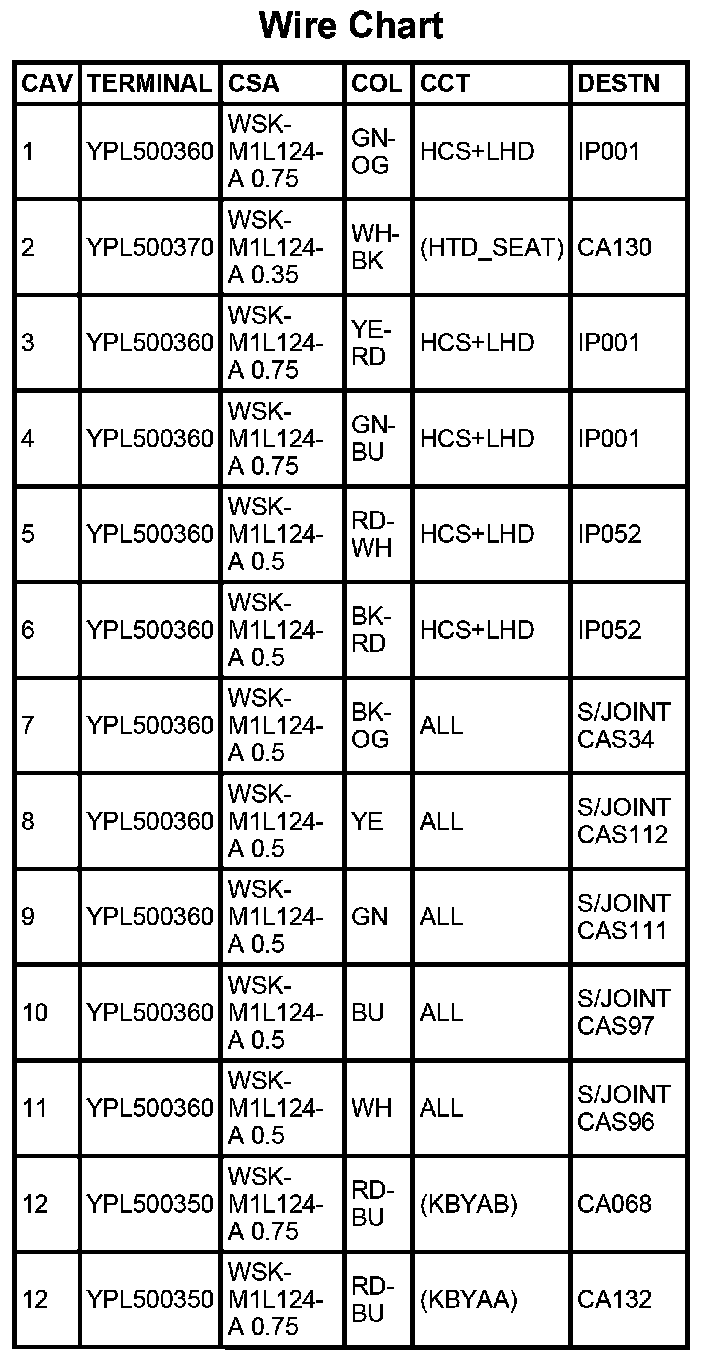

PS001 (Part 1):

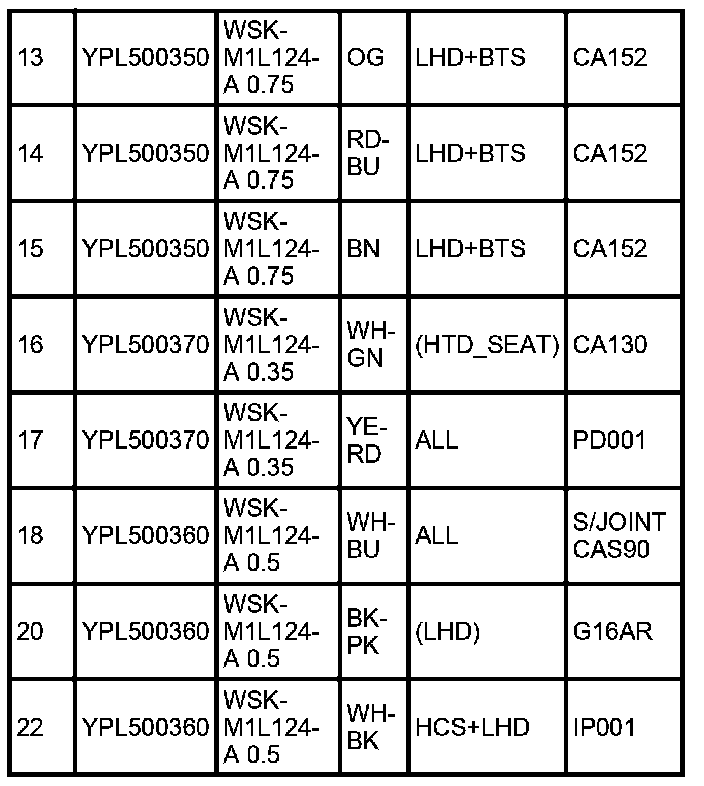

PS001 (Part 2):
PS001 (Part 3):

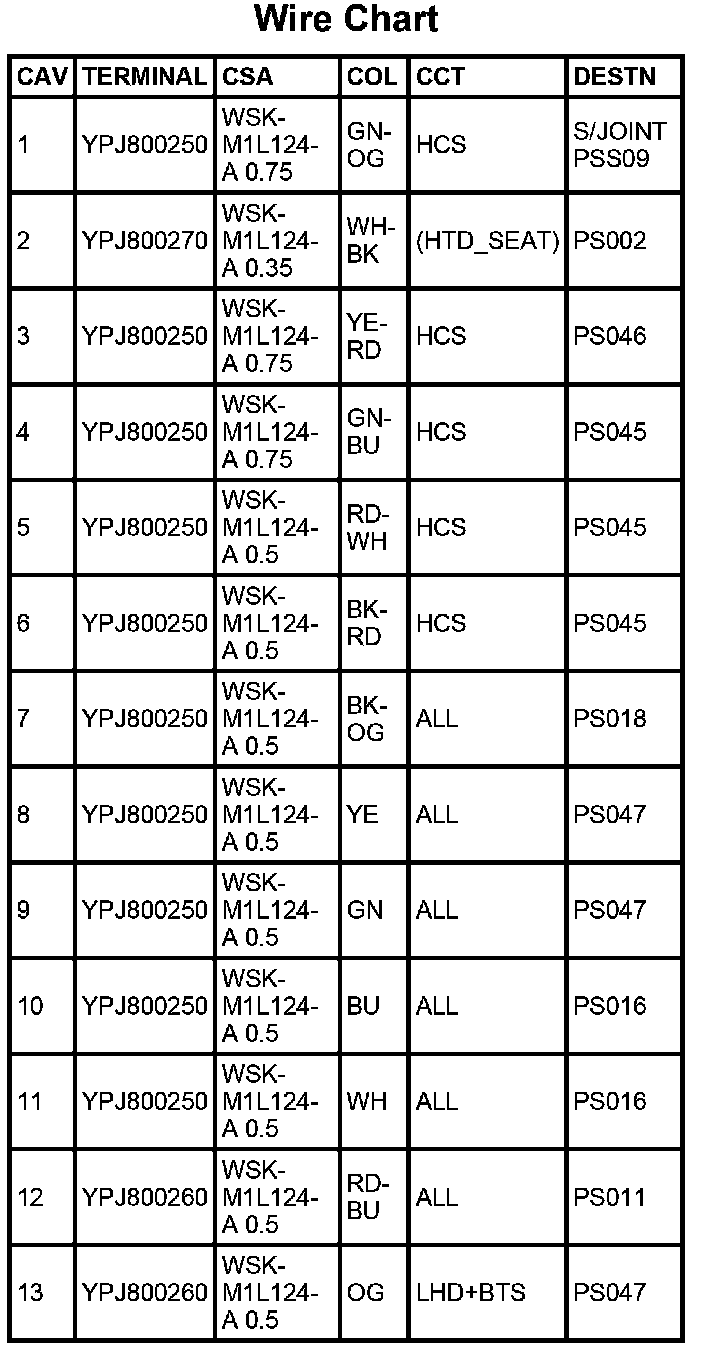

PS001 (Part 1):

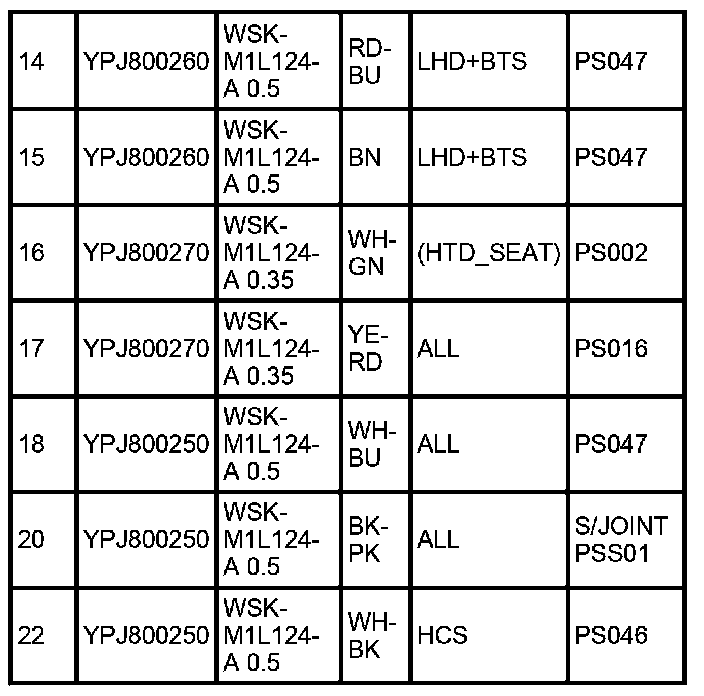

PS001 (Part 2):
PS001 (Part 3):
