Fig. 04.9 (Engine Management: Actuators - Part 1)



Fig. 04.9 (Engine Management: Actuators - Part 1)

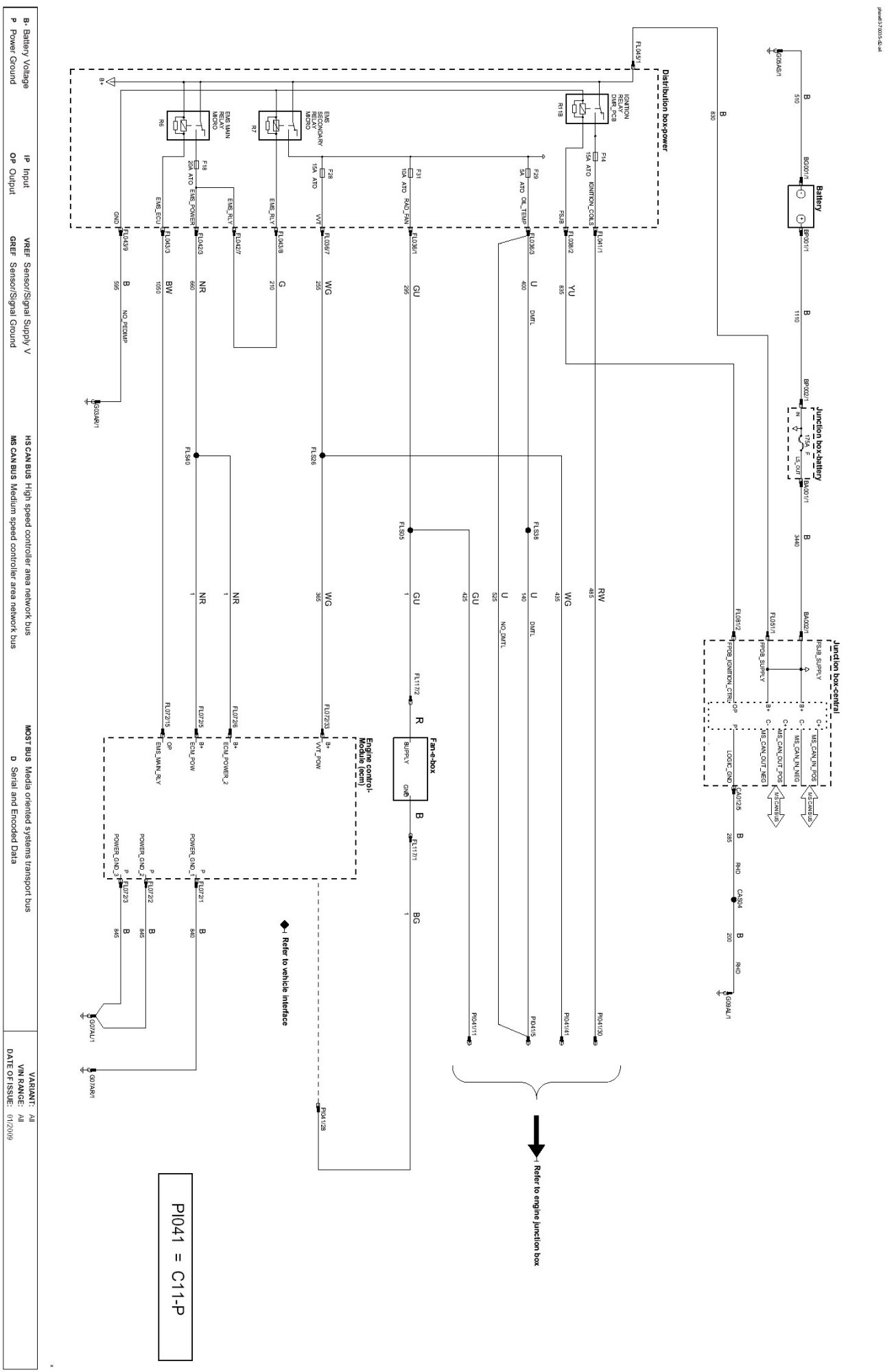

Diagram Figure 04.9:
