Fig. 14.1 (Wash / Wipe System)
Fig. 14.1 (Wash / Wipe System)
Fig. 14.1 (Wash / Wipe System)

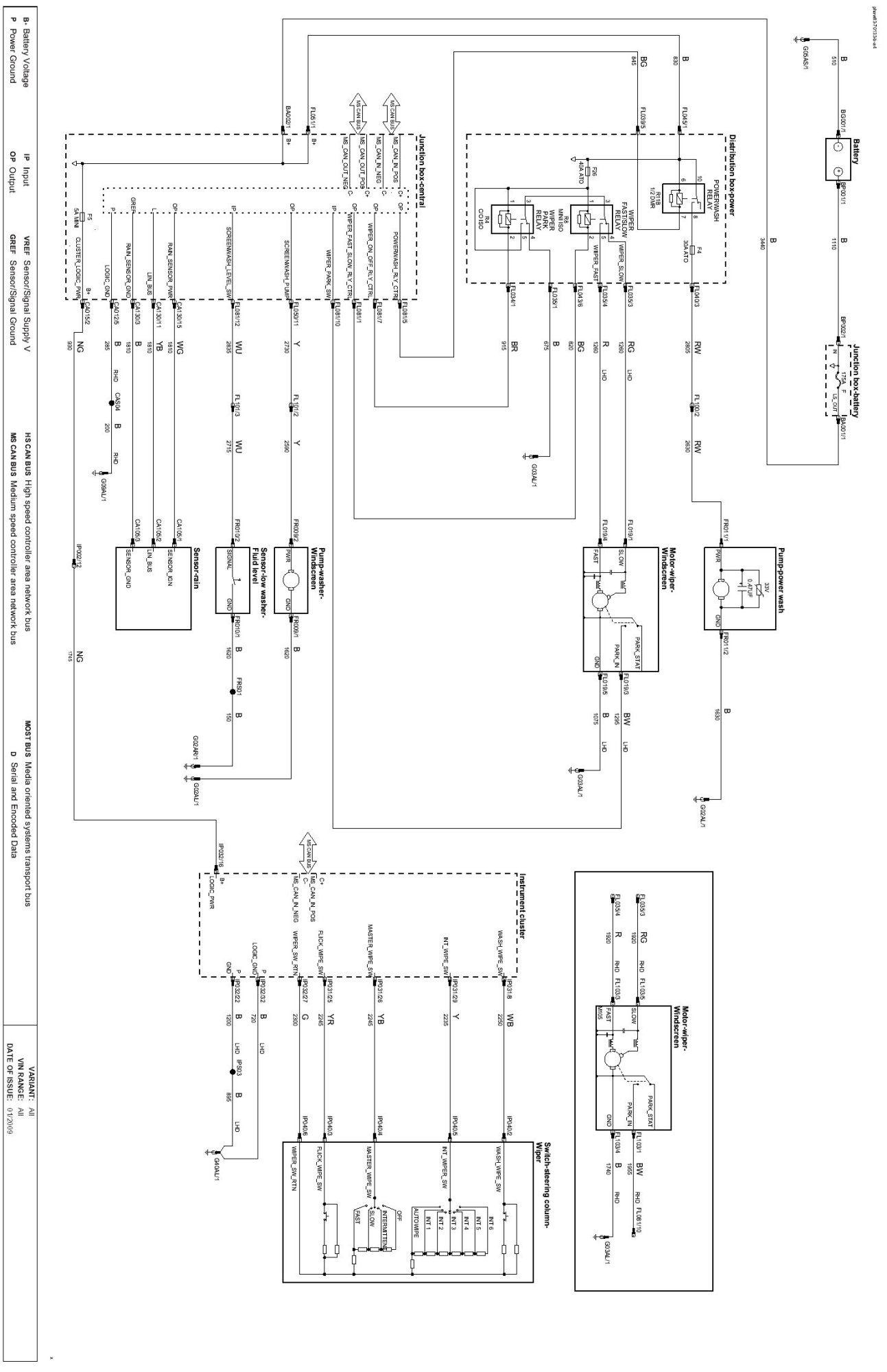

Diagram Figure 14.1:
