Jaguar
>>
2011
>>
XK (X150) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Figure Number
>>
Fig. 16.1 (In-Car Entertainment: Premium)
Fig. 16.1 (In-Car Entertainment: Premium)
Fig. 16.1 (In-Car Entertainment: Premium)

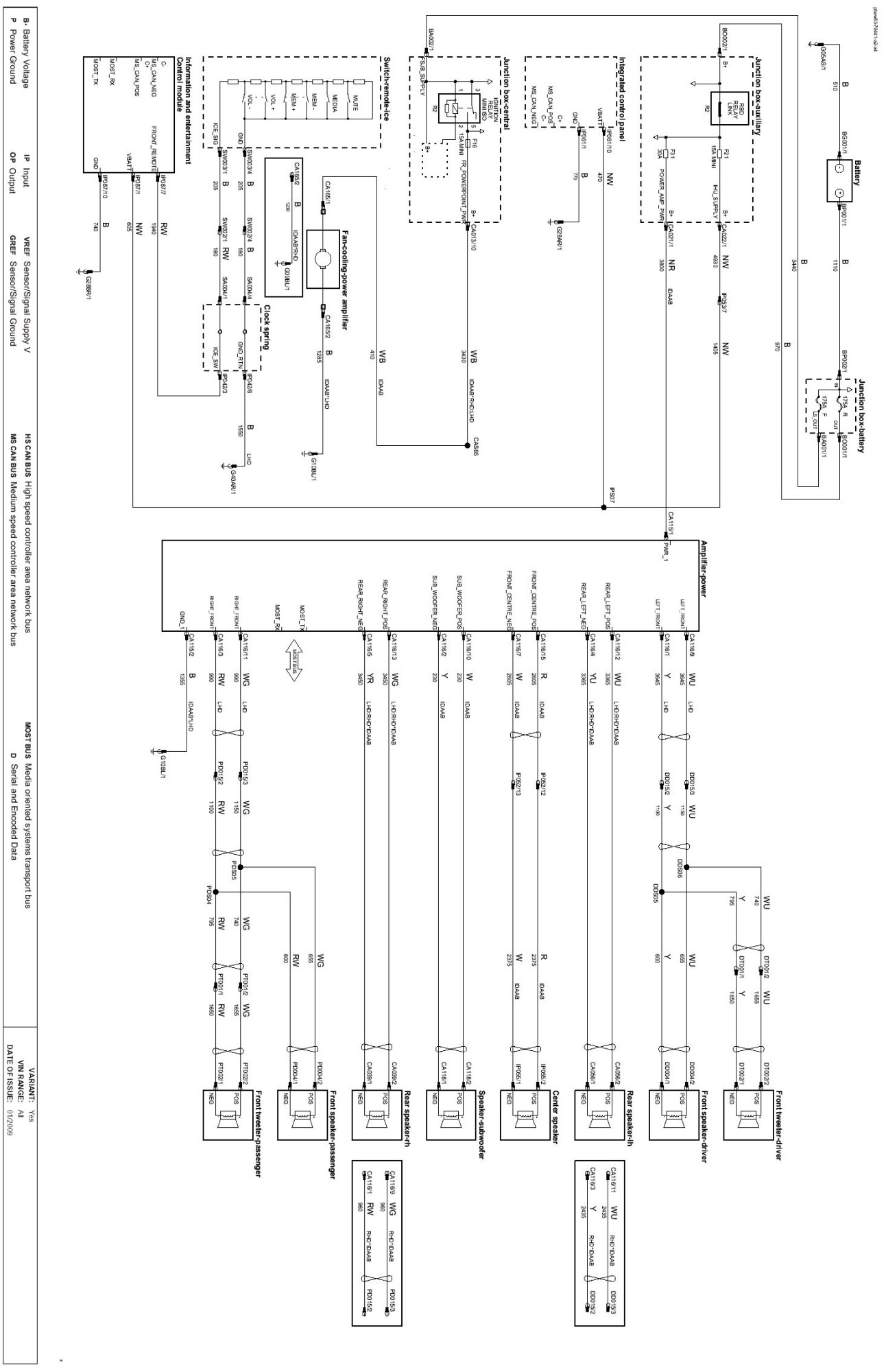

Diagram Figure 16.1:
