Home >> Jaguar >> 2011 >> XK (X150) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Figure Number >> Fig. 16.2 (In-Car Entertainment: Standard)

Fig. 16.2 (In-Car Entertainment: Standard)

Fig. 16.2 (In-Car Entertainment: Standard)

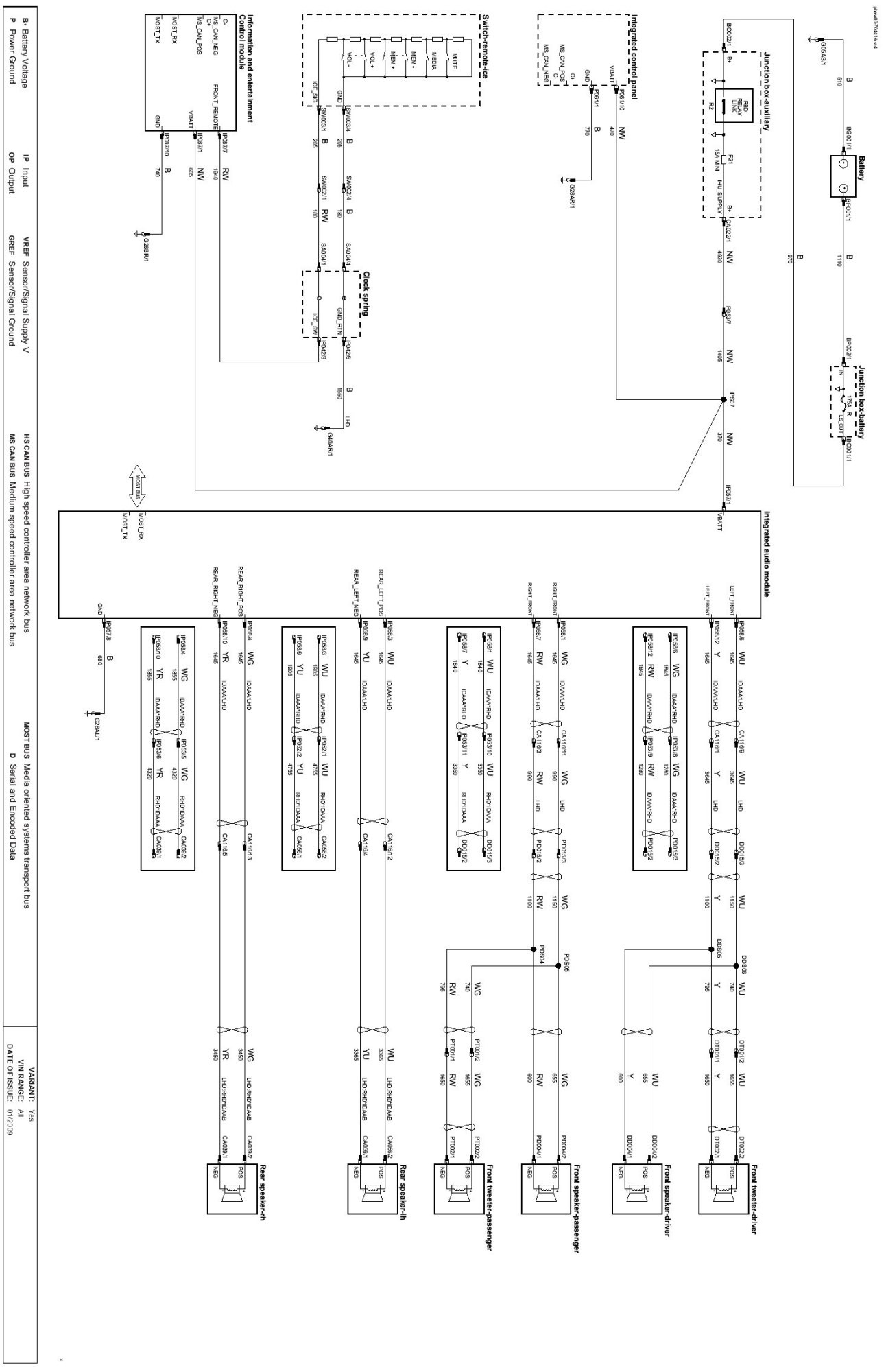

Diagram Figure 16.2:
