Home >> Jaguar >> 2011 >> XK (X150) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Figure Number >> Fig. 18.2 (Air Bags: Coupe)

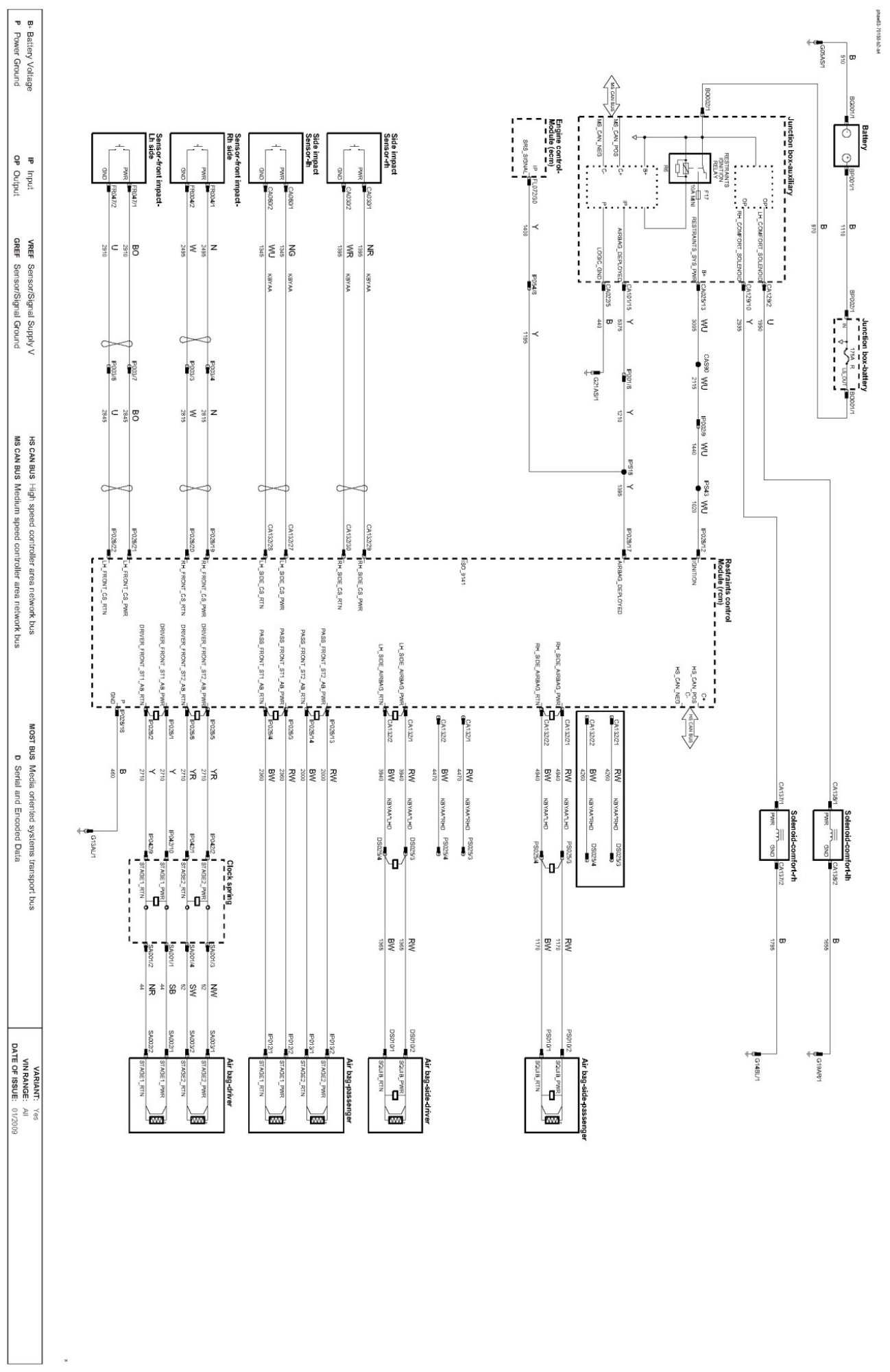

Fig. 18.2 (Air Bags: Coupe)



Fig. 18.2 (Air Bags: Coupe)
