Installation

Engine
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures
For additional information, refer to TAS Symbol Glossary TAS Symbols Glossary

NOTE:
This step requires the aid of another technician.
1 Using a suitable tool, install the engine.

CAUTION: Take extra care when handling the component.
2 Using the special tool, support the engine.

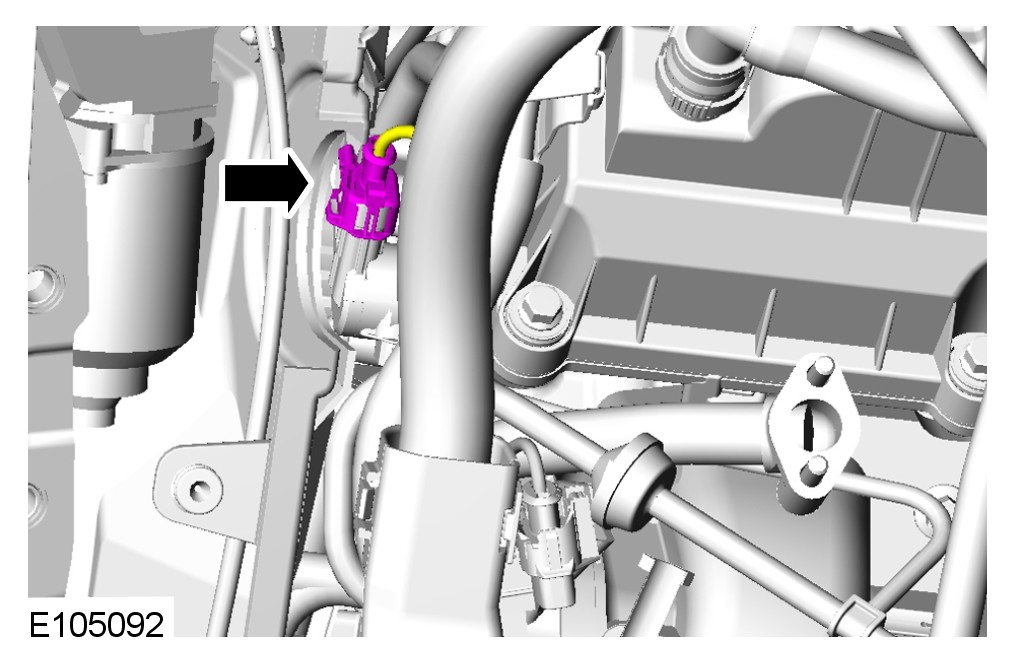

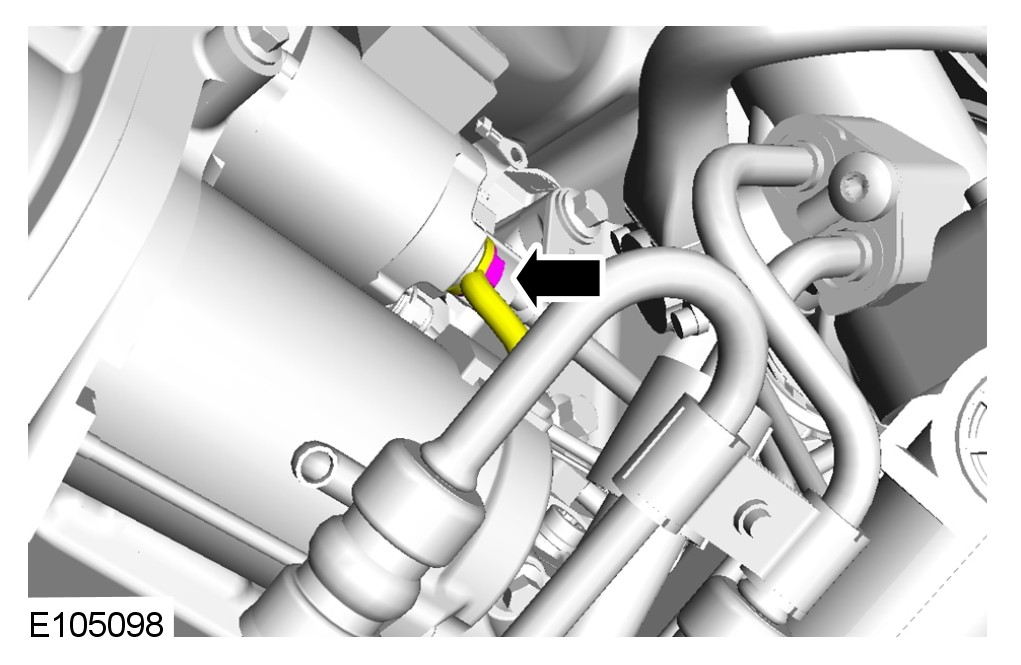

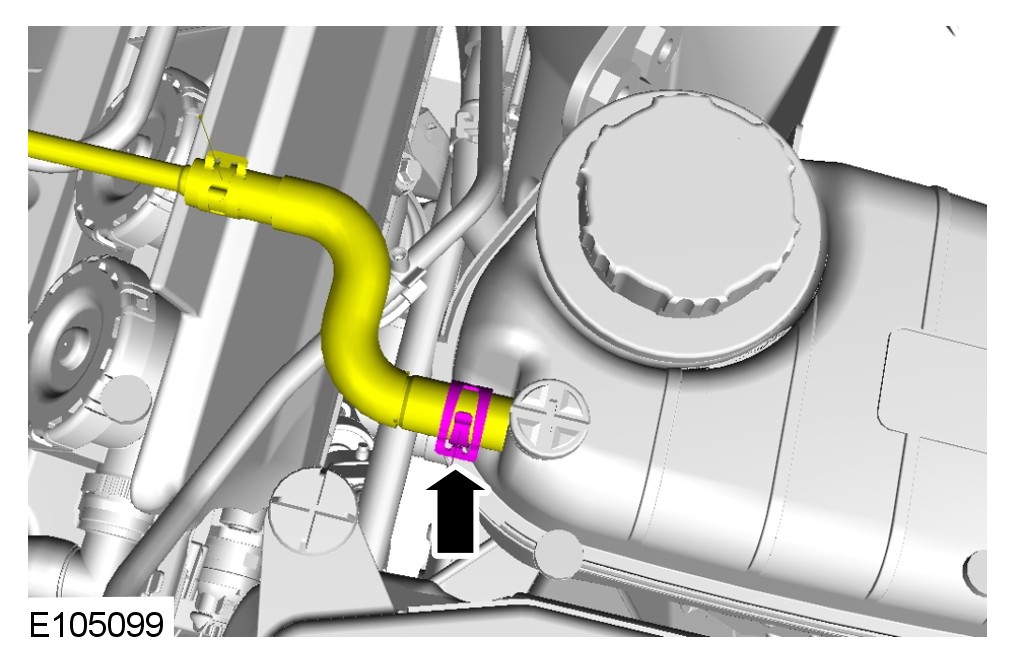

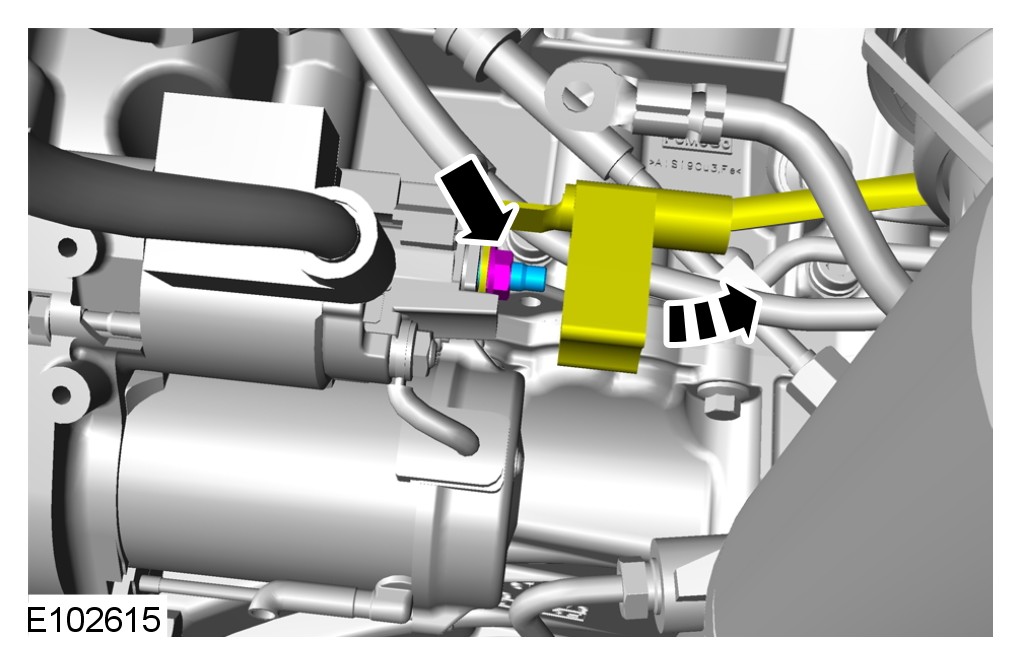

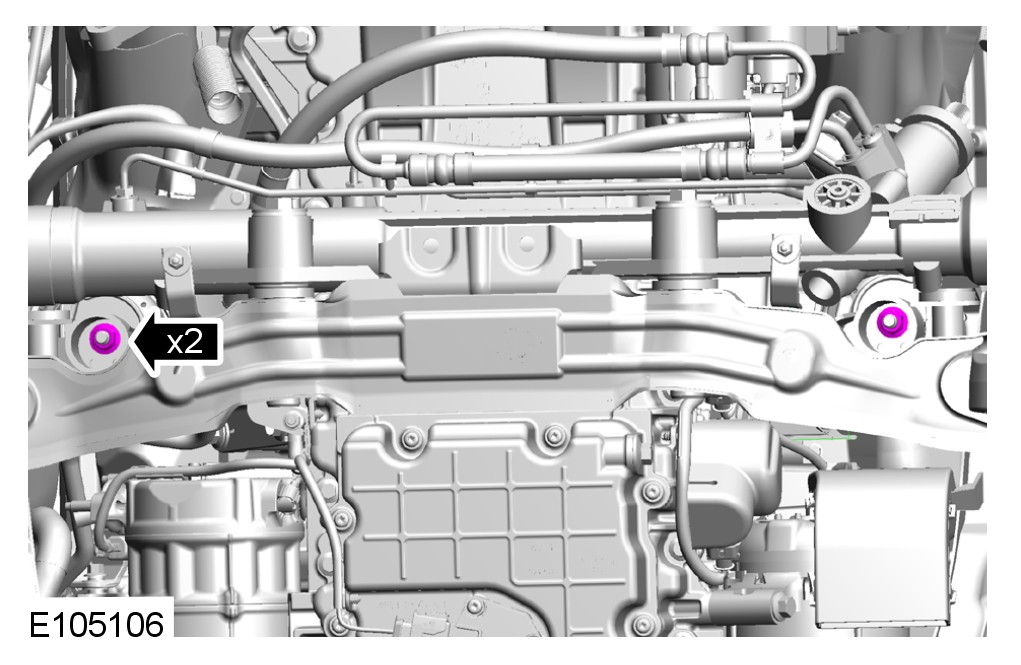

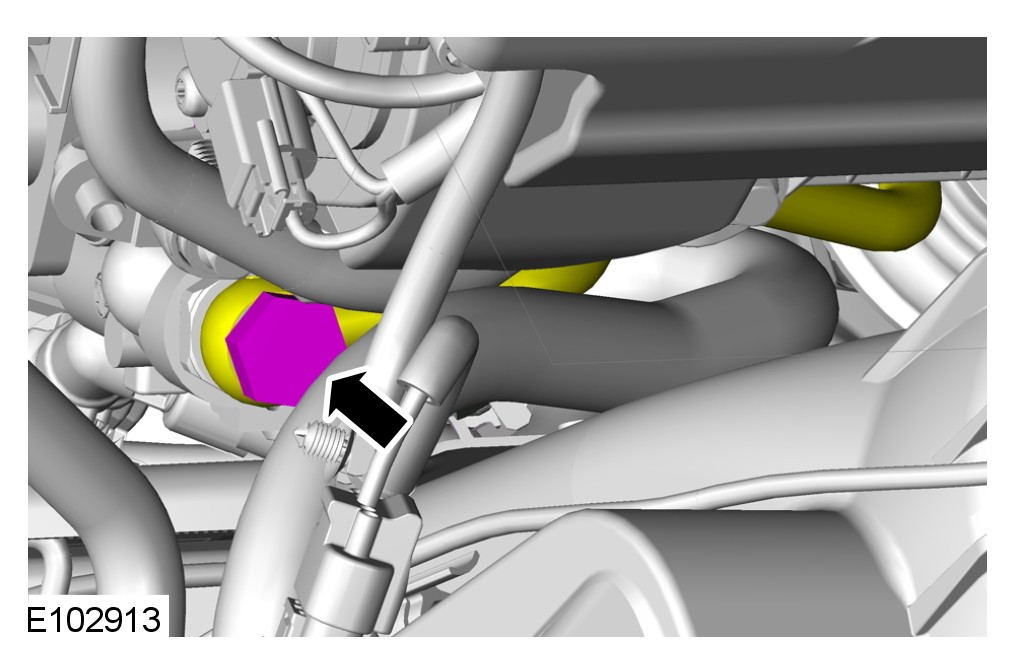

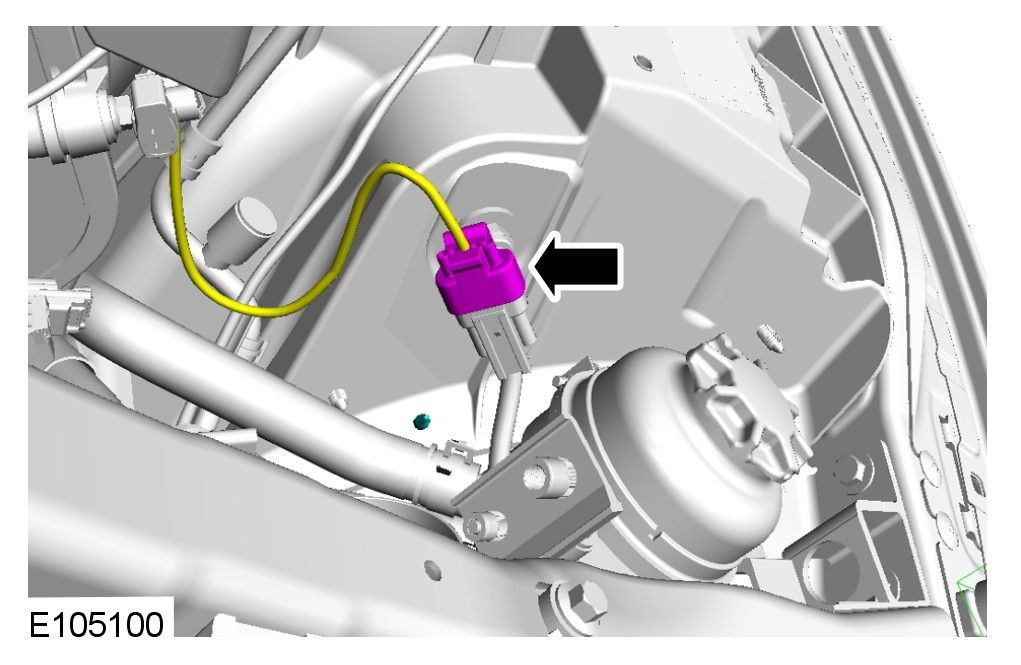

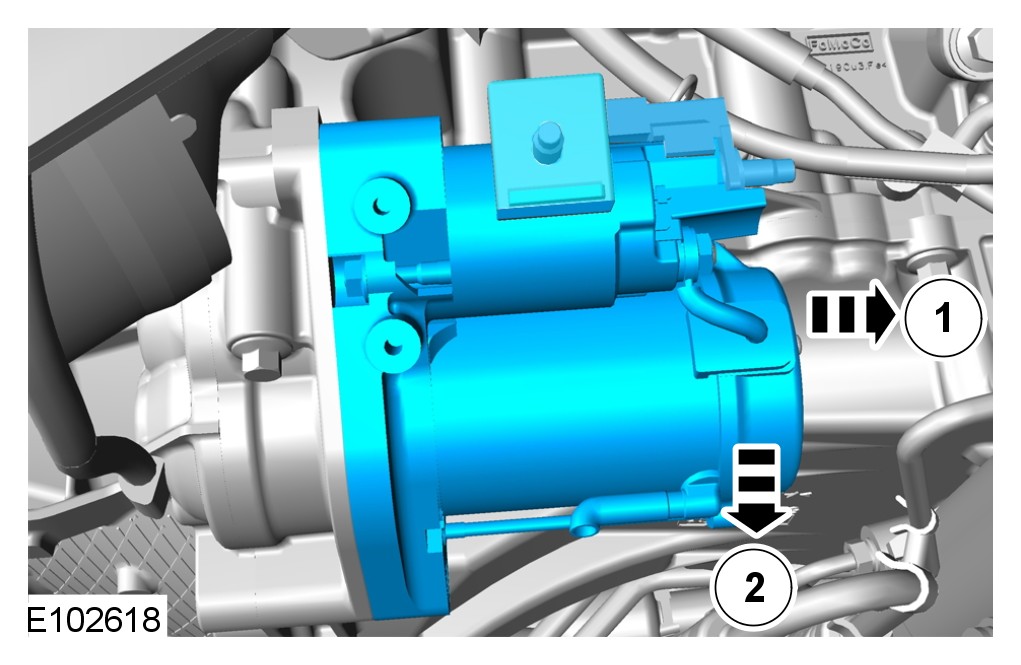

Torque to: 45 Nm

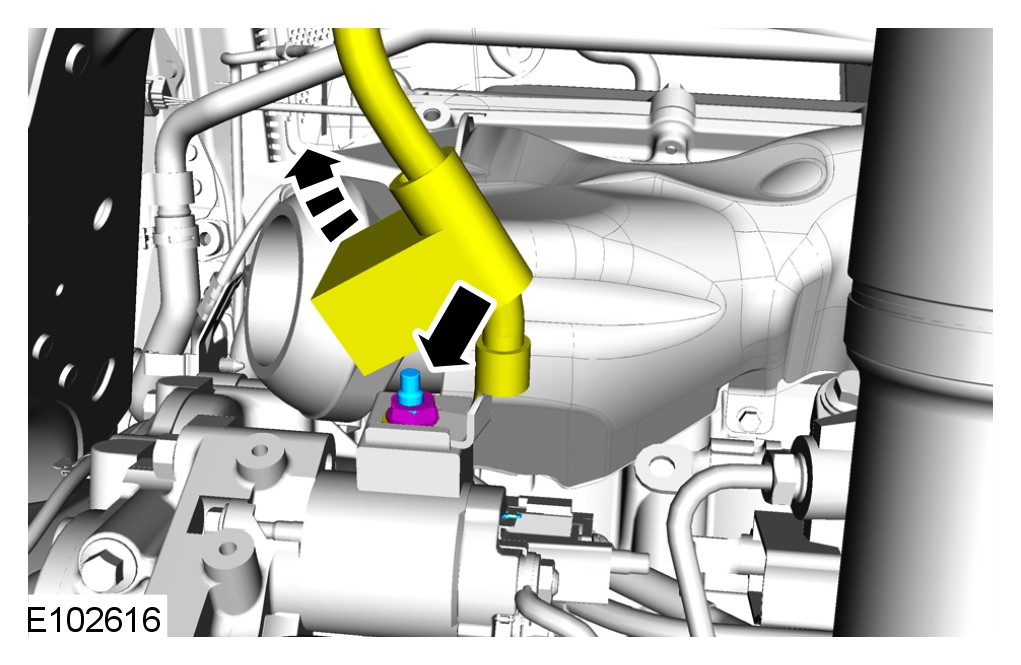

Torque to: 25 Nm

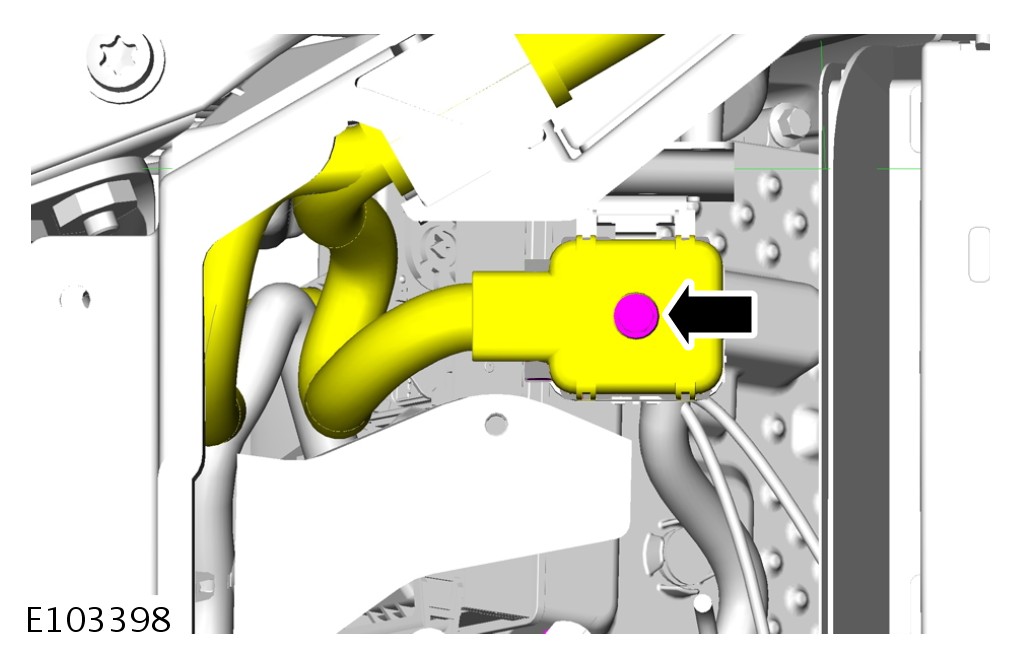

Torque to: 10 Nm

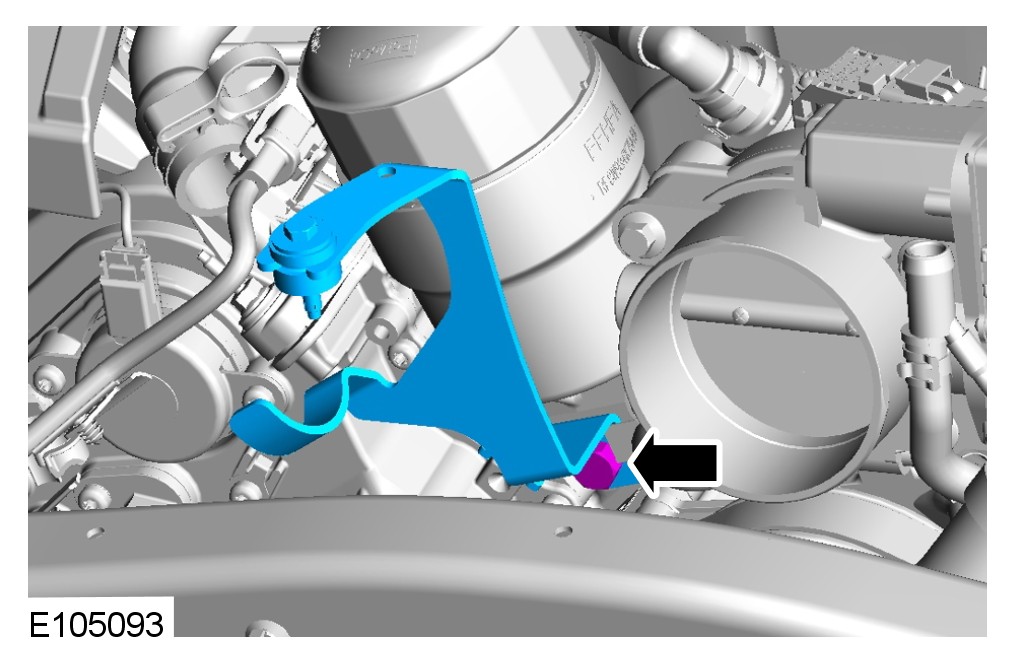

Torque to: 25 Nm

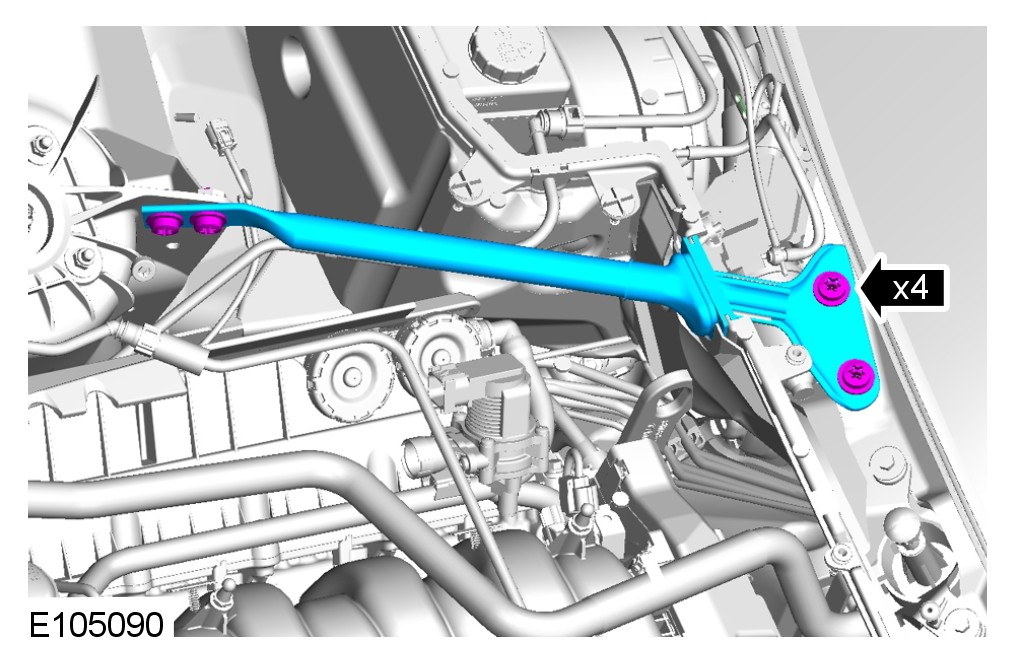

Torque to: 6 Nm

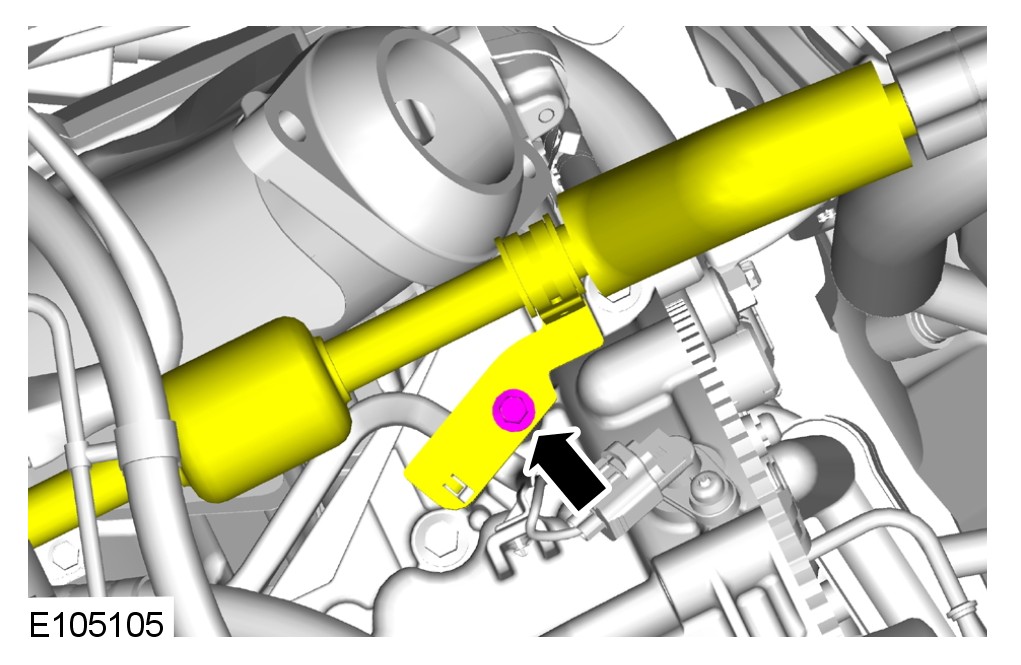

Torque to: 3 Nm

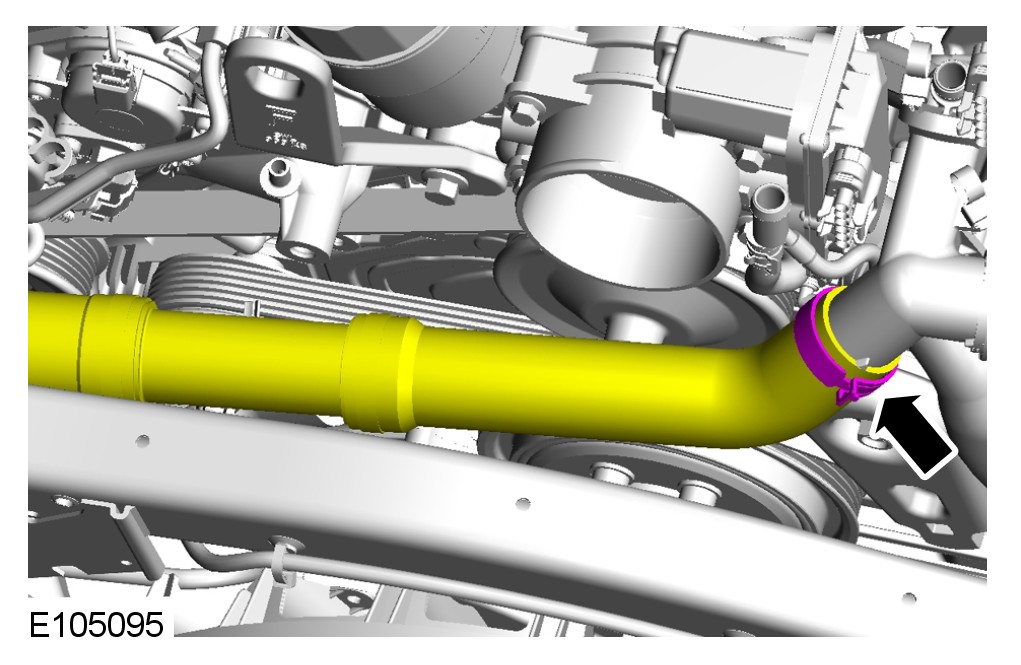

Torque to: 4 Nm

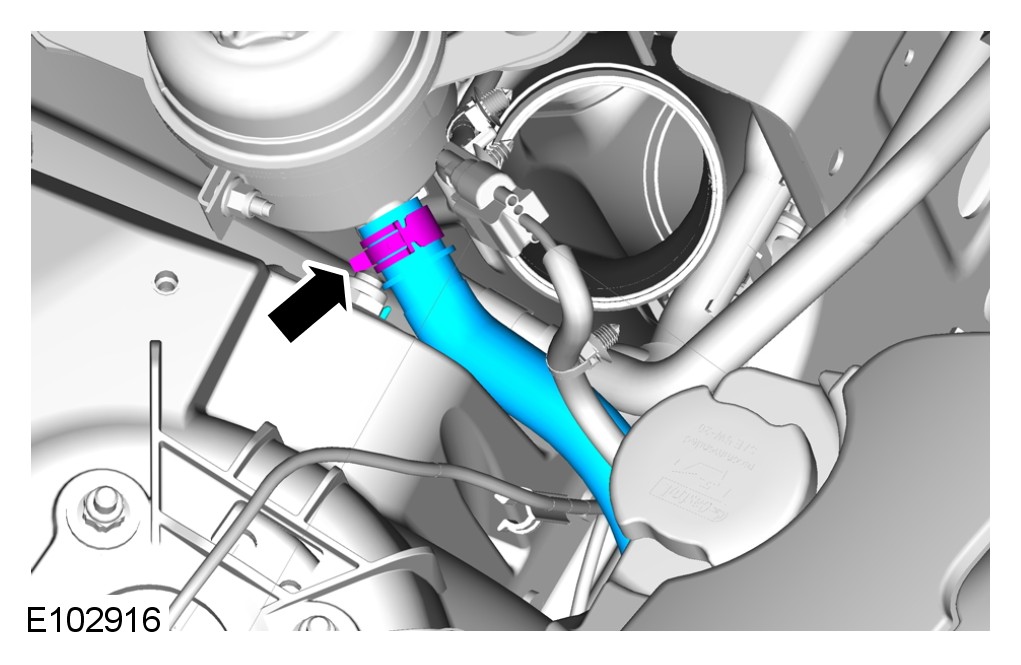

Torque to: 10 Nm

Torque to: 12 Nm

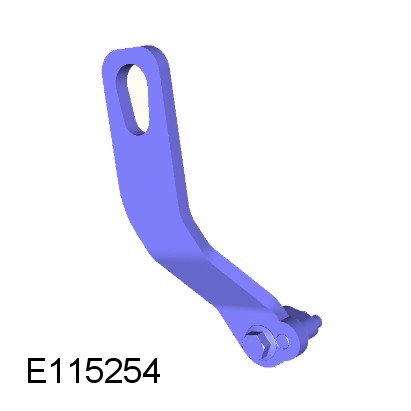

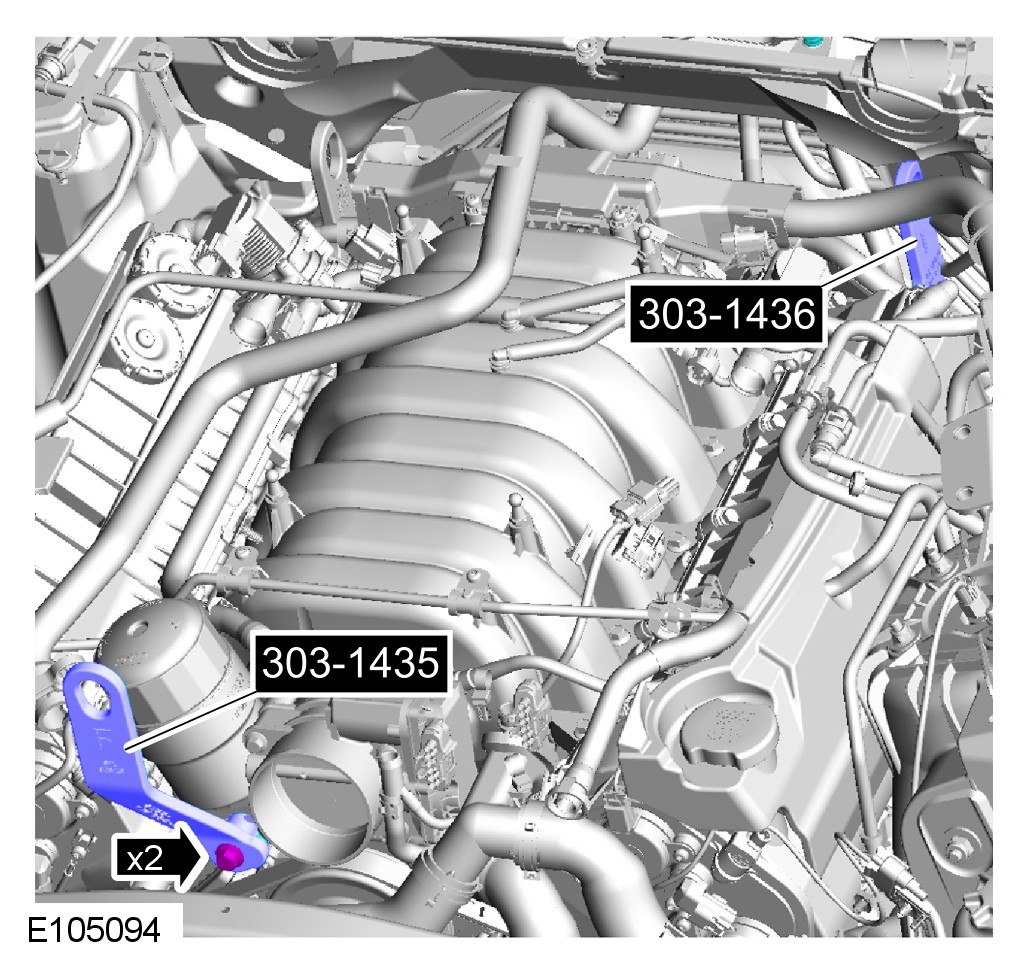

Special Service Tool

Engine Lifting Brackets Rear, 303-1436

Special Service Tool

Engine Lifting Bracket Front, 303-1435

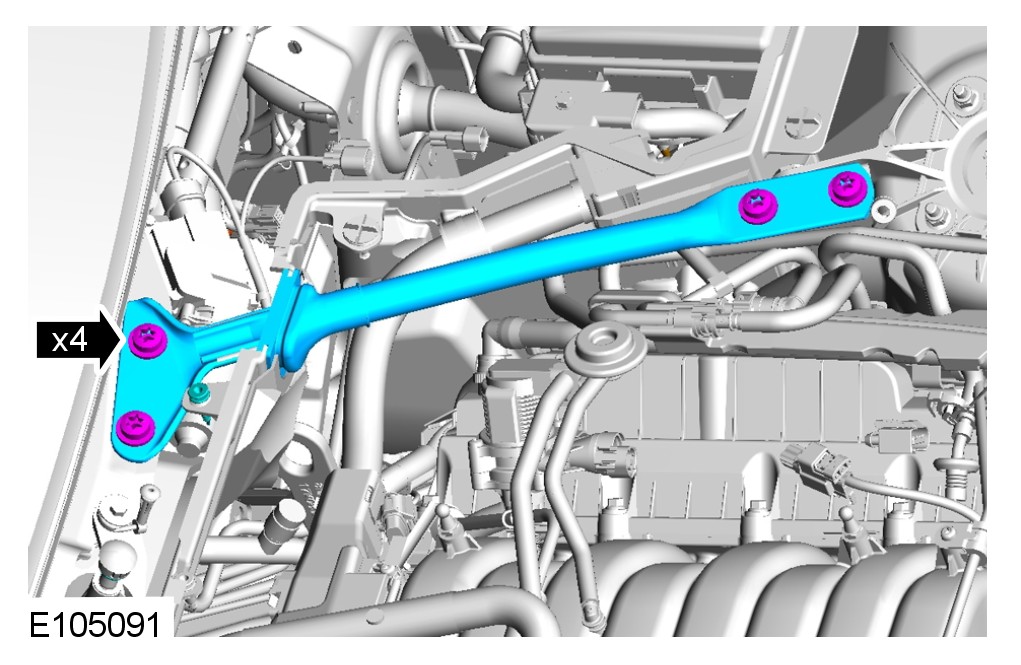

Torque to: 25 Nm

For additional information, refer to Hood Service and Repair

Torque to: 45 Nm

Torque to: 45 Nm
For additional information, refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging Air Conditioning (A/C) System Recovery, Evacuation and Charging
For additional information, refer to Engine Oil Draining and Filling
For additional information, refer to Cooling System Draining and Vacuum Filling Cooling System Draining and Vacuum Filling
For additional information, refer to Transmission Installation
For additional information, refer to Air Cleaner Outlet Pipe T-Connector Air Cleaner Outlet Pipe T-Connector
For additional information, refer to Cowl Vent Screen Service and Repair
For additional information, refer to Battery Disconnect and Connect Battery Disconnect and Connect
