Headlamp: Adjustments

Headlamp Adjustment
1 Align the headlamp beam setting equipment to one headlamp.
2
NOTE:
The headlamp setting is 1.2 % below horizontal and parallel.
Check the headlamp beam alignment.
3 Open the hood.

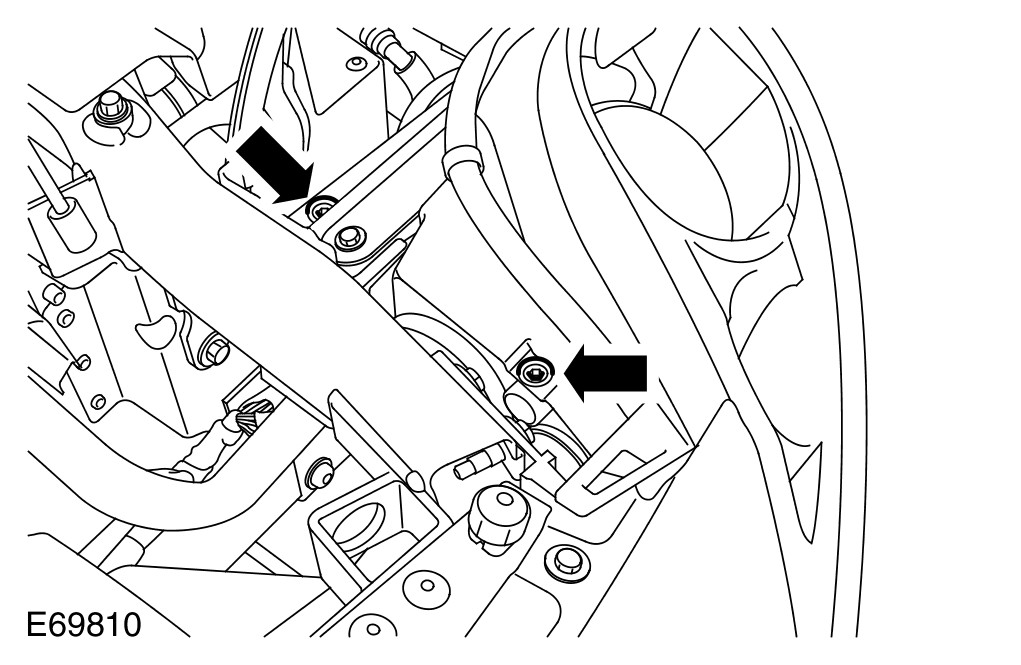

4 Adjust the headlamps with an Allen Key.
5 To adjust the second headlamp, repeat the above procedure.
