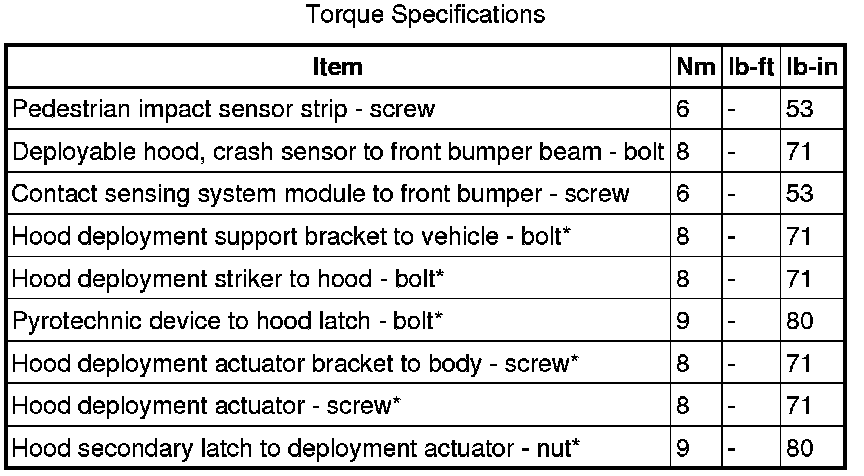

Pedestrian Protection System: Specifications
Specifications
CAUTION: *Refer to Removal and Installation procedures for important information.
