Power Steering System Filling

Power Steering System Filling

WARNING: Make sure to support the vehicle with axle stands.
1 Raise and support the vehicle.
For additional information, refer to Air Deflector Service and Repair

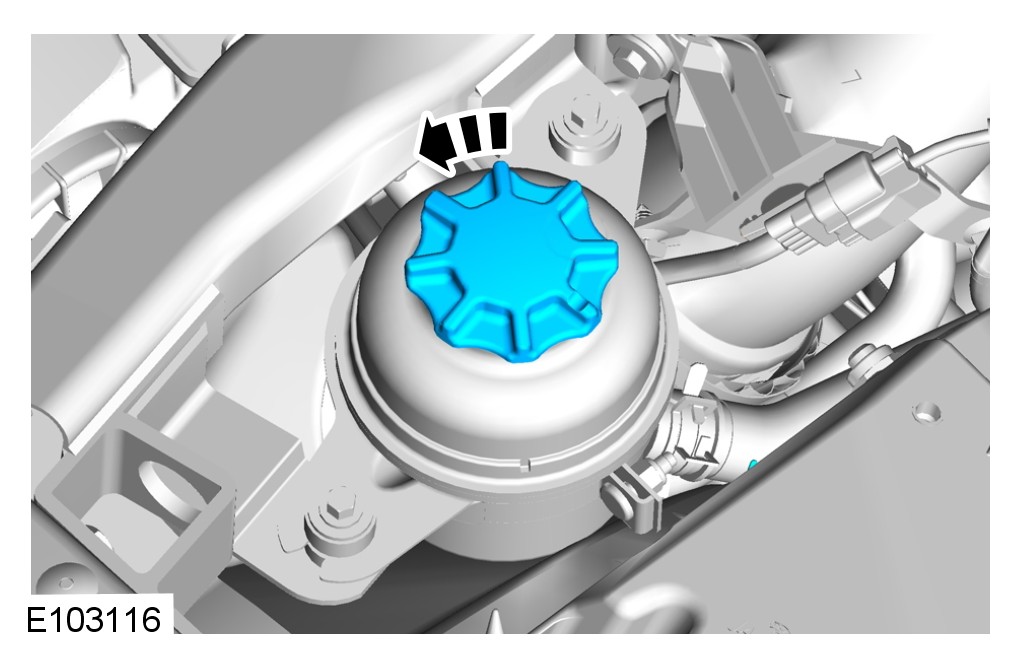

Using a syringe, remove the PAS fluid from the reservoir.

CAUTION: Make sure that the area around the component is clean and free of foreign material.

CAUTION: Be prepared to collect escaping fluids.

NOTE:
Make sure that the component is clean, free of foreign material and lubricant.

Torque to: 20 Nm

CAUTION: Fluid must always be present in the reservoir during bleeding.
Fill the power steering reservoir.

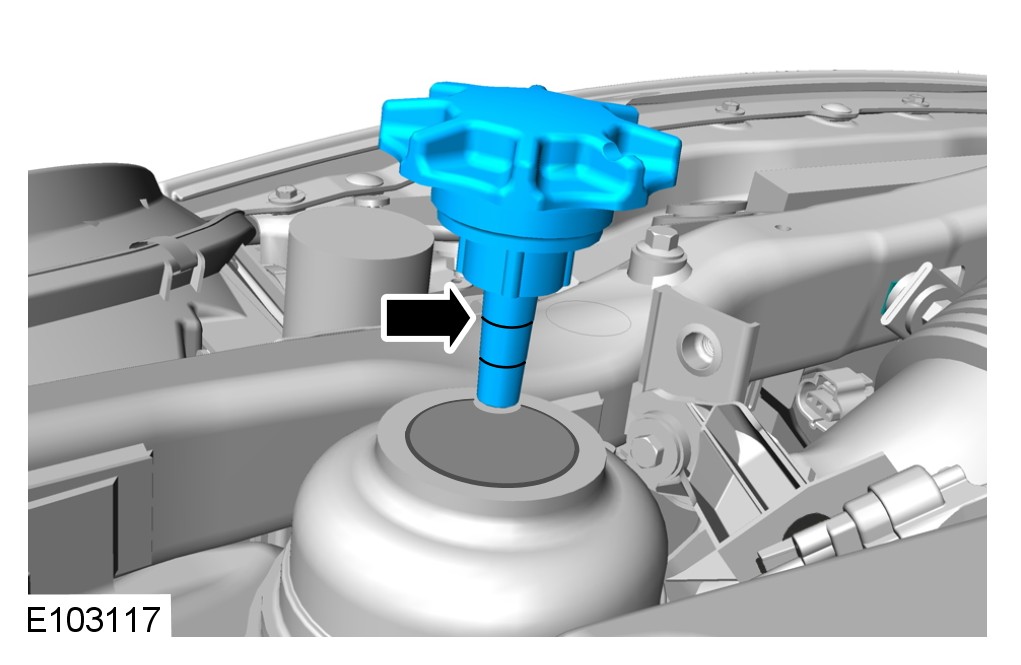

1 Install the vacuum hand pump to the power steering fluid reservoir.

NOTE:
Apply the maximum vacuum possible on the reservoir for 1 minute.
2 Apply a vacuum to the power steering fluid reservoir.
3 Remove the vacuum hand pump from the power steering fluid reservoir.

CAUTION: Fluid must always be present in the reservoir during bleeding.
Fill the power steering reservoir.
Run the engine for 30 seconds.
Turn the steering fully lock-to-lock, stop the engine.
4 Install the vacuum hand pump to the power steering fluid reservoir.

NOTE:
Apply the maximum vacuum possible on the reservoir for 1 minute.
5 Apply a vacuum to the power steering fluid reservoir.
6 Remove the vacuum hand pump from the power steering fluid reservoir.

CAUTION: Fluid must always be present in the reservoir during bleeding.
Fill the power steering reservoir.
Run the engine for 30 seconds.
Turn the steering fully lock-to-lock, stop the engine.
7 Install the vacuum hand pump to the power steering fluid reservoir.

NOTE:
Apply the maximum vacuum possible on the reservoir for 1 minute.
8 Apply a vacuum to the power steering fluid reservoir.
9 Remove the vacuum hand pump from the power steering fluid reservoir.
