Windshield Washer Pump: Service and Repair

Windshield Washer Pump

Removal
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Remove the RH fender splash shield. For additional information, refer to Fender Splash Shield Fender Splash Shield
3 Drain the washer reservoir fluid.
- Position a container to collect the fluid.

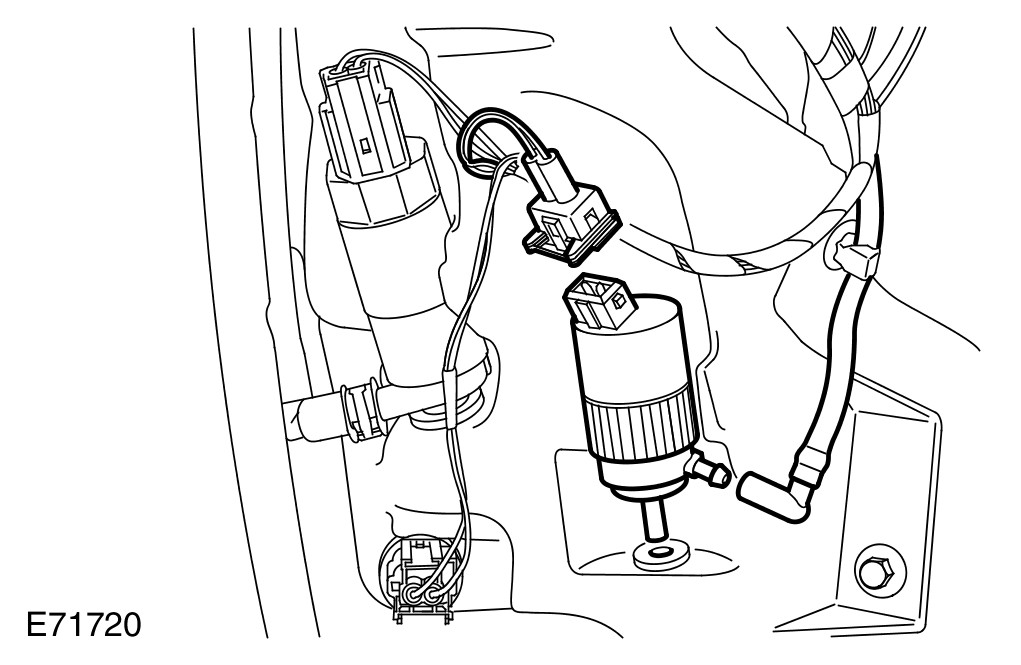

4 Remove the windshield washer pump.
- Disconnect the washer jet hose.
- Disconnect the electrical connector.




5 Remove and discard the seal.

Installation
1 Install a new seal.
2 Install the windshield washer pump.
- Connect and secure the electrical connector.
- Connect the washer jet hose.
3 Install the fender splash shield. For additional information, refer to Fender Splash Shield Fender Splash Shield
4 Refill the washer reservoir.
