Jaguar
>>
2012
>>
XJ (X351) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oxygen Sensor
>>

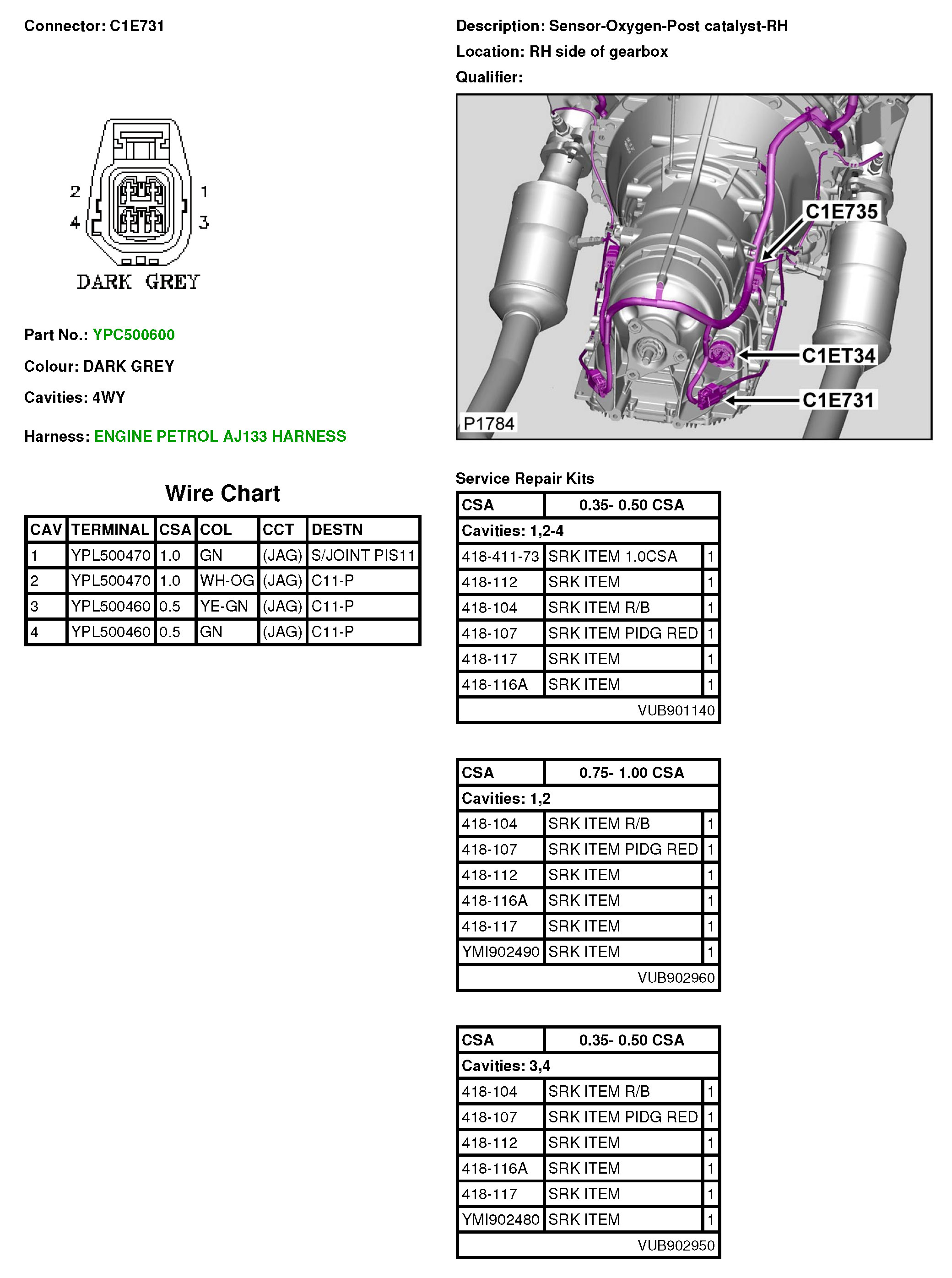

C1E731 Sensor-Oxygen-Post Catalyst-RH
C1E731 Sensor-Oxygen-Post Catalyst-RH
C1E731
